CPE Configuration 38
Model 3231 User Manual 4 • Web Interface Configuration
CPE Configuration
This section describes how to configure the CPE unit through the web interface. To get to the CPE Configu-
ration page in the Web GUI, click on G.SHDSL > CPE Configuration on the left navigation menu.
Note Use the LCD panel menu to configure basic options. See “CPE Config” on
page 21 for information on configuring the CPE through the LCD menu.

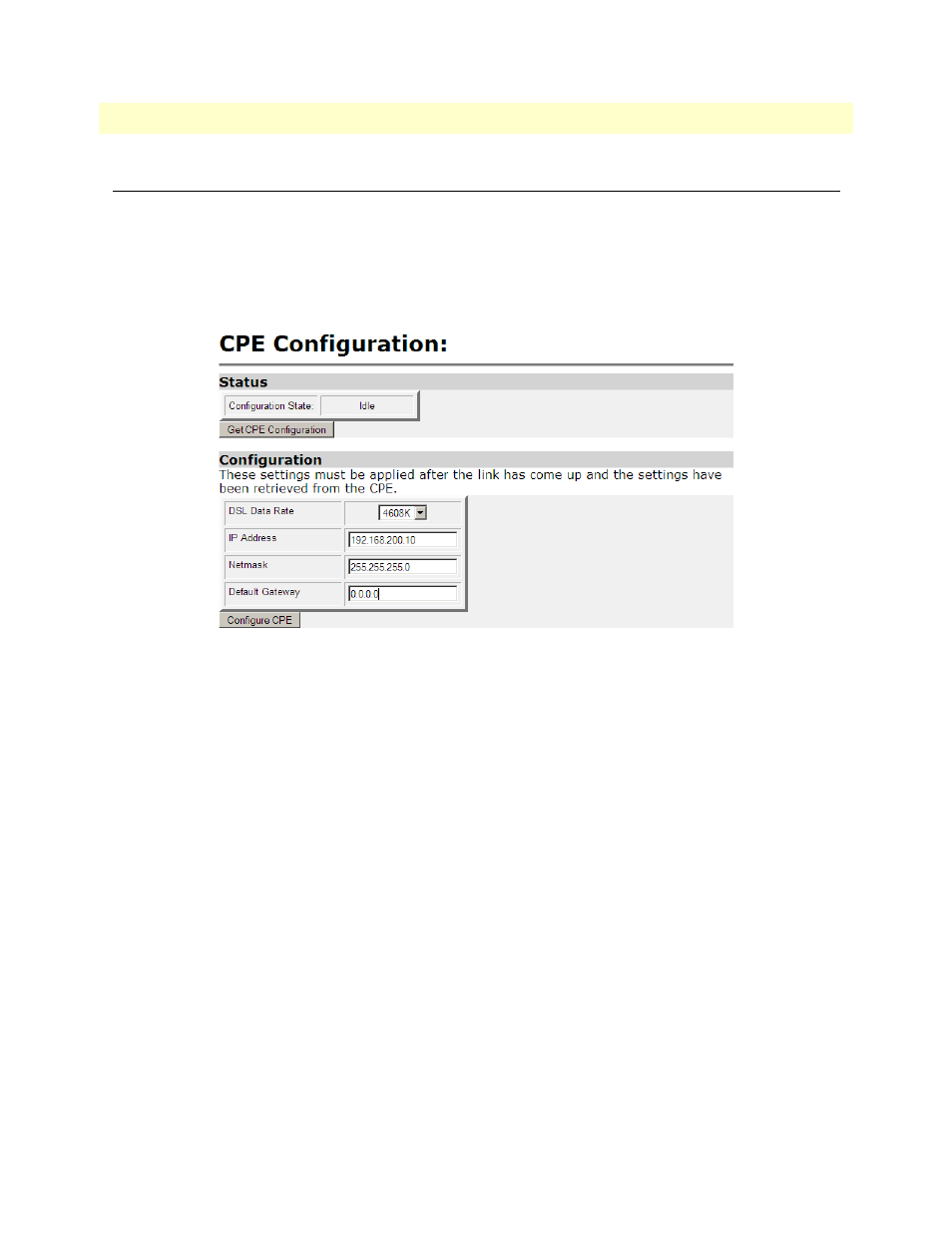

Figure 14. Configuring the CPE in the Web GUI
To configure the CPE through the Web GUI:
1. Click Get CPE Configuration.
2. Wait for the Configuration State to reach Idle before making configuration changes to the CPE. Other-
wise, your changes will not save.
3. Select the line rate from the DSL Data Rate drop-down menu.
4. Enter the IP Address for the CPE unit.
5. Enter the Netmask for the CPE unit.
6. Click Configure CPE.
