Using the LCD Menu 20
Model 3231 User Manual 2 • Initial Configuration

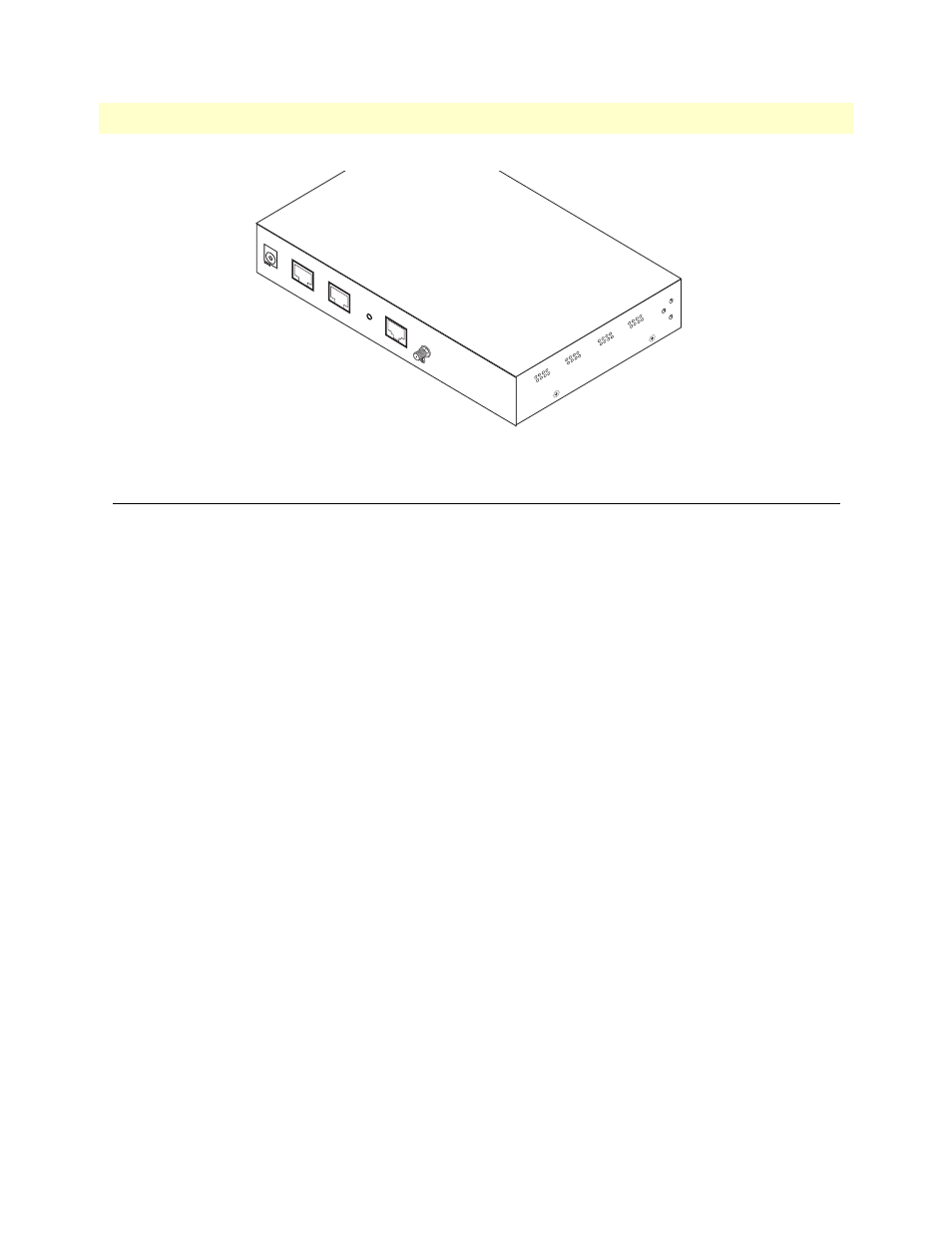

Figure 4. Rear view of 3231
Using the LCD Menu
The following sections are options in the top level menu on the LCD interface:
• “G.SHDSL” on page 21
Use this menu to configure the G.SHDSL link including line rate, I-bits, mode, annex, transmit gain, and
the ethernet link.
• “LAN” on page 21
Use this menu to configure the LAN IP address, netmask, and default gateway.
• “CPE Config” on page 21
Use this menu on the CO unit to configure the CPE unit.
• “STP (Spanning Tree Protocol)” on page 22
Use this menu to configure STP. (STP prevents loops from occurring in a network).
• “Syslog” on page 22
Use this menu to configure the system, including the host IP address, facility settings, system password,
alarms, saving the current configuration, and the LCD screen contrast.
• Password
If a password is set, a user must enter the password to access the LCD submenus. Enter an empty string to
remove the password.
• Clear Alarms
Clear DSL, Ethernet, and any other alarm indications.
• Save Config
Save the current configuration to flash.
• LCD Contrast
Adjust the contrast of the LCD screen. Use the Left and Right Arrown keys to adjust the contrast, then
press the Enter key to save your changes.
Ethernet
Reset
Line
Power
5V , 1A
Console
