Figure 33 – ParaBody 425103 User Manual
Page 30
30
STEP 33

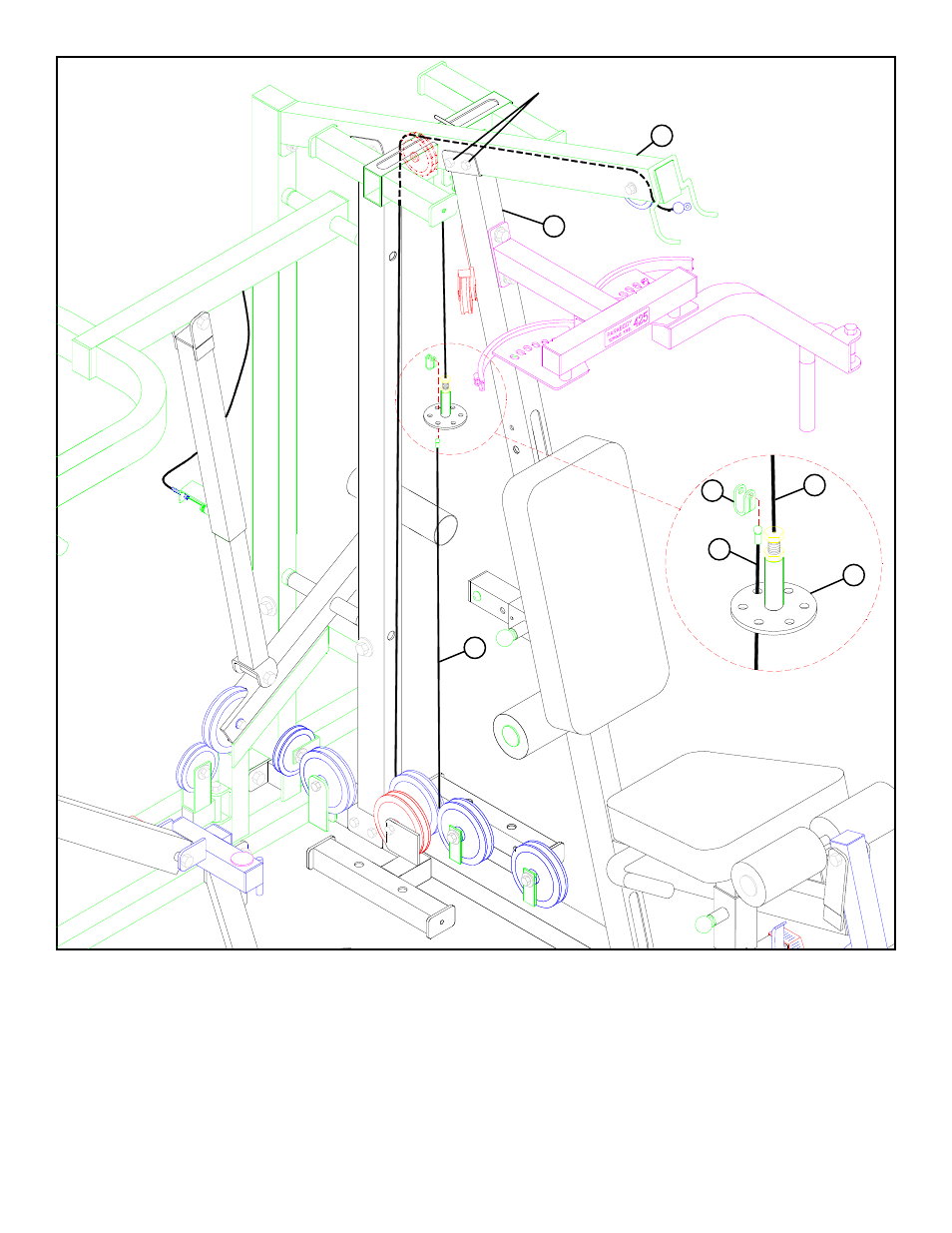

FIGURE 33
• To assemble the LAT CABLE (99) follow the cable routing as shown and use the following steps:
• Remove the two bolts in the FRONT UPRIGHT (25) and TOP BOOM (17) connection.
• Route the LAT CABLE (99) as shown in FIGURE 33. (Remove pulleys for ease of installation.)
• Run the LAT CABLE (99) through one of the holes in the D-RING (7) and attach one KEYHOLE CLEVIS (66) to the end of the
LAT CABLE (99). See FIGURE 33.
• Replace and SECURELY tighen the FRONT UPRIGHT (25) and TOP BOOM (17) connection and any pulleys from the previous
step. (NOTE: Make sure the LAT CABLE runs over the top of the bolts in the top boom.)
NOTE: REMOVE BOLTS FOR
CABLE INSTALLATION
25
17
99
7
WEIGHT
STACK
CABLE
66
99
102
