11

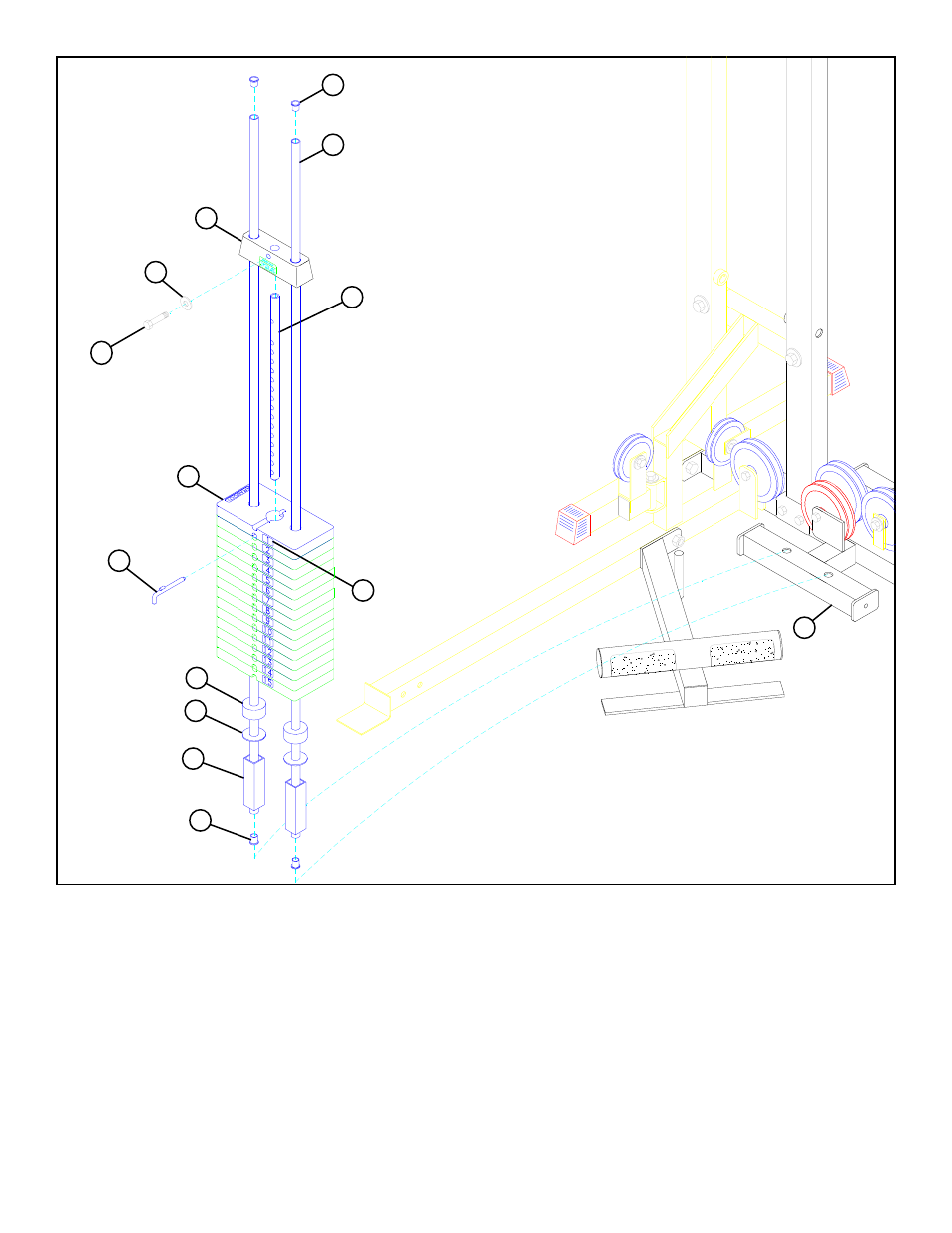

FIGURE 11
STEP 11
• Insert two GUIDE RODS (36) into the BASE (1) as shown on FIGURE 11. (NOTE: Lubricate GUIDE RODS (36) with
silicon or teflon spray available at most hardware stores.)
• Slide two 1-1/4 SQ. X 4-7/8” TUBES (34), two 3/4” WASHERS (71), and two WEIGHT STACK CUSHIONS (70) - IN THAT
ORDER - down over the GUIDE RODS (36).
• SECURELY assemble the SELECTOR SHAFT (73) to the HEAD PLATE (72) using one 3/8 X 1-1/4” BOLT (83) and one 3/8”
WASHER (91).
• Using EXTREME CARE slide all fifteen WEIGHT PLATES (105) down over the GUIDE RODS (36) on to the WEIGHT STACK
CUSHIONS (70). Make sure that the keyholes of the WEIGHT PLATES (105) are all facing the right way.
• Insert four CAP PLUGS (106) into the top and bottom ends of the GUIDE RODS (36) as shown in FIGURE 11.
• Slide the head plate assembly down over the GUIDE RODS (36) onto the weight stack.
• Attach the WEIGHT STACK LABELS (104) to the weight stack. Also insert the WEIGHT STACK PIN (75) into the first
WEIGHT PLATE (105) of the weight stack.
106
36
105
1
73
91
75
104
70
71
34
83 3/8 X 1-1/4”
72
106
