Appendix D
Voice Communication Samples
The chapter shows you the concept and command to help you configure your IP PBX System through
sample configuration. And provide several ways to make calls to desired destination in IP PBX. In this
section, we’ll lead you step by step to establish your first voice communication via web browsers
operations.
IP Phone and Wi-Fi Phone register to IPX-300W
In the following samples, we’ll introduce IP Phone and Wi-Fi Phone register to IP PBX applications.

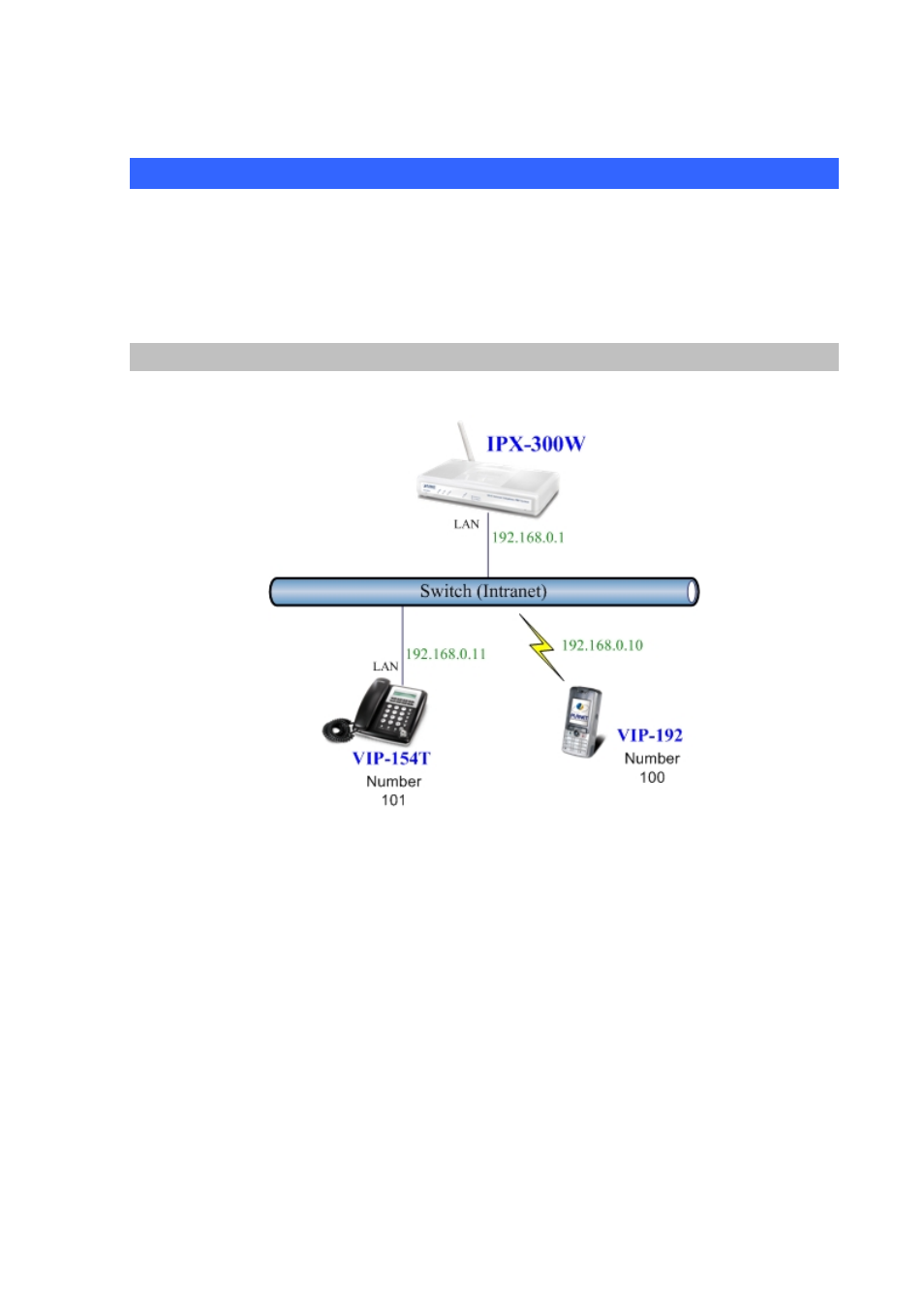

Figure D-1. Topology of instruction example
¾ Machine Configuration:
STEP 1:
Please log in IP PBX via web browser and browse to “Network Setup -> WLAN Setting”
configuration menu. Enable the WLAN and setup the related configuration. The sample configuration
screen is shown below:
