Connecting to a Cable Box or
Satellite Receiver
Option 1
If your Cable Box/Satellite Receiver
has only an antenna output socket
(RF OUT or TO TV),
see ‘Basic Recorder Connections -
Connecting the antenna cables’ for
details.

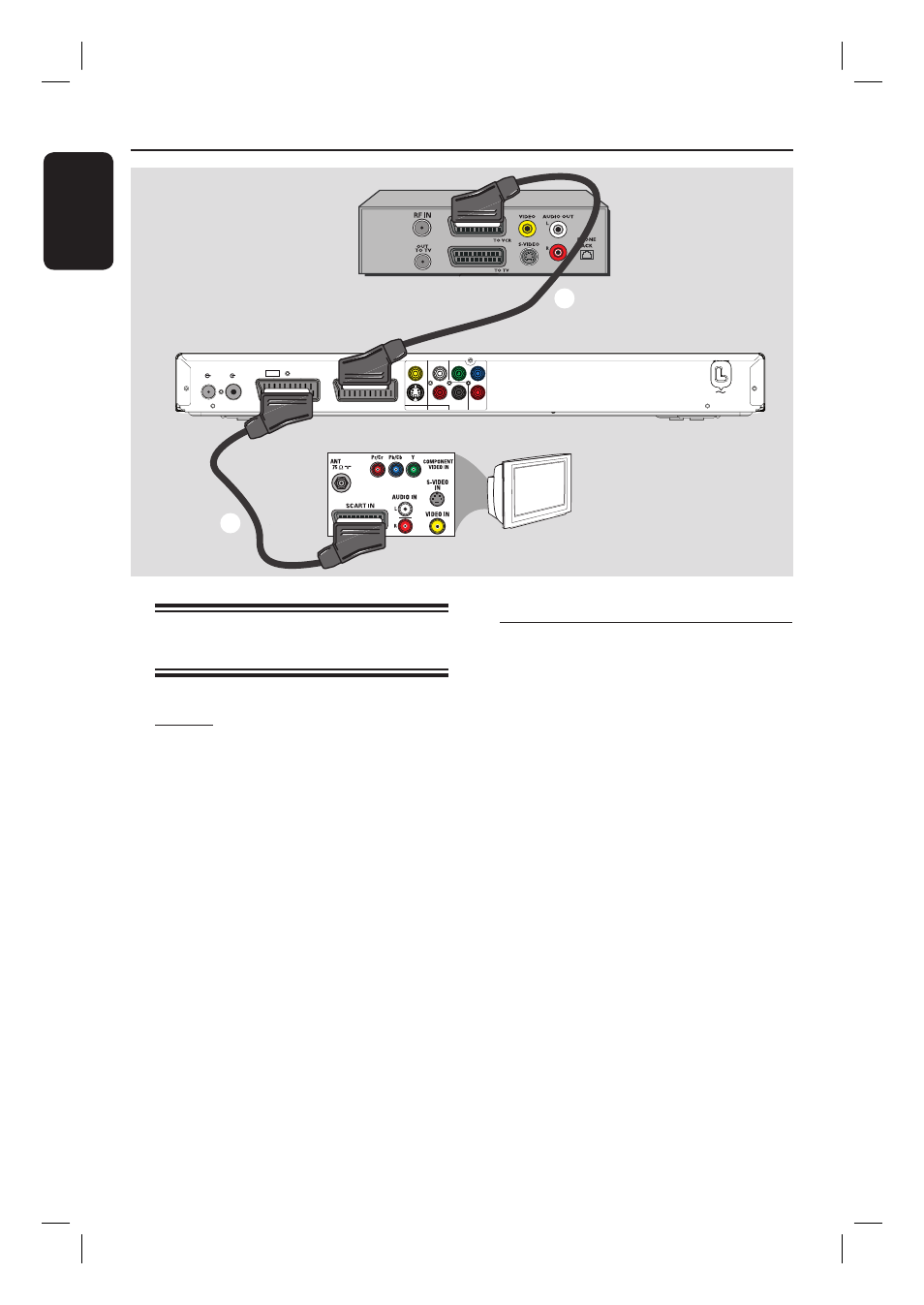

Option 2 (as shown on the above illustration)
If your Cable Box/Satellite Receiver
has a Scart output socket
A
Keep the existing antenna connection
from the Cable Box/Satellite Receiver to
your TV.
B
Connect a scart cable (supplied) from the
EXT1 TO TV socket on the recorder
to the corresponding SCART socket on
the TV.
C
Connect another scart cable (not
supplied) from the EXT2-TO VCR/
SAT socket on the recorder to the Scart
socket (usually labelled as TV OUT or
TO VCR) on the Cable Box/ Satellite
Receiver.
Helpful Hint:
– If your TV is connected to the recorder via
the COMPONENT VIDEO (Y Pb Pr) sockets,
then connect the external cable box/satellite
receiver to the EXT1 TO TV socket.
COAXIAL
DIGITAL OUT
CVBS OUT
S-VIDEO OUT
VIDEO OUT
AUDIO OUT
AUDIO
ANTENNA-IN
TV-OUT
TO TV
EXT
1
TO VCR/SAT
EXT
2
MAINS
PB
PR
Y
R
L
TV
B
C
Step 2: Optional Connections
Cable Box /
Satellite Receiver
