ProForm DVDR3570H - Manual (Page 17)

English
17

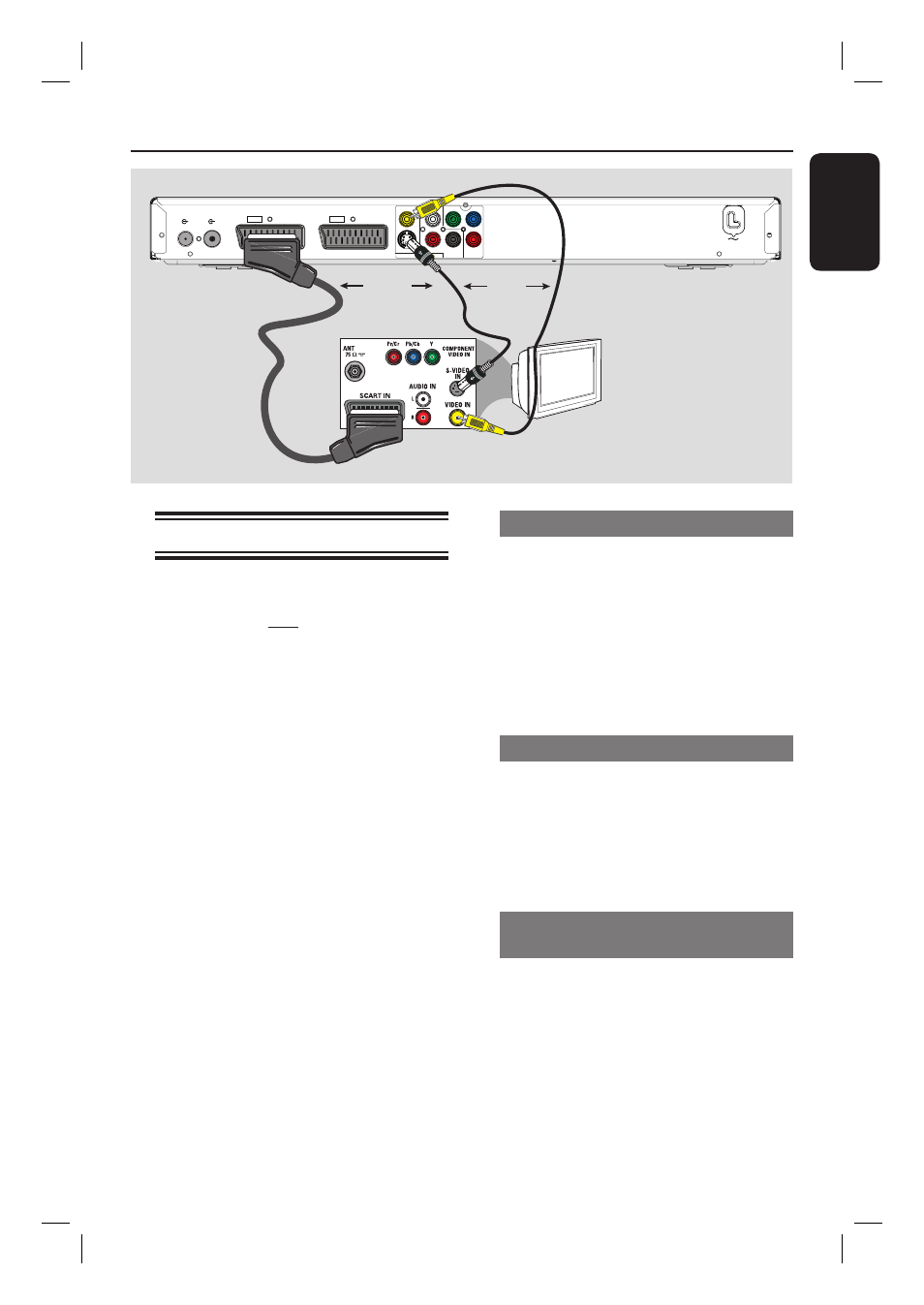

Step 1: Basic Recorder Connections
(continued)
Connecting the video cable
This connection enables you to view the
playback from this recorder. You only
need to choose one of the options
below to make your video connection.
– For a standard TV, follow option 1, 2
or 3.
– For a progressive scan TV, follow
option 4.
Helpful Hint:
– Audio connection is only required if you
are using the Y Pb Pr, S-VIDEO or CVBS
socket to connect your TV. See ‘Connecting
the audio cables’ for details.
Option 1: Using the Scart socket
Connect a scart cable (supplied) from the
EXT1 TO TV socket on the recorder
to the corresponding SCART socket on
the TV.
Helpful Hint:
– Use the EXT2-TO VCR/SAT socket for
connecting the recorder to additional device.
Option 2: Using the S-Video socket
Connect a S-video cable (not supplied)
from the S-VIDEO OUT socket on the
recorder to the S-Video input socket
(usually labelled as Y/C or S-VHS) on the
TV.
Option 3: Using the Video (CVBS)
socket
Connect a composite video cable (yellow
- not supplied) from the CVBS OUT
socket on the recorder to the video
input socket (usually labelled as A/V In,
Video In, Composite or Baseband) on the
TV.
COAXIAL
DIGITAL OUT
CVBS OUT
S-VIDEO OUT
VIDEO OUT AUDIO OUT
AUDIO
ANTENNA-IN TV-OUT
TO TV EXT 1 TO VCR/SAT EXT 2
MAINS
PB
PR
Y
R
L
TV
Option 2
Option 1
Option 3
OR OR
