English
16
COAXIAL
DIGITAL OUT
CVBS OUT
S-VIDEO OUT
VIDEO OUT AUDIO OUT
AUDIO
ANTENNA-IN TV-OUT
TO TV EXT 1 TO VCR/SAT EXT 2
MAINS
PB
PR
Y
R
L

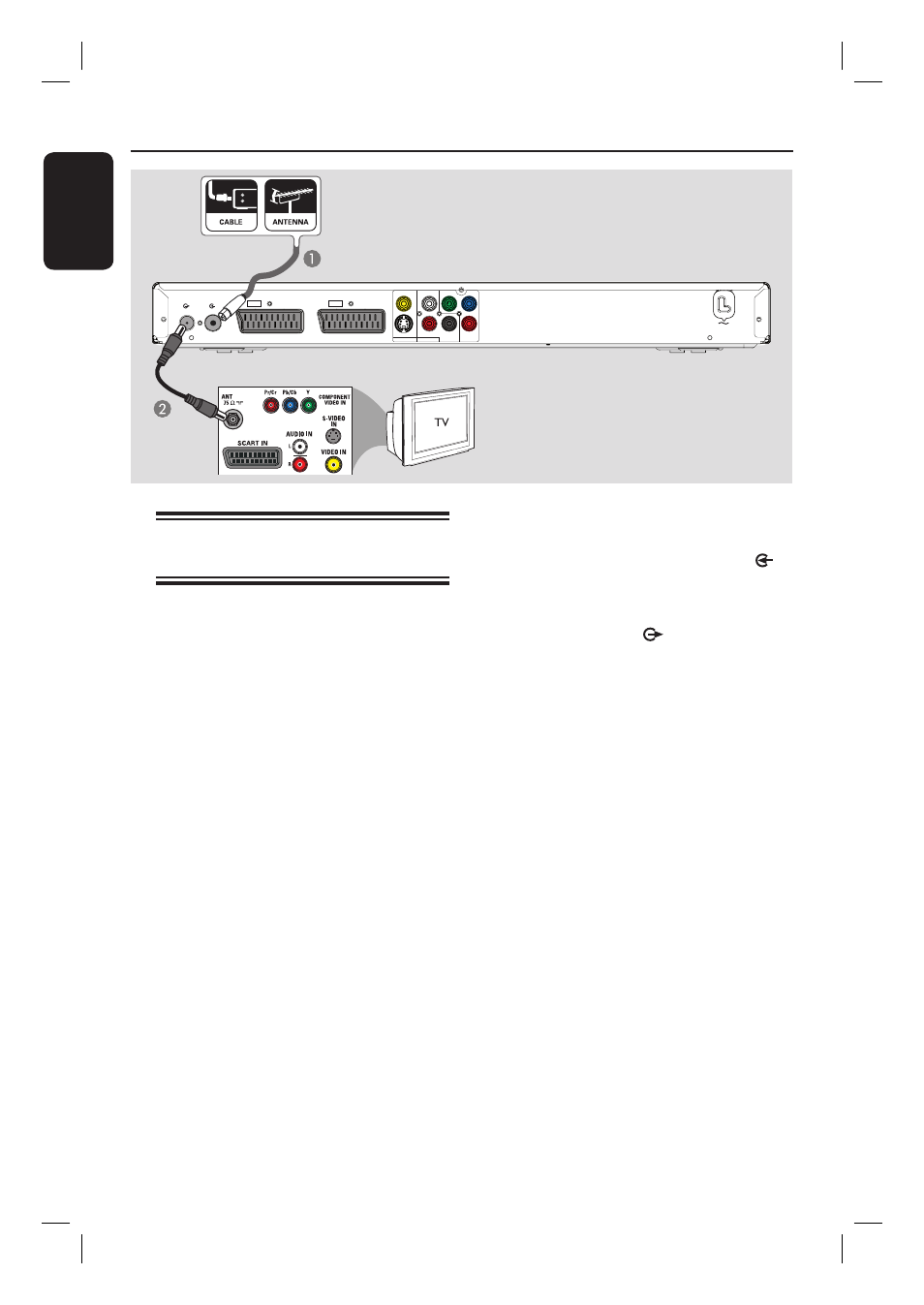

Step 1: Basic Recorder Connections
Connecting the antenna
cables
These connections enable you to watch
and record TV programmes using this
recorder. If the antenna signal is
connected via a Cable Box or Satellite
Receiver, ensure that these devices are
turned on in order to watch or record
the cable programmes.
If you want to connect to a VCR
and/or a separate Cable Box/
Satellite Receiver,
see ‘Step 2: Optional Connections’ for
details.
Helpful Hint:
– Depending on how you have currently
connected your TV channel (directly from an
off-air antenna or cable box or VCR), you’ll
have to disconnect some of the cables before
you make the antenna connection.
A Connect the existing Antenna cable (it
can be from the off-air wall socket or
Cable Box) to the ANTENNA-IN
socket on the recorder.
B Connect a RF antenna cable (supplied)
from the TV-OUT socket on the
recorder to the antenna input socket on
your TV (usually labelled as ANT,
ANTENNA IN, RF IN).
