Step 1: Basic Recorder Connections
(continued)

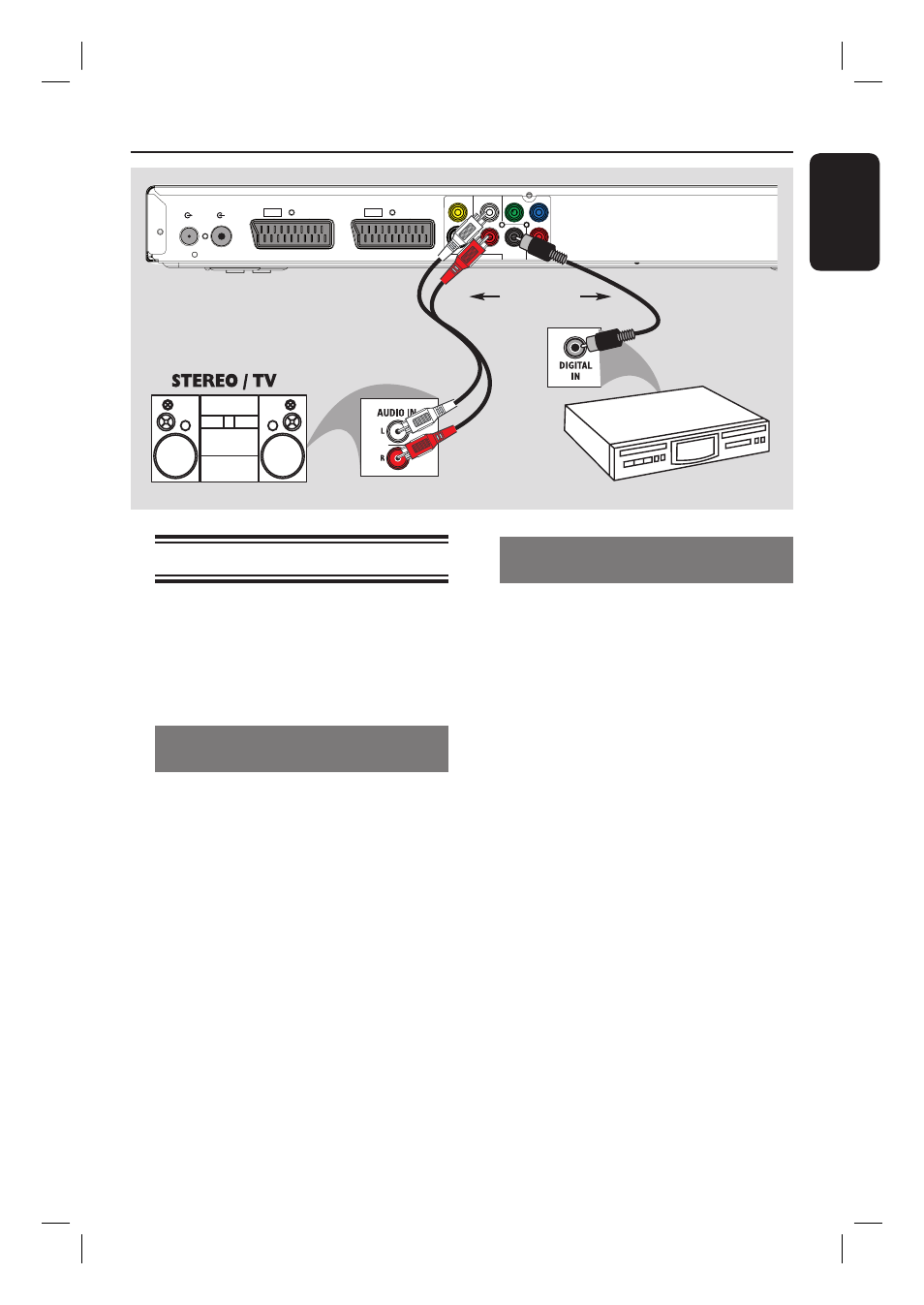

Connecting the audio cables
This connection enables you to listen to
the playback from this recorder.
However, this connection is not required
if this recorder is connected to the TV
using the Scart connector.
Option 1: Using the analogue audio
sockets
You can connect the recorder to a two
channel stereo system (mini system, TV)
or receiver in order to enjoy the stereo
sound system.
Connect the audio cable (red/white - not
supplied) from the AUDIO OUT
sockets to the audio input sockets of the
connected device.
Option 2: Using the digital audio
socket
You can connect the recorder to an AV
amplifi er/receiver in order to enjoy
multichannel surround sound.
Connect a coaxial cable (not supplied)
from the COAXIAL DIGITAL OUT
socket to the digital coaxial input socket
(or labelled as COAXIAL IN or DIGITAL
IN) of the connected device.
Helpful Hint:
– You have to set the appropriate Digital
Audio Output setting. Otherwise, no sound or
interference may occur. See ‘System Menu
Options - Audio settings’ for details.
COAXIAL
DIGITAL OUT
CVBS OUT
S-VIDEO OUT
VIDEO OUT AUDIO OUT
AUDIO
ANTENNA-IN TV-OUT
TO TV EXT 1 TO VCR/SAT EXT 2
PB
PR
Y
R
L
AV amplifi er/receiver
OR
