English

18

Step 1: Basic Recorder Connections

(continued)

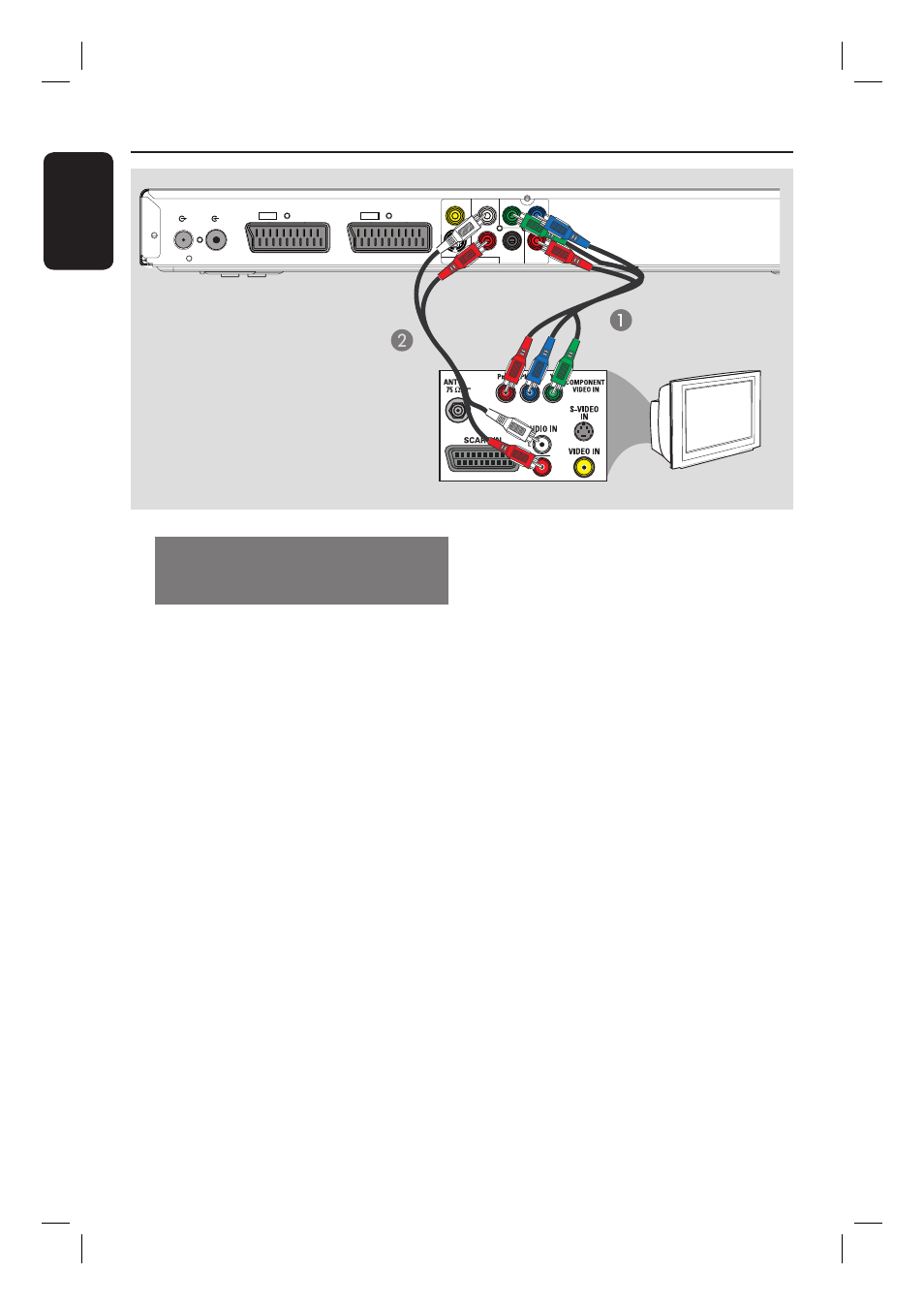

Option 4: Using Component
video socket / Connecting to a
Progressive Scan TV

The progressive scan video quality is only
available when using Y Pb Pr connection
and a progressive scan TV is required. It
provides superior picture quality when
watching DVD movies.

A

Connect the component video cables

(red/ blue/green - not supplied) from the
Y P

B

P

R

sockets on the recorder to the

corresponding component video input
sockets (usually labelled as Y Pb/Cb Pr/Cr
or YUV) on the TV.

B

Connect the audio cable (red/white - not

supplied) from the AUDIO OUT L/R
sockets on the recorder to the audio
input sockets on the TV.

Note:
To enable Y Pb Pr (YUV) connection, you
must set the recorder’s video output
correctly.

A

Make an addition video connection from

this recorder to your TV using Scart,
S-Video or Video (CVBS).

B

Turn on your TV to the correct viewing

channel for the above video connection.

C

When you have completed the

installation and set-up, change the video
output setting of this recorder as
follows:.

1) Press OPTIONS.
2) Move to { Settings } > { Video

output } > { Active video output }
> { Comp. video (YUV) }, then
press OK to confi rm.

To activate Progressive Scan output, see

‘Other information - Setting up
Progressive Scan feature’ for details.

D

Switch your TV to the correct viewing

channel for the Component video
connection (refer to your TVs user
manual).

COAXIAL

DIGITAL OUT

CVBS OUT

S-VIDEO OUT

VIDEO OUT

AUDIO OUT

AUDIO

ANTENNA-IN

TV-OUT

TO TV

EXT

1

TO VCR/SAT

EXT

2

PB

PR

Y

R

L

TV

Option 4
