Chapter 2:
Controls and displays

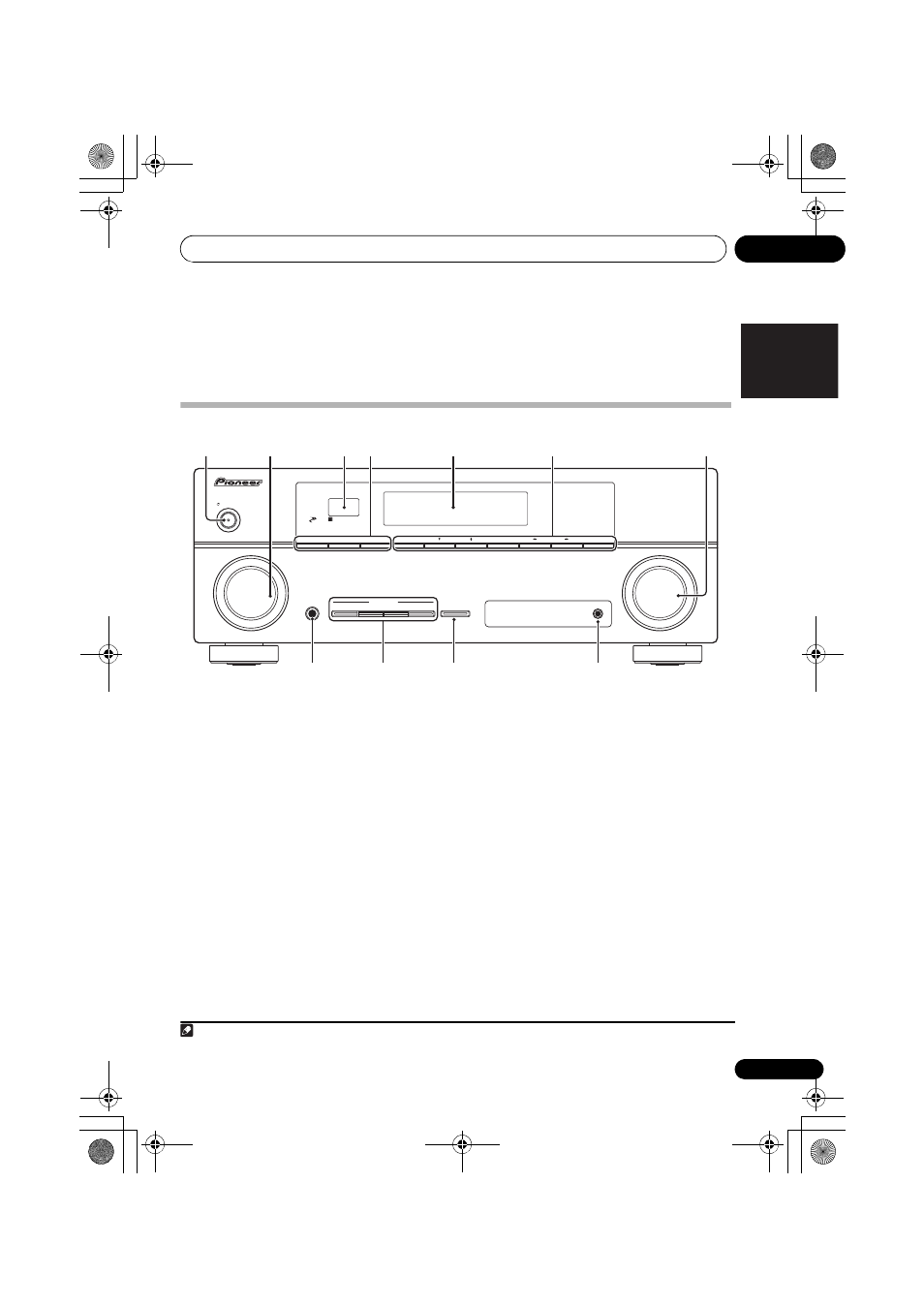

Front panel
1  STANDBY/ON
2 INPUT SELECTOR dial
Selects an input source.
3 Remote sensor
Receives the signals from the remote control
(see Operating range of remote control on
page 10).
4 SPEAKERS
Use to change the speaker system on or
off. When the
SP OFF is selected, no sound
is output from the speakers connected to
this receiver.
DIMMER
Dims or brightens the display. The
brightness can be controlled in four steps.
DISPLAY
Switches the display of this unit. The
listening mode, sound volume, Pre Out
setting or input name can be checked by
selecting an input source.
1
5 Character display
See Display on page 11.
6 Tuner control buttons
BAND
Switches between AM, FM ST (stereo) and
FM MONO radio bands (page 41).
TUNE /
Used to find radio frequencies (page 41).
TUNER EDIT
Use with
TUNE
/, PRESET / and
ENTER to memorize and name stations for
recall (page 41, 42).
SPEAKERS
AUTO/DIRECT STEREO/ALC STANDARD
LISTENING MODE
ADV SURROUND SOUND RETRIEVER
DIMMER DISPLAY BAND TUNE TUNER EDIT PRESET ENTER
PHONES
INPUT
SELECTOR
STANDBY/ON
PHASE CONTROL
MASTER
VOLUME
PORTABLE
AUDIO / VIDEO MULTI- CHANNEL RECEIVER VSX-520
1 2 6 7 4 3 5
8 10 9 11
Note
1 The Pre Out setting may or may not be displayed, depending on the input source you have selected.
