PRESET
/
Use to select preset radio stations
(page 41).
7 MASTER VOLUME dial
8 PHONES jack
Use to connect headphones. When the
headphones are connected, there is no sound
output from the speakers (page 36).
9 Listening mode buttons
AUTO/DIRECT
Switches between Auto surround mode
(Auto playback on page 28) and Stream
Direct playback. Stream Direct playback
bypasses the tone controls for the most
accurate reproduction of a source
(page 31).
STEREO/ALC
Switches between stereo playback, Auto
level control stereo mode (page 30) and
Front Stage Surround Advance modes
(page 30).
STANDARD
Press for Standard decoding and to switch
between the various
2 Pro Logic II, 2 Pro
Logic IIx, 2 Pro Logic IIz and NEO:6
options (page 28).
ADV SURROUND
Switches between the various surround
modes (page 29).
10 SOUND RETRIEVER
Press to restore CD quality sound to
compressed audio sources (page 31).
11 PORTABLE audio input jack
Connect an auxiliary component using a stereo
mini-jack cable (page 26).

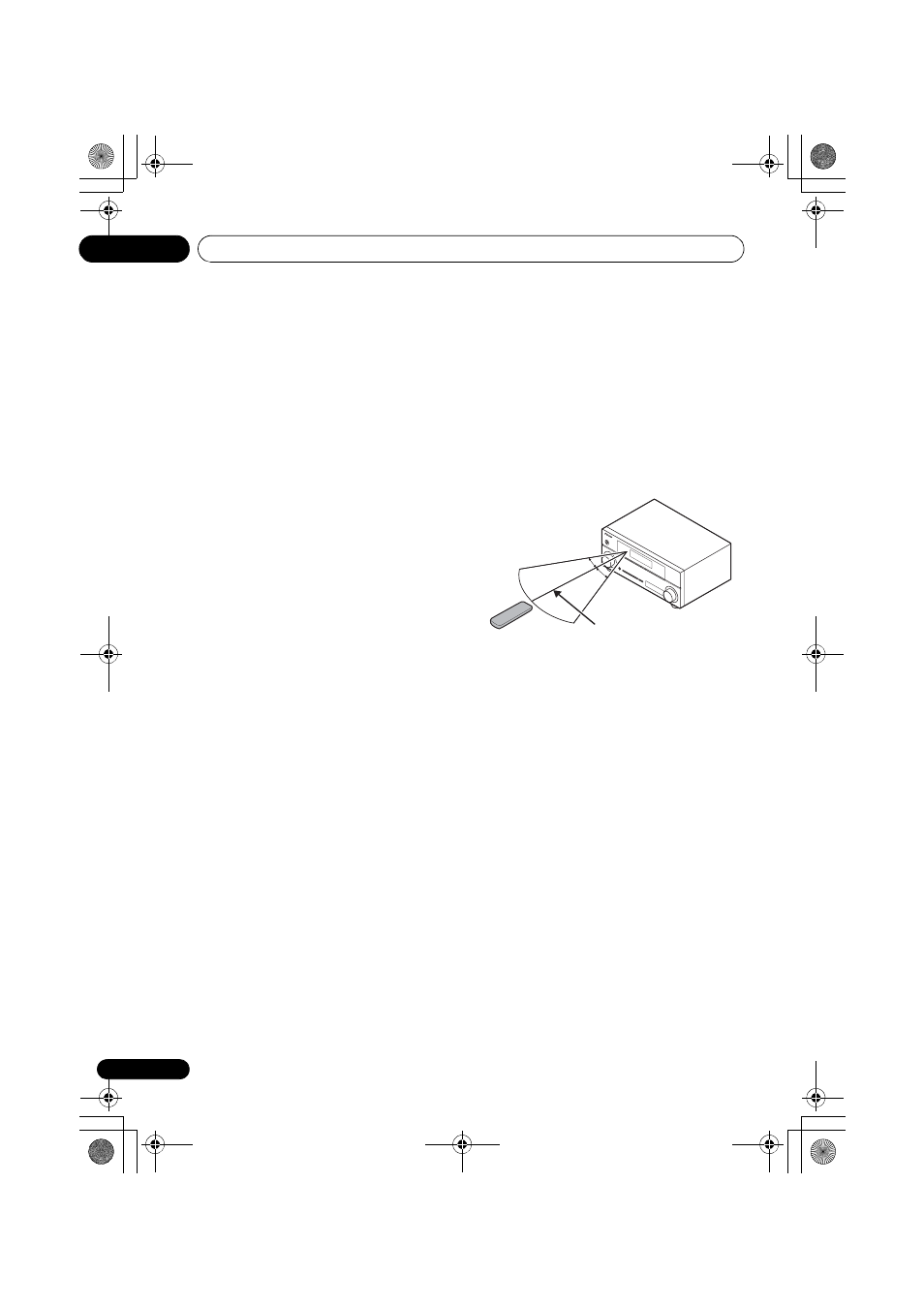

Operating range of remote control
The remote control may not work properly if:
• There are obstacles between the remote
control and the receiver’s remote sensor.
• Direct sunlight or fluorescent light is
shining onto the remote sensor.
• The receiver is located near a device that is
emitting infrared rays.
• The receiver is operated simultaneously
with another infrared remote control unit.
30°
7 m (23 ft.)
30°
