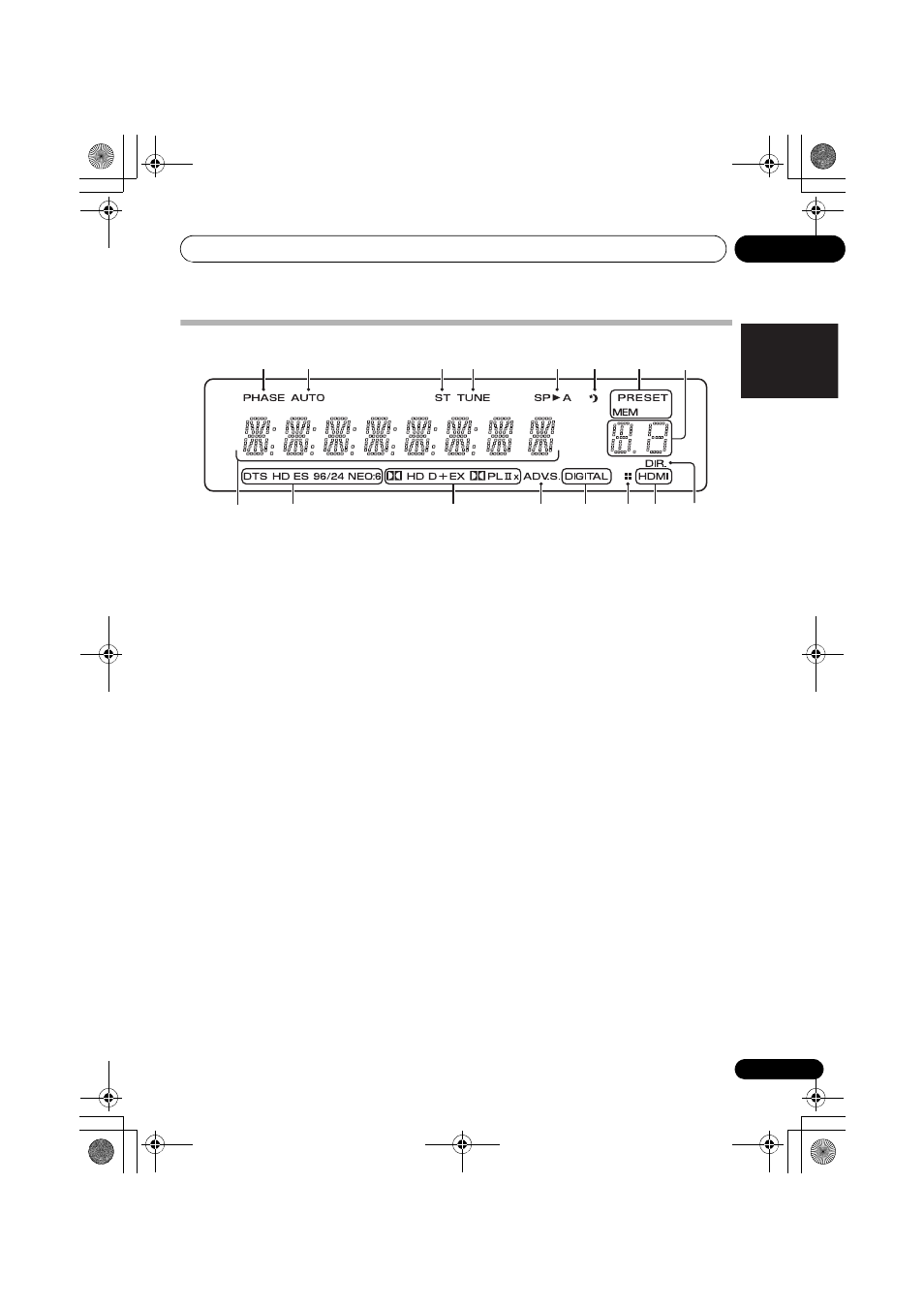

Display
1 PHASE
Lights when the Phase Control is switched on
(page 31).
2 AUTO
Lights when the Auto Surround feature is
switched on (see Auto playback on page 28).
3 ST
Lights when a stereo FM broadcast is being
received in auto stereo mode.
4 TUNE
Lights when a broadcast is being received.
5 Speaker indicator
Shows if the speaker system is on or not
(page 9).
SP  A means the speakers are switched on.
SP  means the speakers are switched off.
6 Sleep timer indicator
Lights when the receiver is in sleep mode
(page 13).
7 Tuner preset indicators
PRESET
Shows when a preset radio station is
registered or called.
MEM
Blinks when a radio station is registered.
8 PRESET information or input signal
indicator
Shows the preset number of the tuner or the
input signal type, etc.
9 Character display
Displays various system information.
10 DTS indicators
DTS
Lights when a source with DTS encoded
audio signals is detected.
HD
Lights when a source with DTS-EXPRESS
or DTS-HD encoded audio signals is
detected.
ES
Lights to indicate DTS-ES decoding.
96/24
Lights when a source with DTS 96/24
encoded audio signals is detected.
NEO:6
When one of the NEO:6 modes of the
receiver is on, this lights to indicate
NEO:6 processing (page 28).
11 Dolby Digital indicators
2D
Lights when a Dolby Digital encoded signal
is detected.
2D +
Lights when a source with Dolby Digital
Plus encoded audio signals is detected.
1 2 3 4 5 6 7
10 11 12 13 13 15 14
8
9
