Introduction 50
Model 3034/3038 Getting Started Guide C • Cabling
Introduction
This section provides information on the cables used to connect the Model 3034/3038 and the interface cards
to the existing network infrastructure and to third party products.
Console
The Model 3034/3038 can be connected to a serial terminal over its serial console port, as depicted in
figure 15 .

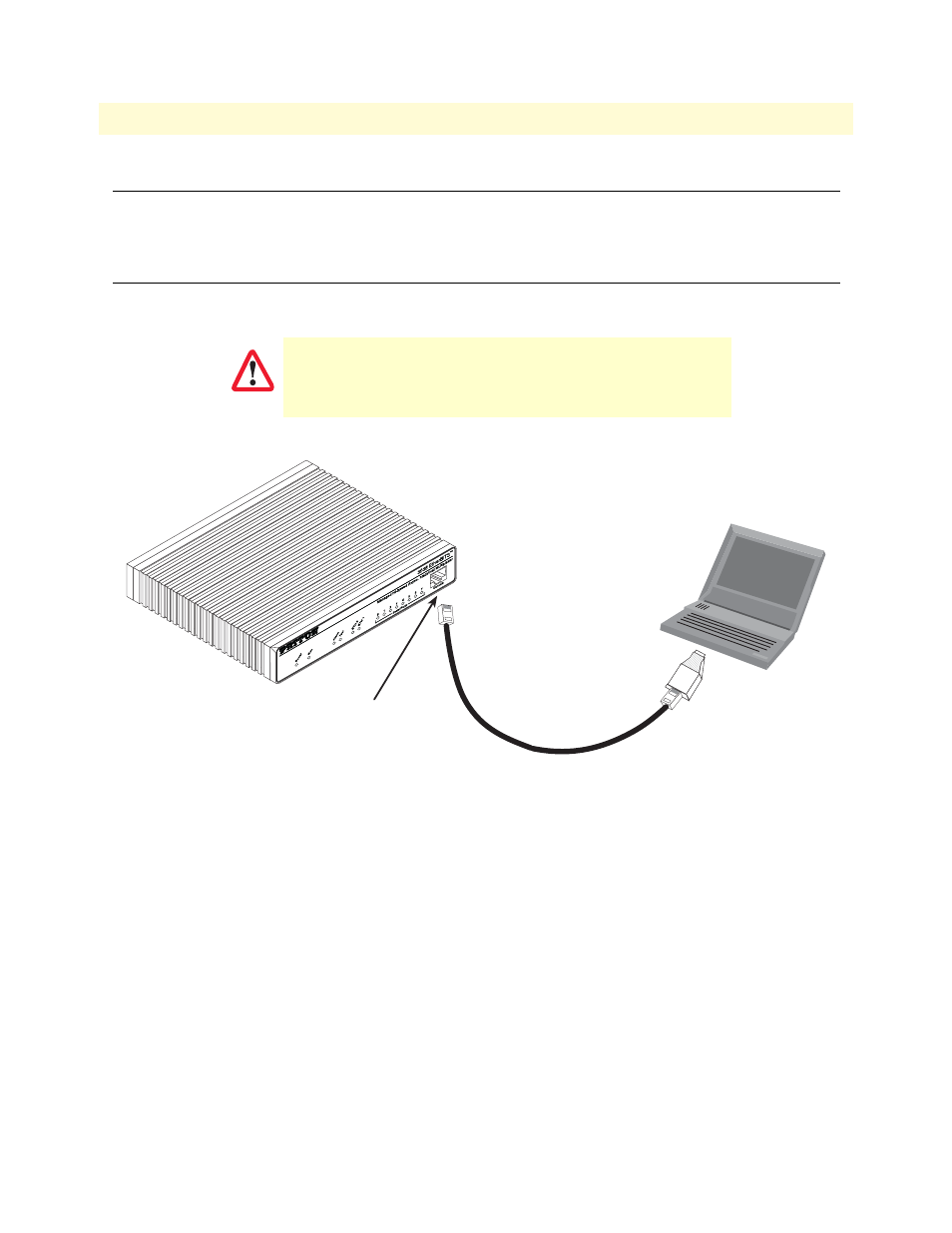

Figure 15. Connecting a serial terminal
Note See section “Console port” on page 53 for console port pin-outs.
The interconnecting cables shall be acceptable for external use
and shall be rated for the proper application with respect to volt-
age, current, anticipated temperature, flammability, and
mechanical serviceability.
CAUTION
PC
Connect to Console port
Model 3038
192.168.200.10
DB-9 serial port
RJ45 to DB-9 adapter
