Overview 38
TrinityAE Administrator’s Reference Guide 6 • Sync Serial Configuration
Overview
This chapter describes how to configure the sync serial interface on the following models:
• Model 3034/C – V.35 interface
• Model 3034/D – X.21 interface
• Model 3038/C – V.35 interface
• Model 3038/D – X.21 interface
Configuration Overview
When using two 3038s as statistical multiplexers, the sync serial interface (labeled Composite on the unit–V.35
or X.21) allows connectivity across a WAN link.
To configure sync serial settings through the WMI,
see the section
“Web Management Interface (WMI)” on page 38.
To configure sync serial settings through the CLI,
see the section
“Command Line Interface (CLI)” on page 39.
Web Management Interface (WMI)
To access the statistical multiplexer main page, click on Interface Configuration > Sync Serial from the menu
on the left of the screen.

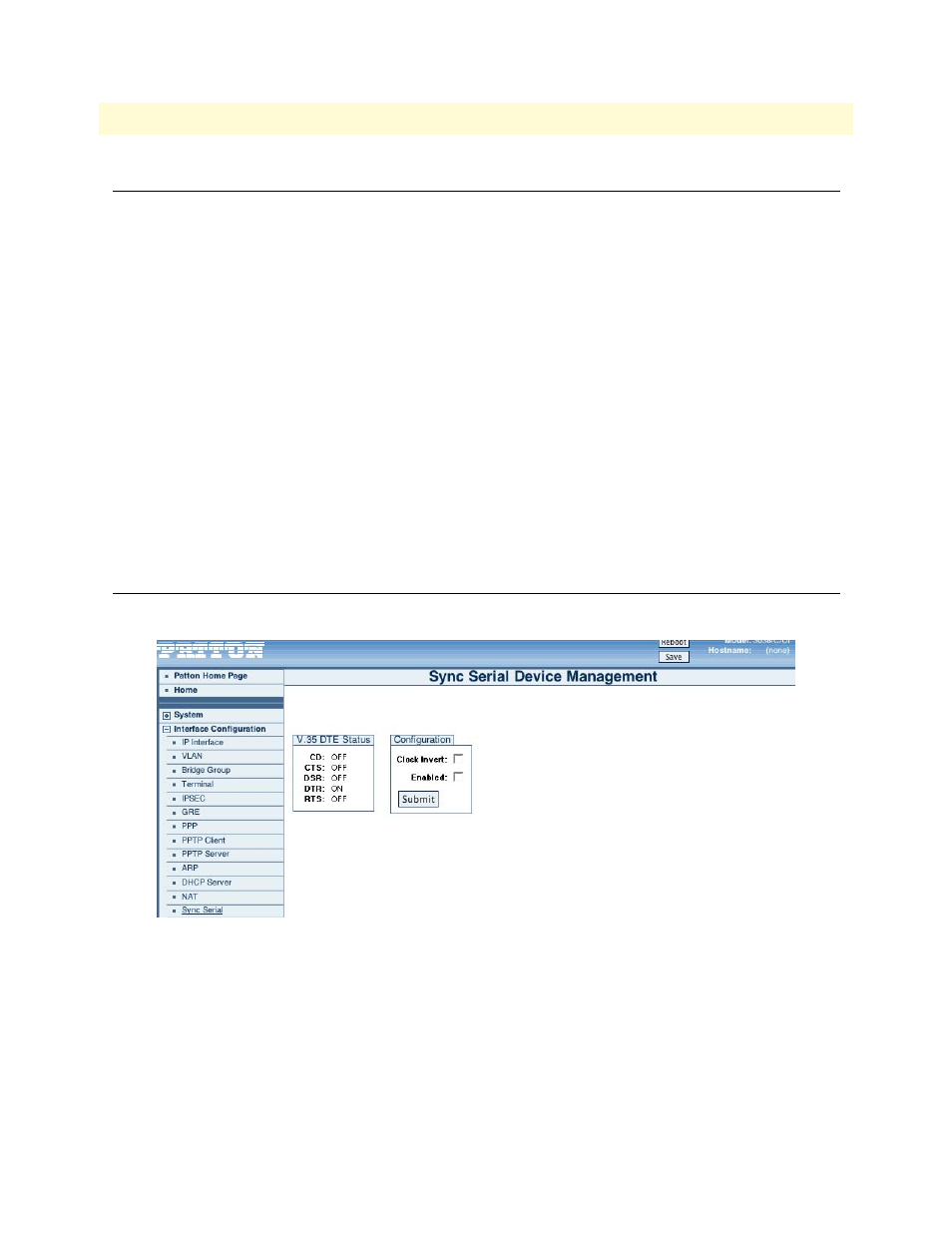

Figure 14. Sync Serial Device Management page
The Sync Serial Device Management main page displays the current state of the sync serial port (V.35 or
X.21). You can also select to invert the clock signal and enable/disable the port. Click Submit to save your set-
tings.
