23
English
3139 246 14221
Jacks behind the flap
Flip down the door as indicated by the
OPEN 2 label at the right hand corner.
0 S-VIDEO
– S-video input for SVHS/Hi8 camcorders
or SVHS/Hi8 video recorders (input
channel number 'CAM 1'.)
! VIDEO
– Video input for camcorders or video
recorders (input channel number
'CAM 1'.)
@ L/R AUDIO
– Audio input for camcorders or video
recorders (input channel number
'CAM 1'.)
# DV IN
– Input for digital camcorders or other
suitable devices using this connector
(input channel number 'CAM 2'.)
1 STANDBY-ON 2
– Turn on or off the DVD recorder.
2 Disc tray
3 OPEN/CLOSE ç
– Open or close the disc tray.
4 Display panel
– Show information about the current
status of the DVD recorder.
5 PLAY 2
– Play a disc.
6 REC 0
– Start recording the current TV channel or
the current video input source.
7 PREV/CH- ∞
– Go to the previous chapter track, do a
reverse search, or go to the previous
channel.
8 STOP 9
– Stop playback/recording.
9 NEXT/CH+ §
– Go to the next chapter track, do a
forward search, or go to the next
channel.

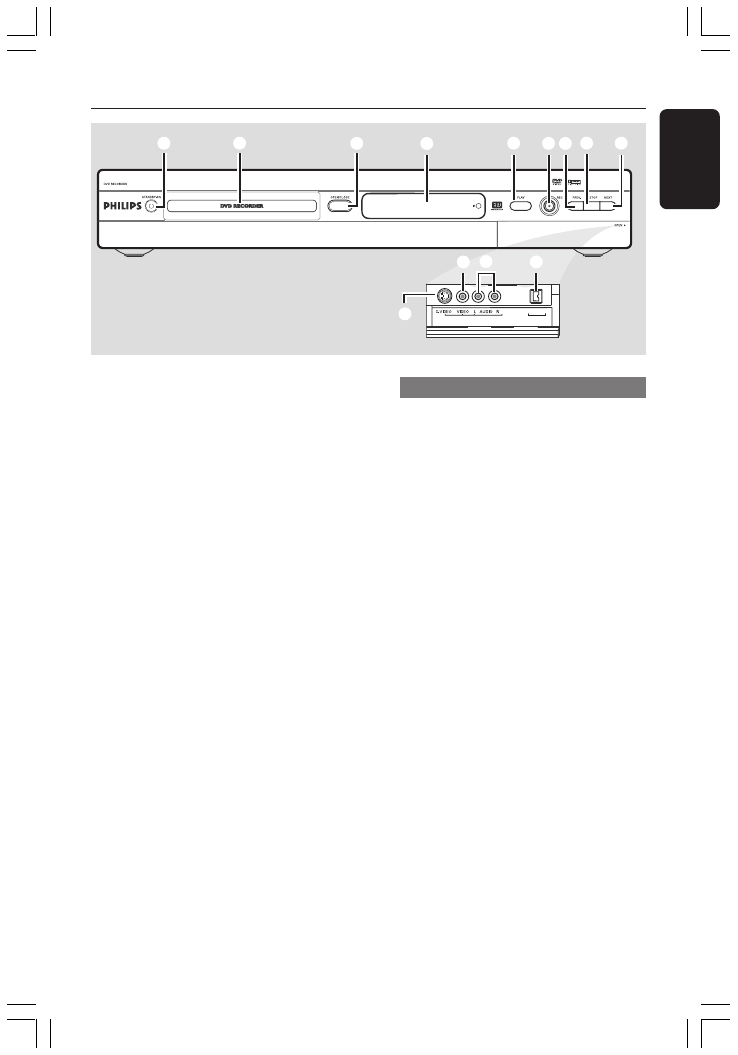

Front Panel
1.3
CH- CH+
DV IN
CAM 2
1 2 9 8 5 6 7 4 3
0
! @ #
CAM 1
