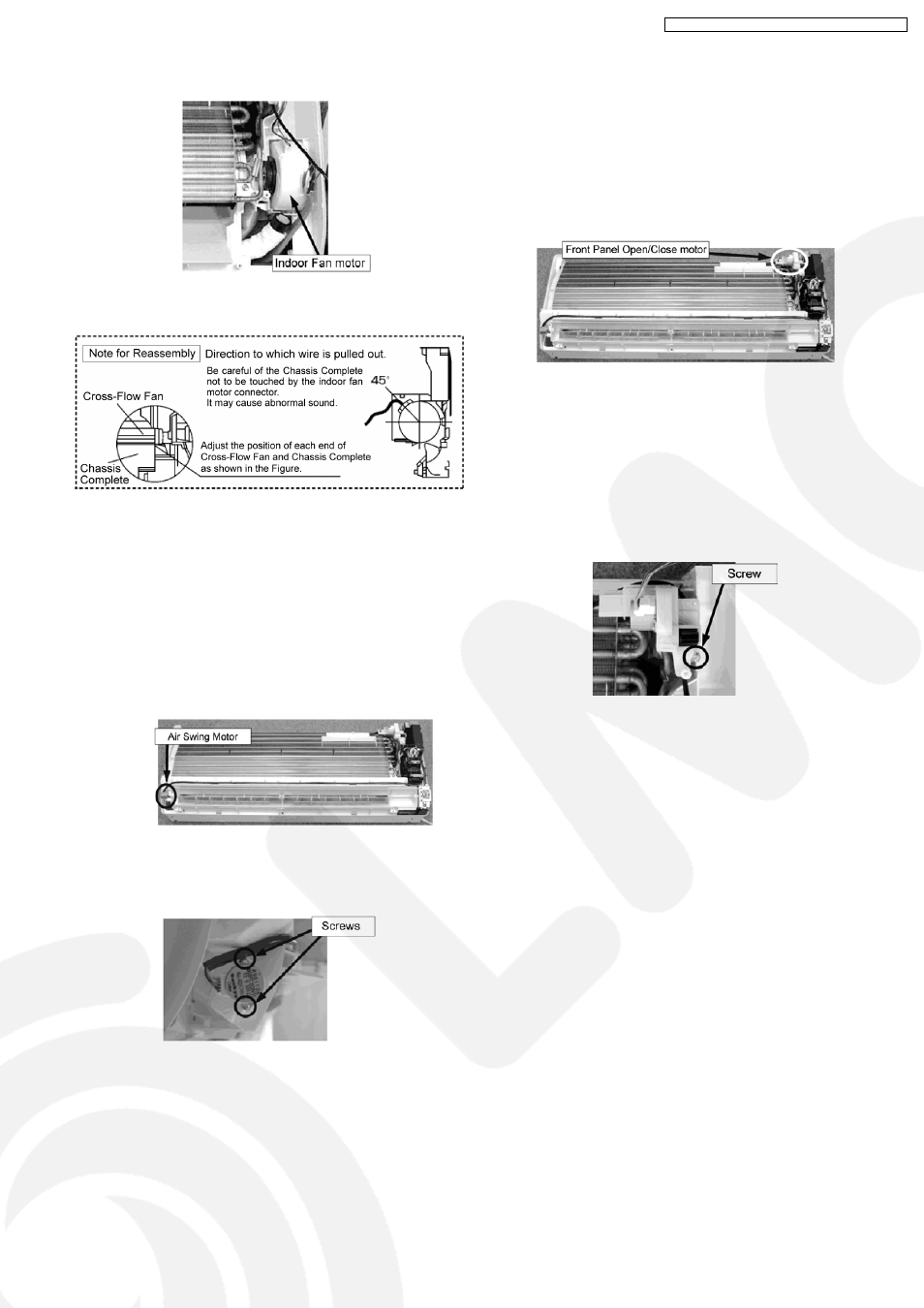

8. Pull out the Indoor Fan Motor.
Fig. 17
Fig. 18
13.4.1.6. Removal of Air Swing Motor for
Vertical and Horizontal Louvers
1. Remove the Front Panel according to the item 13.5.1.1.
2. Remove the Front Grille according to the item 13.5.1.2.
Note for Disassembly:
The Air Swing Motor for Vertical Louver can be
removed by only removal of the Front Grille.
Fig. 19
3. Remove it by unscrewing screws (two).
Fig. 20
13.4.1.7. Removal of Front Panel
Open/Close Motor
1. Remove the Front Panel according to the item 13.5.1.1.
2. Remove the Front Grille according to the item 13.5.1.2.
Note for Disassembly:
The Front Panel Open/Close Motor for Vertical Louver
can be removed by only removal of the Front Grille.
Fig. 21
3. Remove the Front Panel Open/Close Motor by unscrewing
the screw and disconnecting the connector.
Note for Disassembly:
Replace the Motor together with the Gear (Plastic)
when replacement. If further disassembly of the Gear is
performed, the reassembly will become impossible due
to out of gears inside.
Fig. 22
69
CS-TE9DKE CU-TE9DKE / CS-TE12DKE CU-TE12DKE
