Introduction and Installation
6

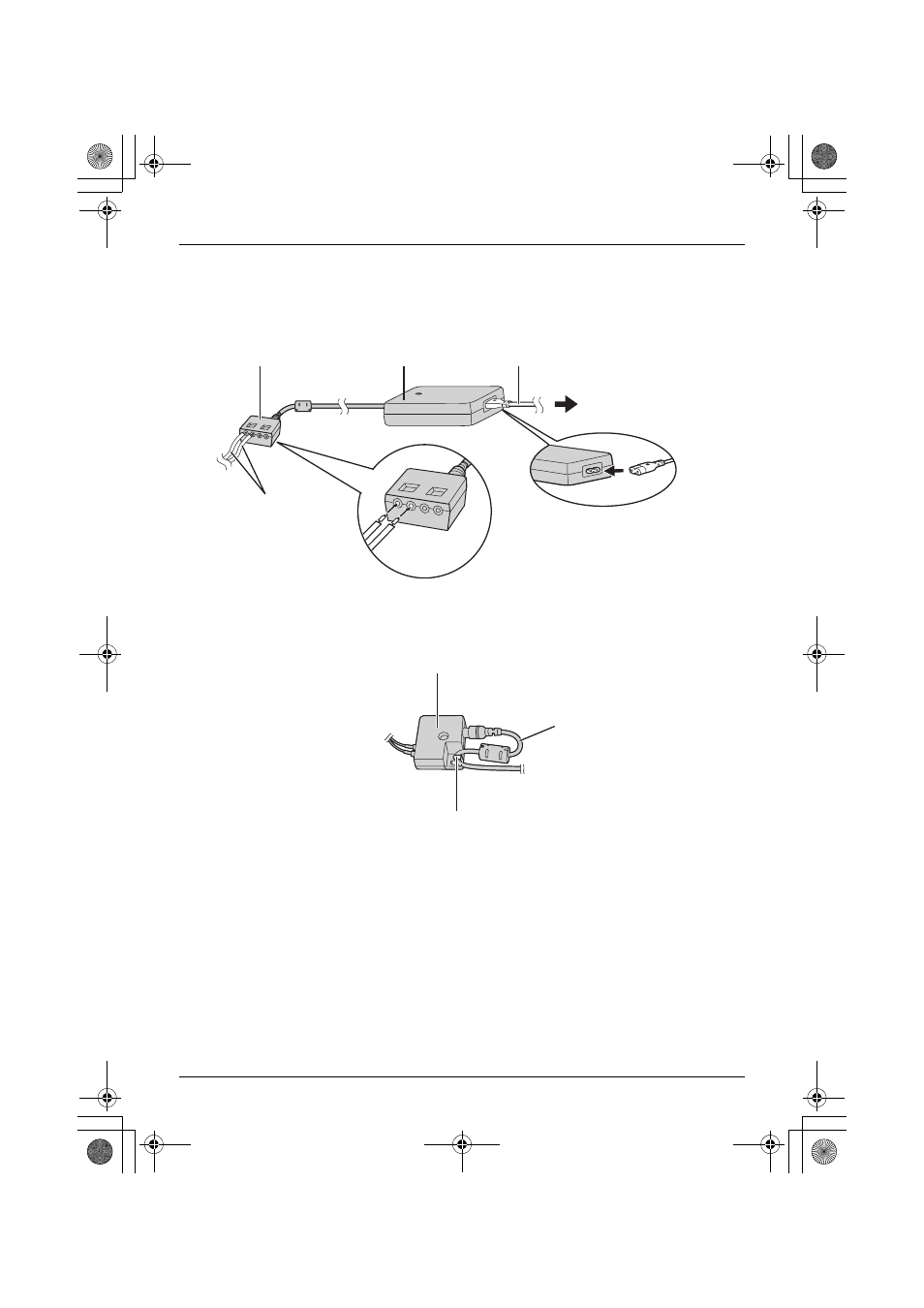

Connect the power cable to the DC terminal, the power cord to the AC adaptor, then
connect the power cord to the AC outlet (100 V
– 240 V, 50 Hz / 60 Hz).
L
Be sure to connect the power cable to the 2 holes on the left side of the DC terminal.
L For details on how to attach the power cable, see page 26.
7
Attach the DC cord to the clamp on the rear of the DC terminal.
L
This will help to avoid the DC cord to disconnect from the DC terminal.
To AC outlet
DC terminal
Power cable
AC adaptor Power cord
1
2
3
DC cord
DC terminal
Clamp
