17
Introduction and Installation
2

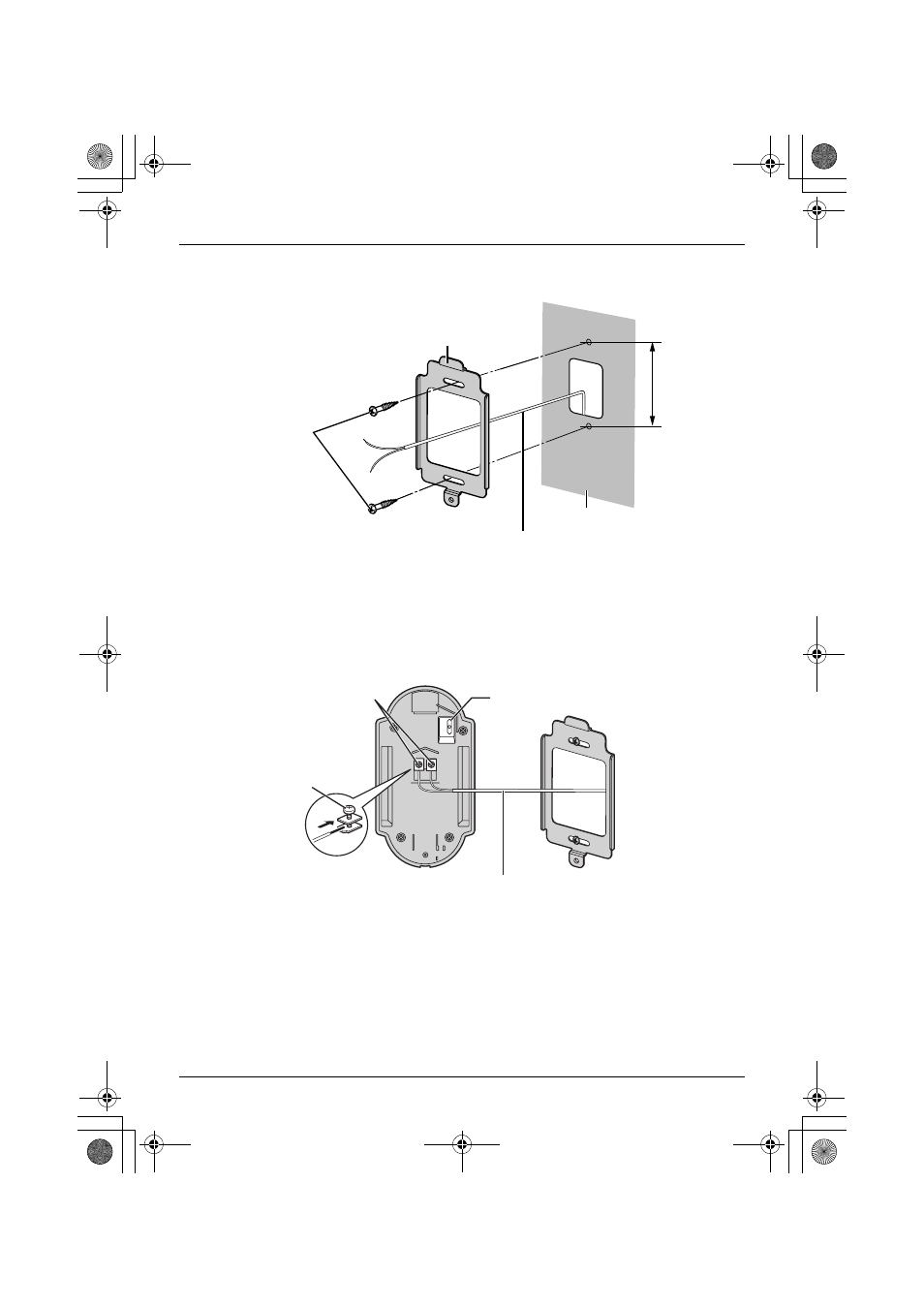

Attach the mounting bracket to the wall using the wood screws (3.8 mm x 20 mm).
L
Before drilling, see page 13 for installation location.
3
Connect the wires that connect to the monitor station to the terminal connector by
unscrewing the screws, pushing in the wires, then tightly fastening the screws.
L See page 15 for the wire type and distance.
L You can change the camera angle using the camera angle control lever. See page 13 for
details.
Wall
Mounting bracket
83.5 mm
Wire (Not included)
Wood screws
Camera angle control lever
Wire (Not included)
Terminal connector
(Non polar)
Screw
