CPD10WALLARM
Page 6 Visit Premier Mounts website at http://www.mounts.com Installation Instructions

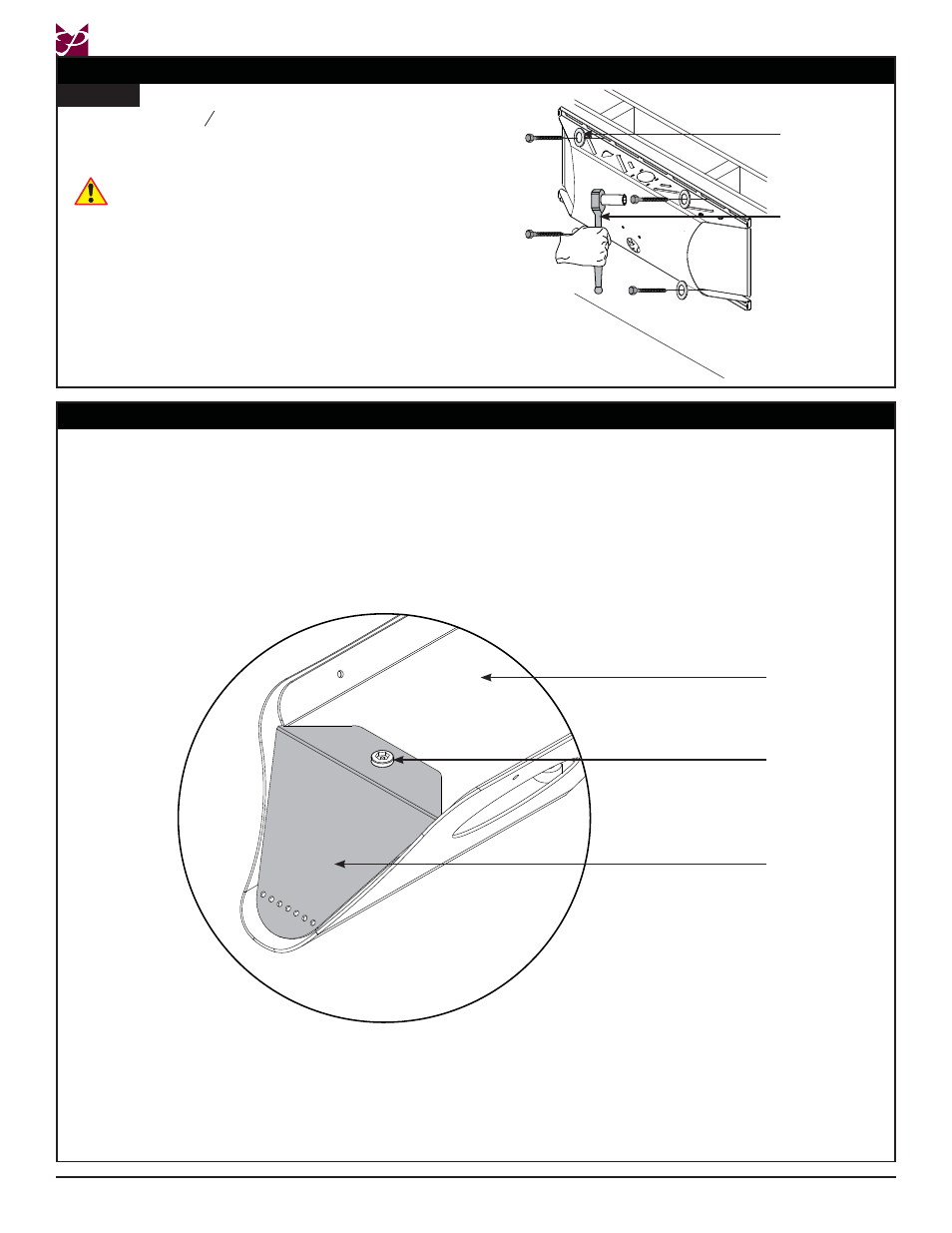

  Use four (4) 5
16
˝ x 3” lag bolts and four (4) fl at
washers to mount the wall plate to the wooden
studs. Use a ½” socket and socket wrench to
fi nish this step.
Do not overtighten the lag bolts.
  Insert and gently tap the wall plate covers into
place.
Proceed to the "Removing the End Cover" section.
½˝ Socket and
Wrench
Lag Bolt and
Flat Washer
X
X
Wood Stud Installation (cont'd)
CPD10WALLARM
M5 x 8mm
Security Screw
End Cover
  Locate the end cover.
  Remove the M5 x 8mm security screw using a M5
security wrench (supplied).
  Discard the end cover.
Proceed to the "Attaching the Projector Arm" section.
Removing the End Cover
Step 5
