CPD10WALLARM
Page 10 Visit Premier Mounts website at http://www.mounts.com Installation Instructions

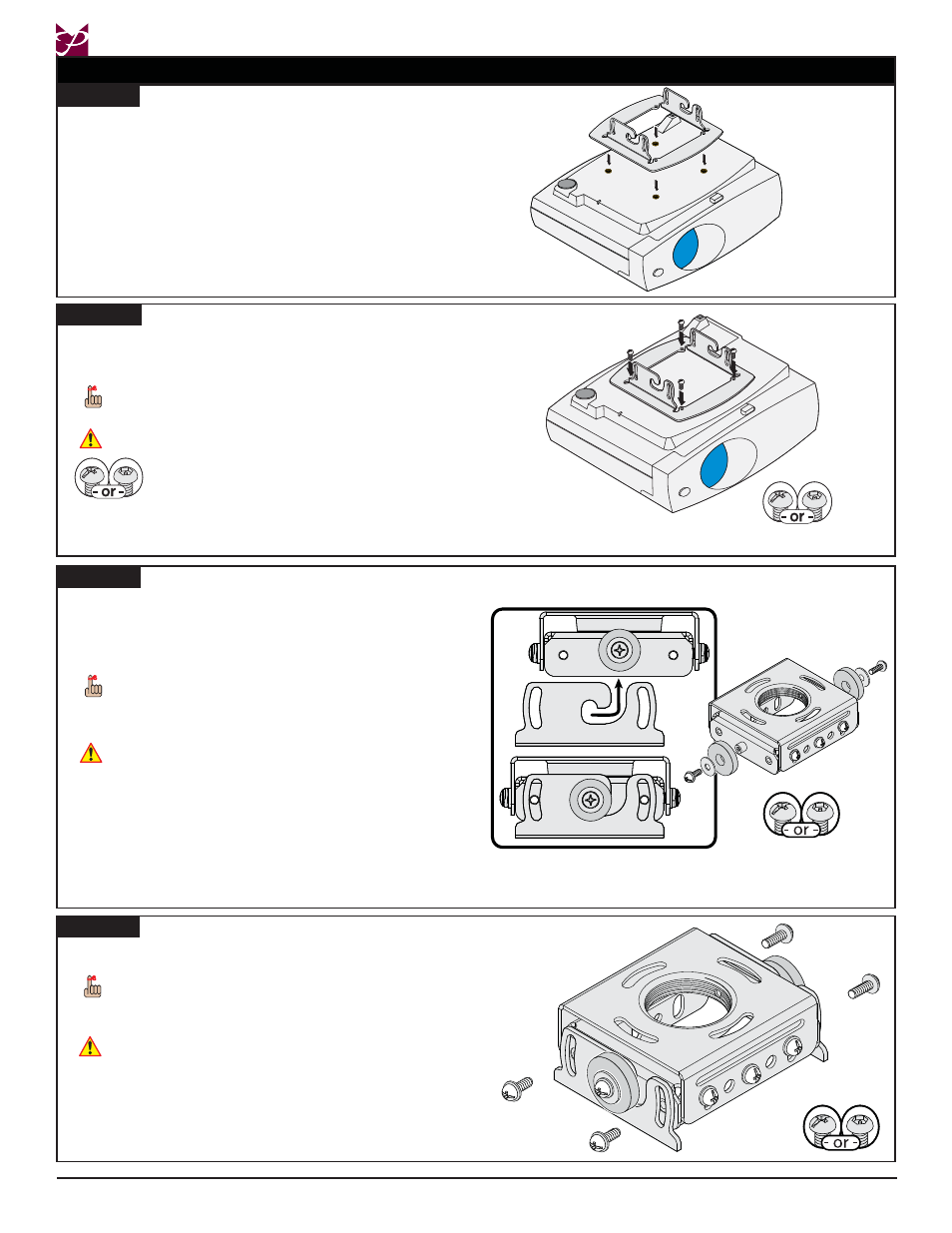

Step 2
Projector Bracket Installation
  Invert the projector and place it on a soft, fl at
surface.
  Remove any foot levelers that might prevent
bracket installation.
  Locate the mounting points on the projector.
  Place the bracket on the projector.
  Align the mount holes on the bracket with the
mounting points on the projector.
  Insert one (1) M4 x 10mm screw into each
mounting point.
  Tighten the mounting hardware.
You can use either the standard hardware or
Lock-It™ security hardware.
Do not overtighten the mounting screws.
Step 1
Your Premier Mounts bracket comes with the option of using
Lock-It™ Security Screws. Simply replace any of the combo head
screws with the corresponding sized Lock-It™ Security screws and
tighten using the M3 Security Allen wrench. When you see these
graphics associated with a step, you have the option of using the
standard mounting hardware or the Lock-It™ Security hardware.
Projector shown is for example purposes only.
Images not to scale.
Step 4
Step 3
  Insert the four (4) M6 x 12mm tilt adjustment
screws, two (2) per side.
You can use either the standard hardware or
Lock-It™ security hardware.
  Tighten all screws.
Do not overtighten the mounting screws.
  Follow the installation instructions that were
packaged with the base box to complete the
installation.
Proceed to the "Throw Distance Calculation" section.
  Place one (1) nylon washer and one (1) ¼″ fl at
washer over the hinge pin.
  Insert and tighten one (1) M6 x 12mm screw.
  Repeat  and  for the opposite hinge pin.
You can use either the standard hardware or
Lock-It™ security hardware. Replace eight (8)
M6 x 12mm screws and one (1) M6 x 8mm set
screw.
Do not overtighten the M6 x 12mm screws or the
M6 x 8mm set screw.
  Install the base box onto your ceiling or 1½” NPT
pipe as per the base box installation instructions.
  Slide the projector / projector plate assembly onto
the base box.
  Hook the projector plate over the hinge pins, as
shown.
