Premier Mounts CPD10WALLARM User Manual
Page 13
CPD10WALLARM
Installation Instructions
Visit Premier Mounts website at http://www.mounts.com
Page
13
Electronic
Components
Cables
CPD10WALLARM
Cable Opening
Projector
Connections
Cable Opening

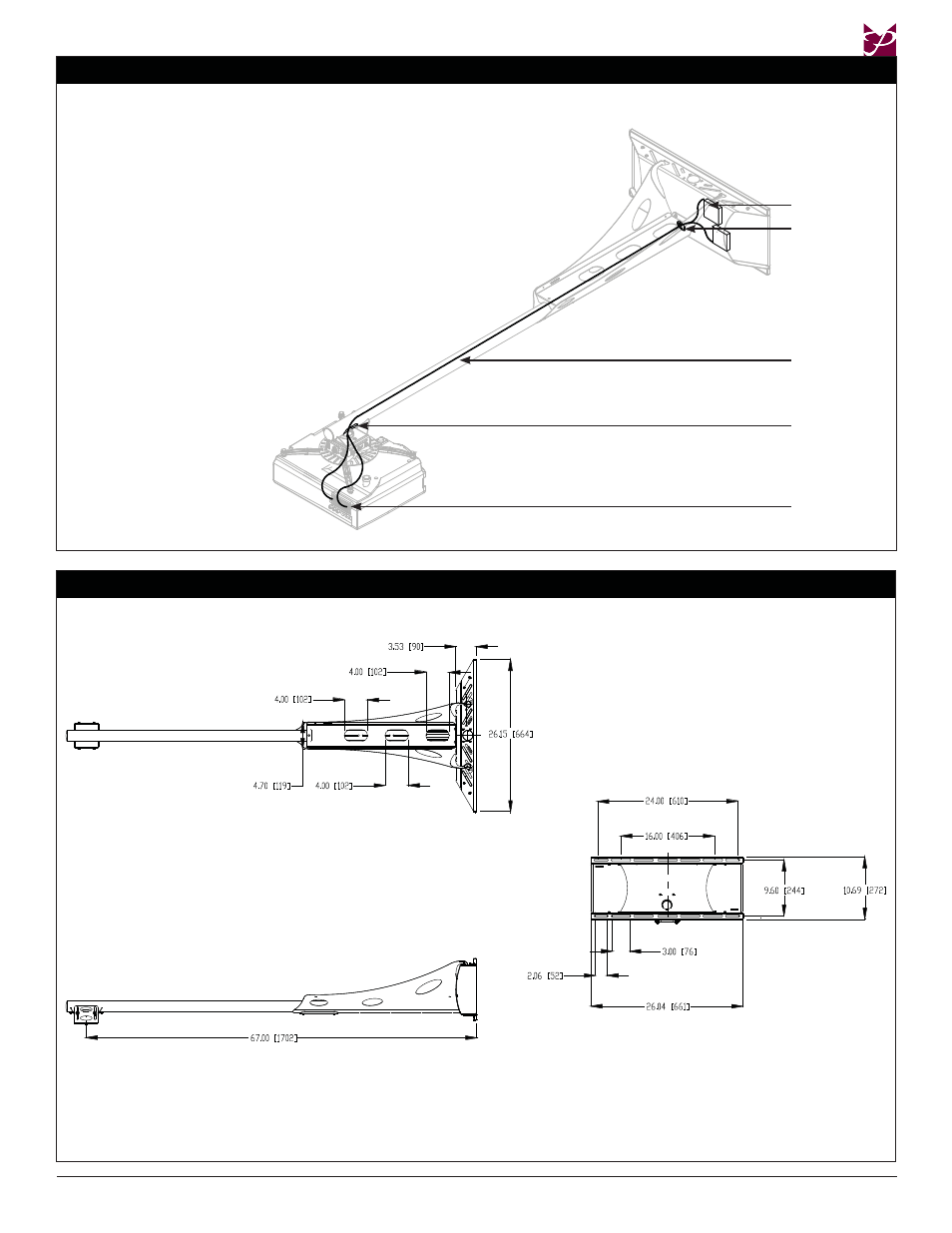

The cable access holes are located at the end of
the short throw mount and on the wall plate.
Route the cables through one end of the
CPD10WALLARM and out the other end.
Attach the end cover with an M5 x 8mm security
head screw.
Cable Management
All measurements are in inches(mm).
Technical Specifi cations
