CPD10WALLARM
Installation Instructions Visit Premier Mounts website at http://www.mounts.com Page 5
THE EXACT CENTER OF THE STUD MUST
BE LOCATED FOR CORRECT AND SAFE
INSTALLATION.
Do NOT overtighten lag bolts when attaching the
mount to the wall. Improper installation may result
in personal injury or damage to property.

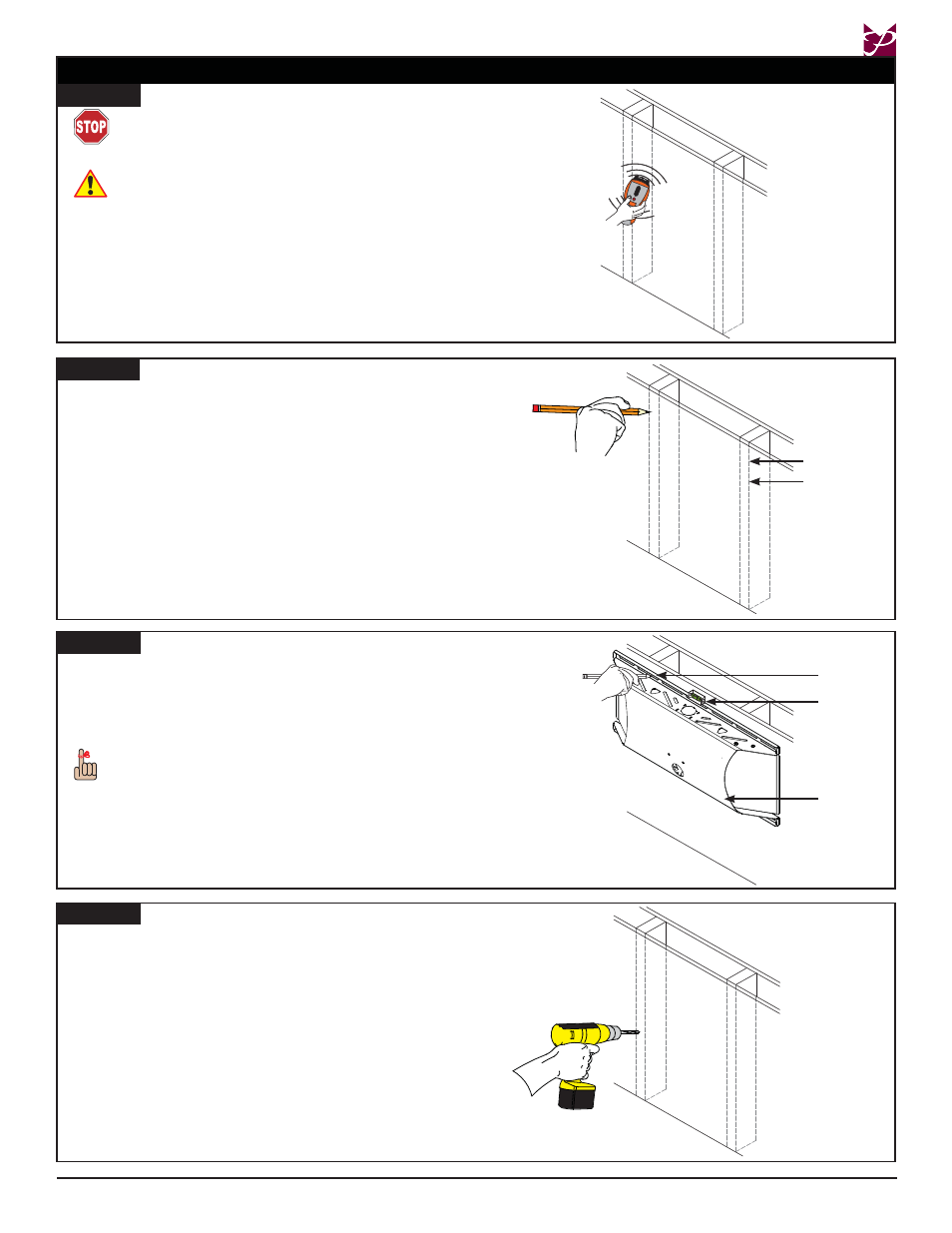

Use a stud fi nder to determine the exact center of wall
studs in the vicinity of the wall plate.
  Use the level to make sure the wall plate is level
from side to side.
  Place the wall plate over the fi rst mounting point
mark and use a pencil to mark the rest of the
mounting points.
Four (4) mounting points must be used. Two (2)
upper mounting points and two (2) lower
mounting points.
Level
Wall Plate
Use a ¼” drill bit and portable drill to drill the pilot holes.
Wood Stud Installation
X
Mounting Point
Mark
Height Mark
(from page 4)
X
X
X
Use a pencil to mark the fi rst mounting point, just
above your height mark (from the "Determining the
Installation Height"
section).
X
Marking
X
X
X
X
X
Step 1
Step 2
Step 3
Step 4
