CPD10WALLARM
Installation Instructions Visit Premier Mounts website at http://www.mounts.com Page 11
Please review the Operator’s Manual that came packaged with your projector before attaching the upper
mounting bracket. The correct throw distance (the distance from the projector to the screen) must be determined
prior to mounting the projector.
  Refer to the projectors Users Manual to determine the distance from the lens to the front of the screen (X).
  Measure the distance from the front of the lens to the center of the projector (Y).
  Measure the distance from the wall to the face of the whiteboard/screen (Z).
  Add all measurements (X + Y + Z) to determine projector placement on the arm assembly.
This measurement will determine where the center of the mount bracket will be located on the arm assembly.
Please make note of this measurement.
The CPD10WALLARM can be also used as a wall-mounted standard projector mount as well as a short throw
projector mount. Align the projector facing the opposite direction from the wall plate to project the image across
the room. Please take into account the projectors throw capabilities prior to mounting in the projector opposite
direction.
Proceed to the "Utilizing the Storage Feature" section.
Front
Lens
Rear
Lens

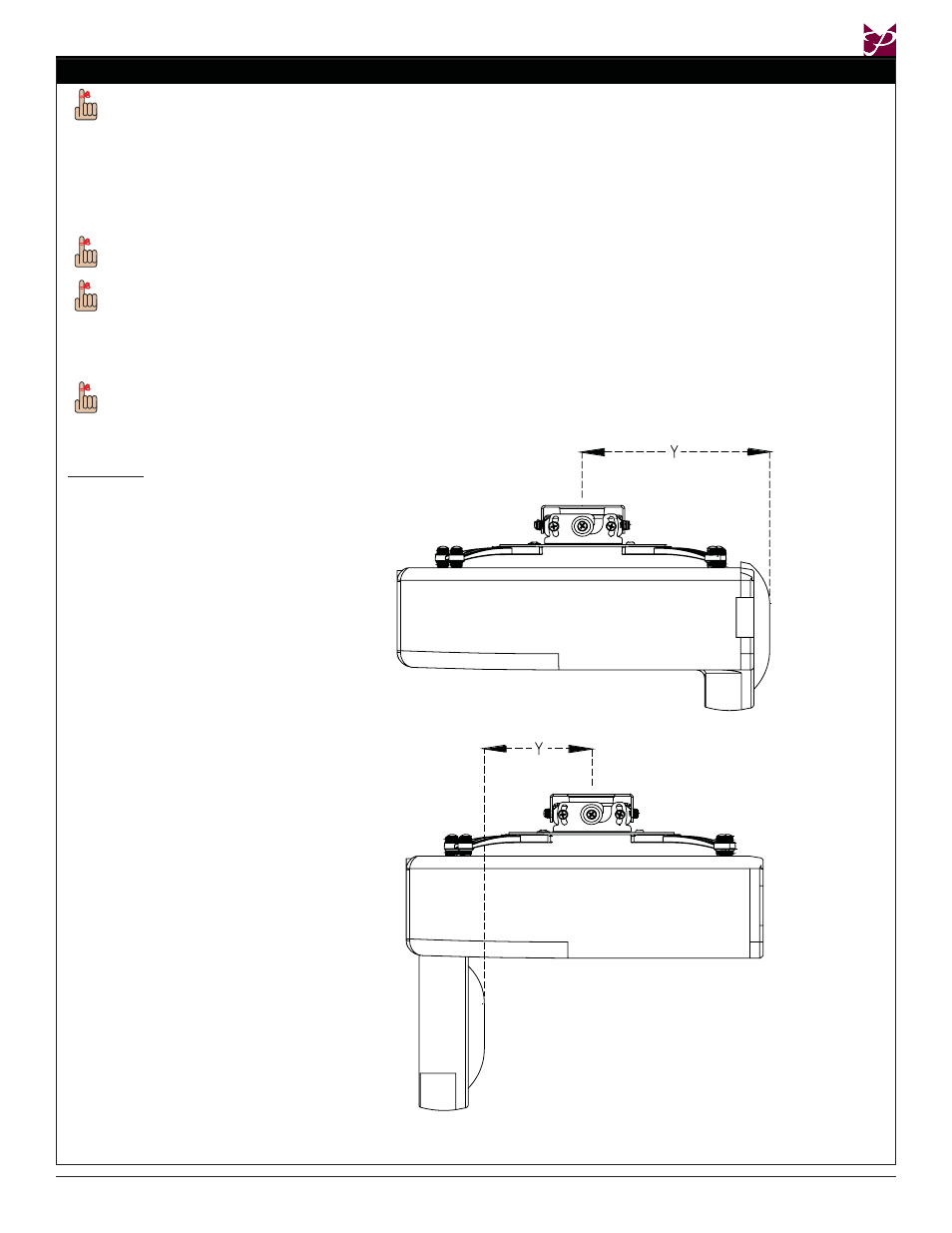

Calculations
X = Manufacturers
recommended throw distance
Z = Distance from wall to face of
whiteboard/screen
Front Lens Throw Distance =
(X + Y + Z)
Rear Lens Throw Distance =
(X - Y + Z)
Throw Distance Calculation
Note!
Once the throw distance has been calculated, all mounting hardware must be tightened.
