15

Connecting the System

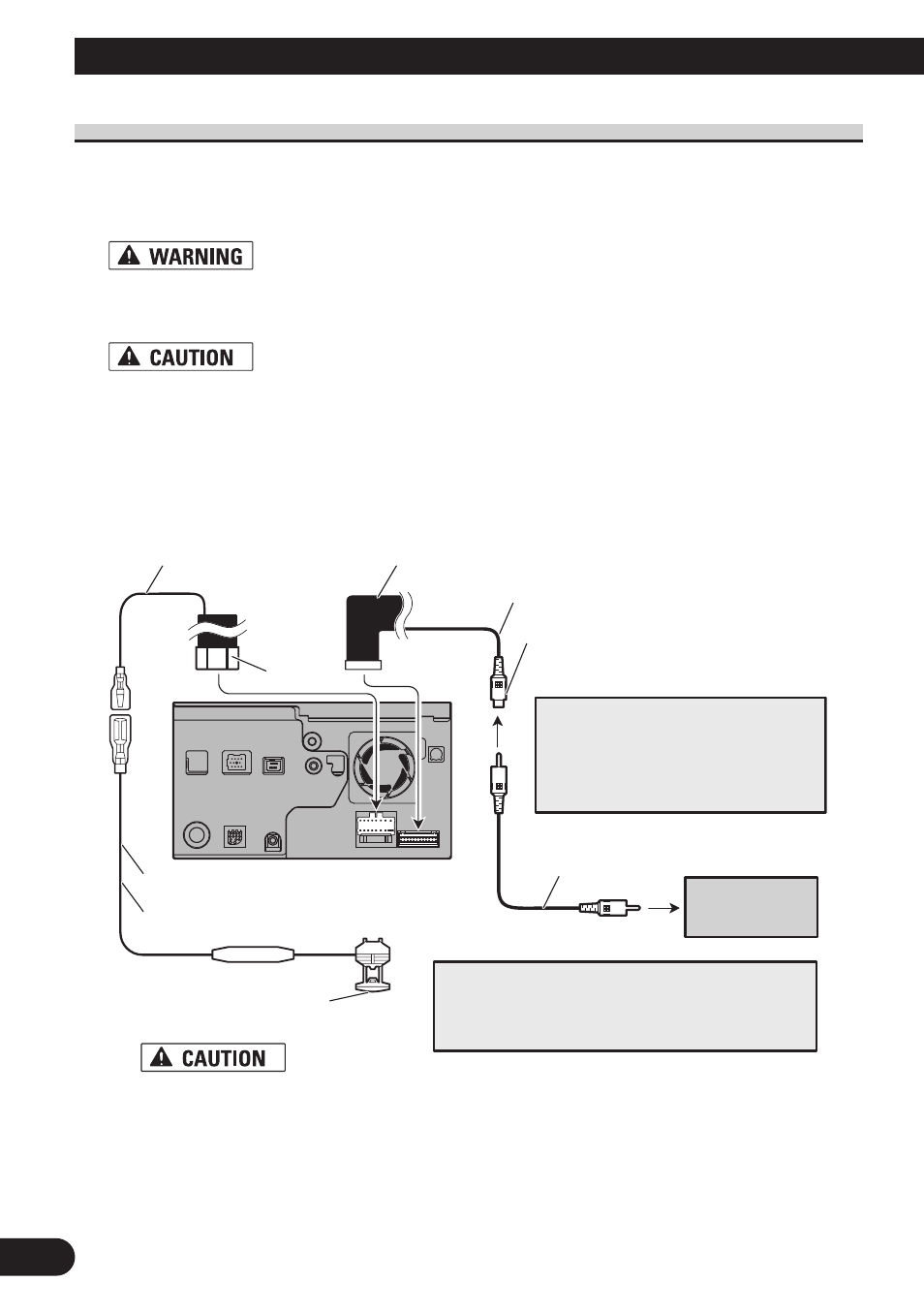

When connecting a rear view camera

When using this product with a rear view camera, automatic switching to video from a rear
view camera is possible when the gear shift is moved to REVERSE (R) position.
Rear view mode also allows you to check what is behind you while driving.

USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE
MAY RESULT IN INJURY OR DAMAGE.

• The screen image may appear reversed.
• The rear view camera function is to use this product as an aid to keep an eye on trailers, or backing

into a tight parking spot. Do not use this function for entertainment purposes.

• The object in rear view may appear closer or more distant than in reality.
• Please note that the edges of the rear view camera images may differ slightly according to whether

full screen images are displayed when backing, and whether the images are used for checking the
rear when the vehicle is moving forward.

15 cm

Extension lead (for reverse signal)

5 m

Violet/white

RCA connector

Power cord

Rear view
camera

RCA cable
(sold separately)

To video output

Connect to the rear view camera. Do not connect
to any other equipment.

Note:

The navigation unit

Fuse resistor

Brown
(REAR VIEW CAMERA IN)

Note:
It is necessary to set to “Camera” in
System” when connecting the rear
view camera. (For details, see the
Operation Manual.)

Be sure to use only the supplied extension lead.
Use of another lead could cause fire, smoke
and/or damage this navigation system.

About connection method

10

See Page 11.
