SCSI Bus Configurations
The following three figures show how to connect drives for single, dual and triple SCSI bus
configurations. Each bus in the library supports a maximum of four drives. The library address should
always be assigned to SCSI Bus 1.
Single Bus Configuration

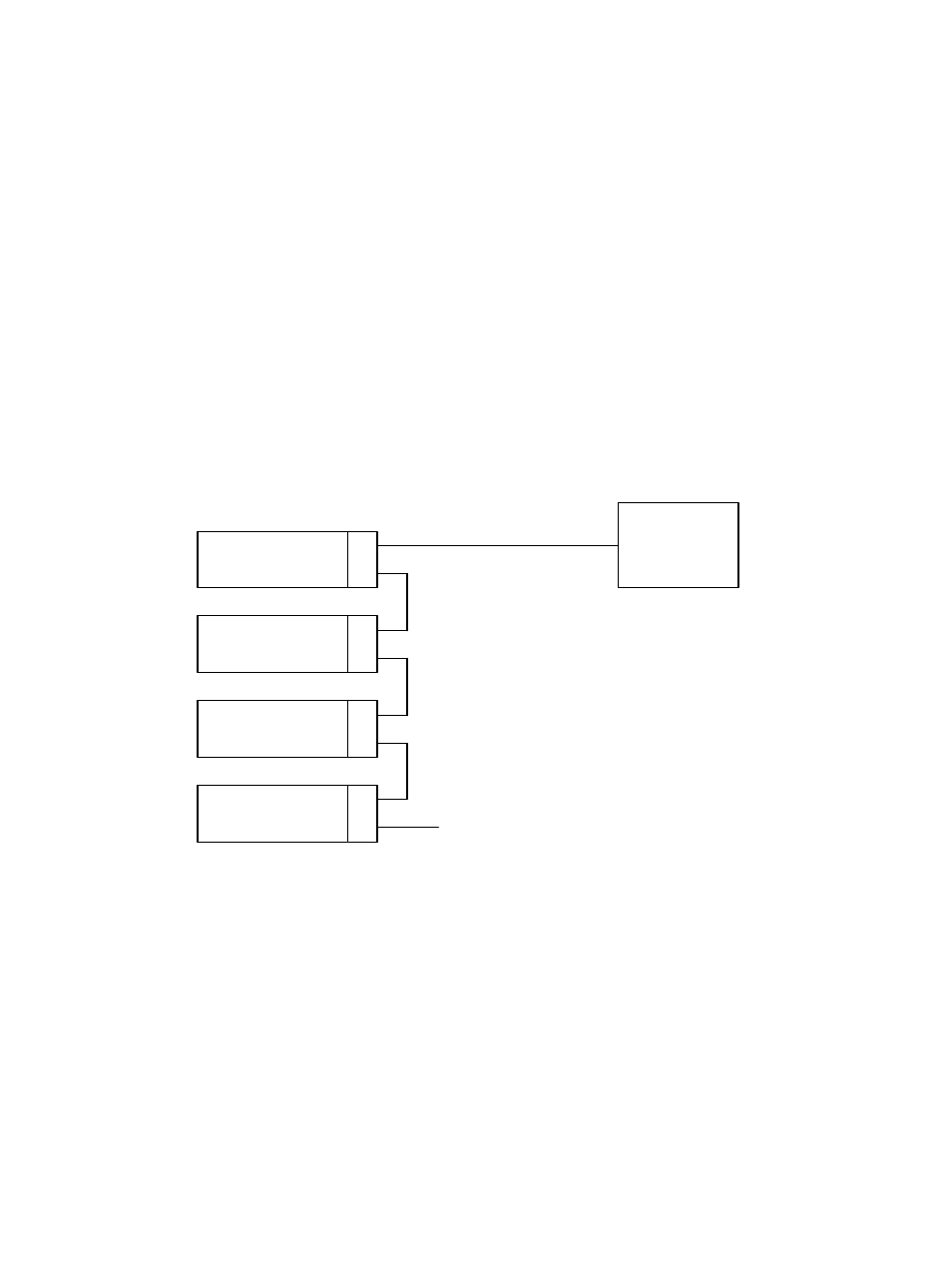

Figure 37. Single Bus Configuration
Host
Computer
Terminator
Drive 1
Drive 2
Drive 3
Drive 4
SCSI Bus 1
