Library Installation Plasmon D875 - D2175 User Manual
Page 34 Document Revision E

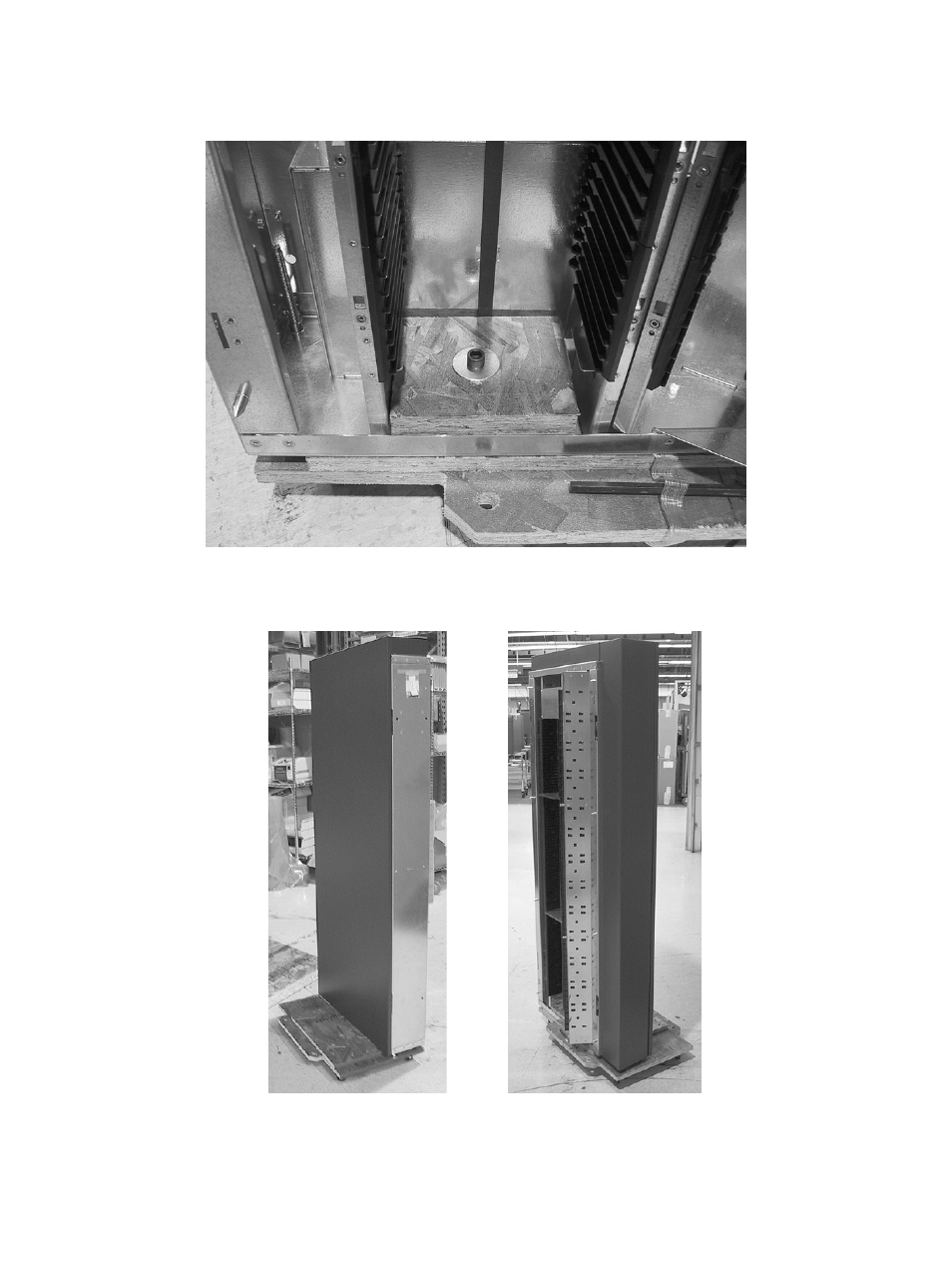

4. Use a mounting block and a hex head bolt to secure the bay to the wheeled skid.
Figure 25. Expansion Bay Packing (d)
5. Hang the painted skin and spacer column on their mounting screws as shown.
Figure 26. Expansion Bay Packing (e)
