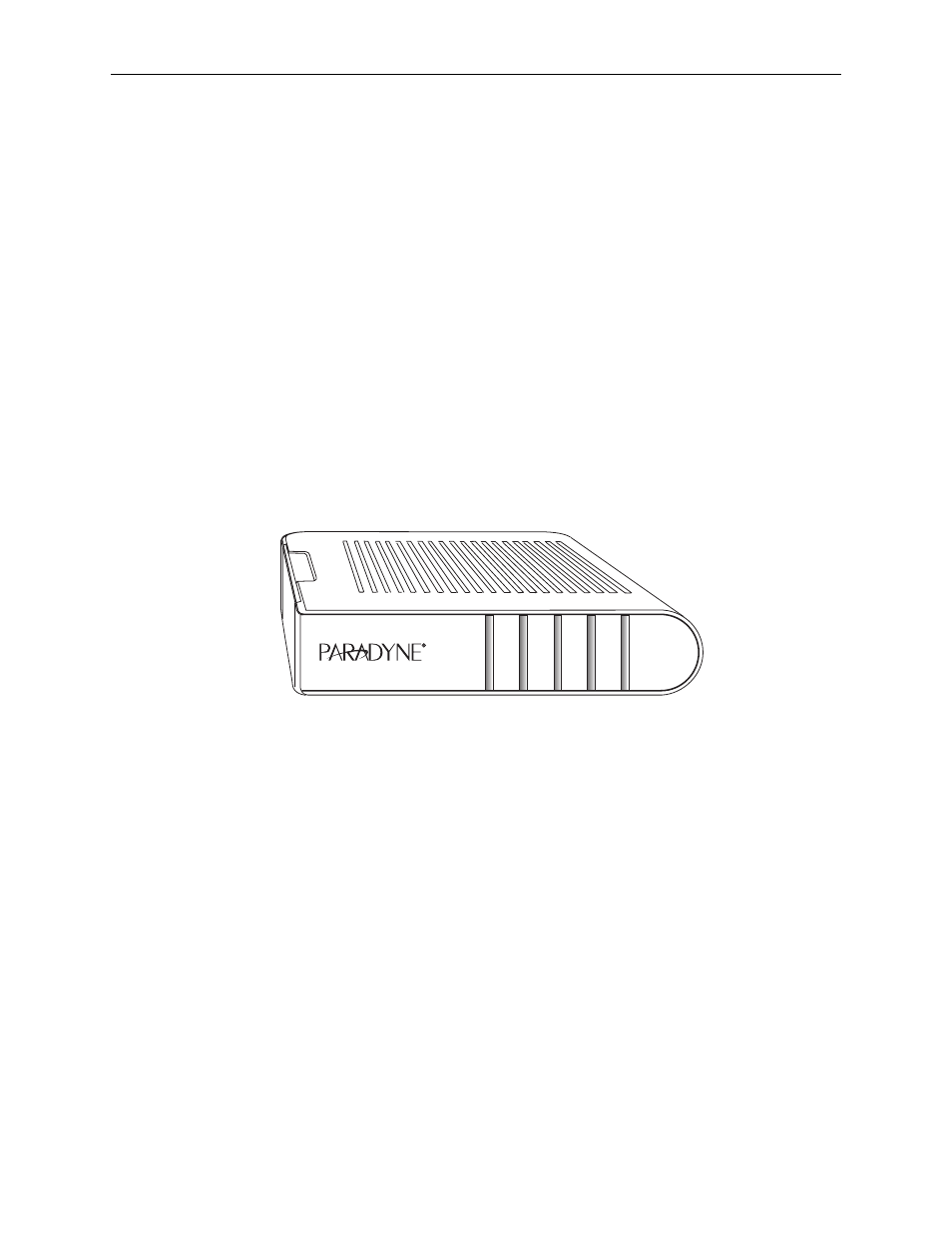

LED Description (Front Panel)
„ Power LED: On indicates that the power is supplied to the router.
„ Status LED: The Status LED serves two purposes. If the LED is continuously
lit, the DSL interface is successfully connected to a device through the LINE
port. If the LED is flickering, it is an indication that the router is training
(negotiating the connection to its partner modem).
„ Activity LED: The Activity LED shows the state of the PPPoA or PPPoE
connection. Off: no PPP connection is established or the connection is not
used. Blinking: a PPP connection is being attempted. Solid green: a PPP
connection is established.
„ LAN LED: The LAN LED serves two purposes. If the LED is continuously lit,
the Ethernet interface is successfully connected to a device through the LAN
port. If the LED is flickering, it is an indication of network activity.
„ USB LED: The USB LED serves two purposes. If the LED is continuously lit,
the USB interface is successfully connected to a device through the LAN port.
If the LED is flickering, it is an indication of network activity.
05-17610
USB LAN
ACTIVITY ST
ATUS
POWER
