25
SERIAL
S-VIDEO RGB 2 IN / RGB 1 OUT VIDEO
REMOTE 1
RGB 1 IN
IN
IN
IN
OUT
OUT
OUT
SYNC/HD VD B/P B G/Y
REMOTE 2
R/P R
RS-232C (G) / RS-422 (R) RS-232C (G) / RS-422 (R)
IN
Video deck (TBC built-in)
High-vision video deck
Control PC
Color monitor
Red (connected to P R terminal)
Blue (connected to P B terminal)
Green (connected to Y terminal)
Video deck (TBC built-in)

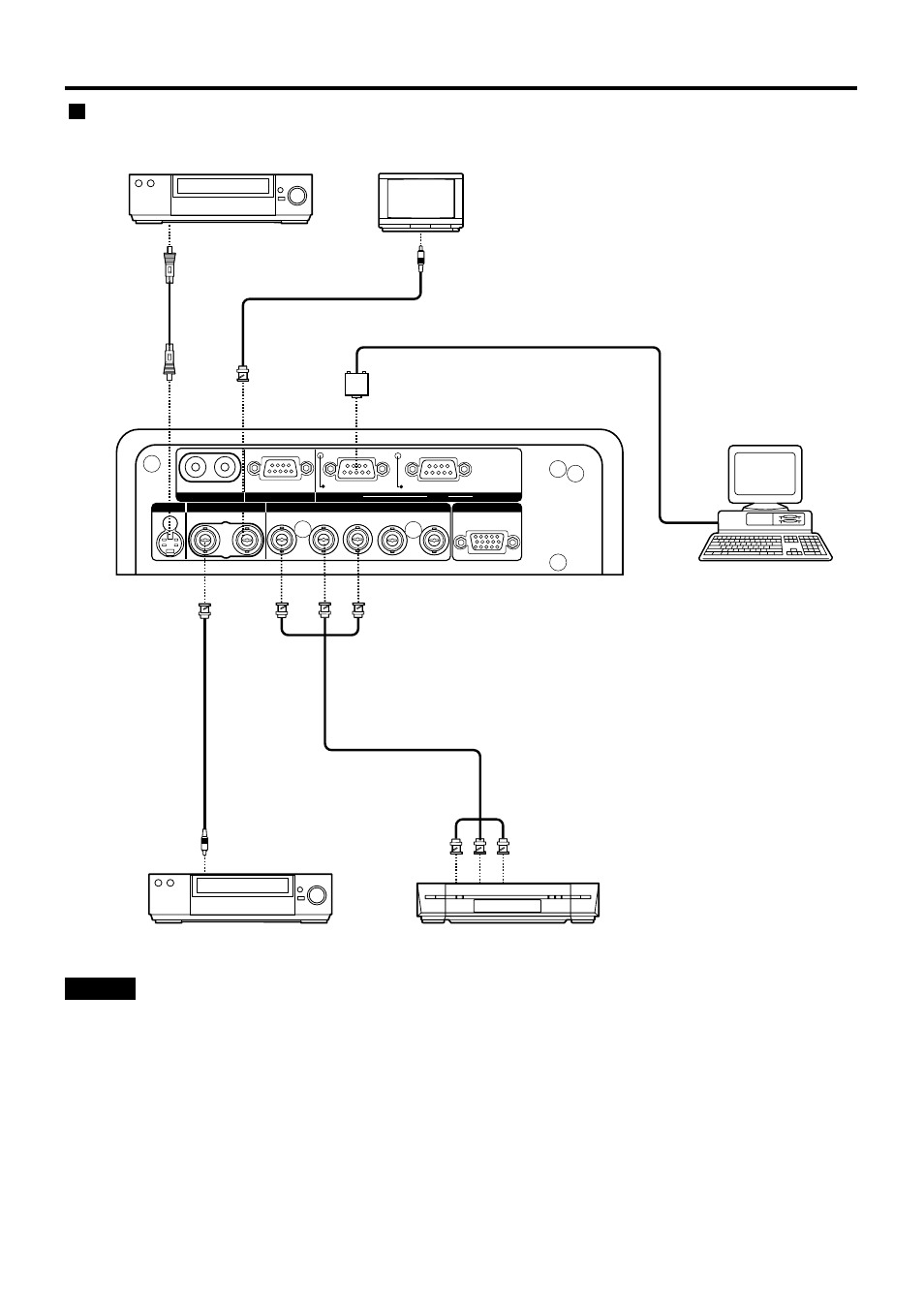

Example of connecting with VIDEO devices
• When connecting with a video deck, be sure to use the one with a built-in time base corrector (TBC)
or use a TBC between the projector and the video deck.
• If nonstandard burst signals are connected, the image may be distorted. If this is the case, connect a
TBC between the projector and the video deck.
Attention
