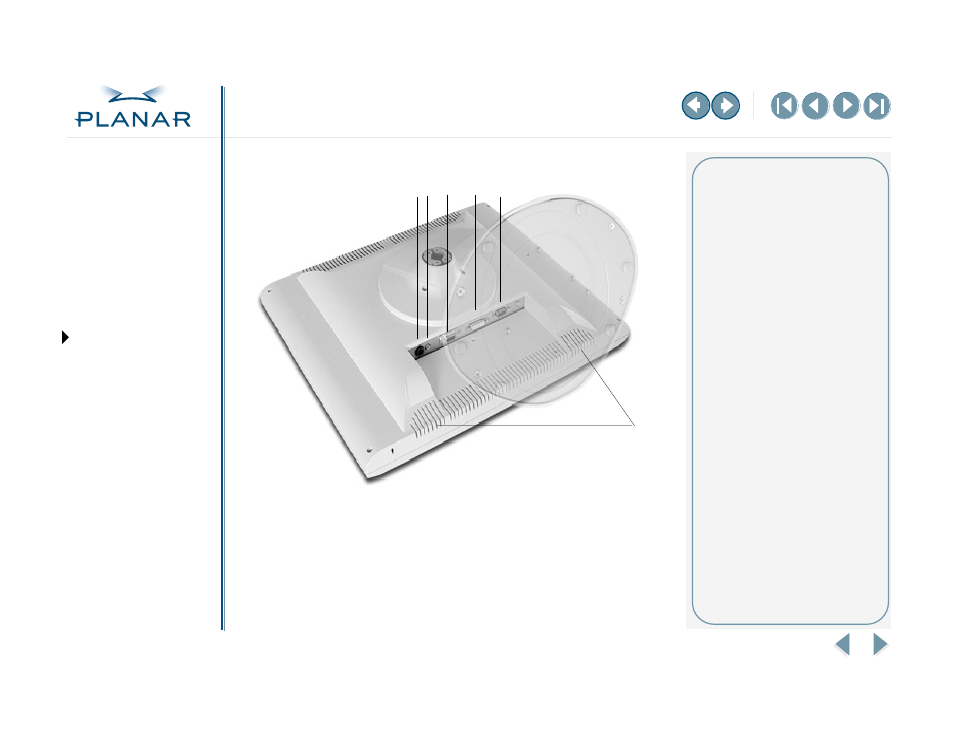

Back panel
6
1 2 4 5 3
Legend
1 Power input (locking mini
DIN connector)
Port for the power connector.
2 Audio Line In
Jack for the audio cable. (You can
also connect the CD-ROM Line Out
to this jack.)
3 Touchscreen port
Port for the RS-232 cable; used to
operate the optional touch screen.
This cable is provided with the
Optional Touch Screen package.
4 DVI connector
Port for digital video cable.
5 VGA connector
Port for a 1.5-meter cable with two
15-pin D-Sub VGA connectors.
6 Stereo speakers
Two transmission channels
for sound.
