Connecting to a cable box or satellite receiver (1)
If you are using a cable box or satellite receiver with only a few scrambled channels, follow the setup on this page
1
. If
many or all the channels are scrambled, we recommend using the setup on the following page.
Using the setup on this page you can:
• Record unscrambled channels by selecting them on this recorder.
• Record scrambled channels by selecting them on the cable box/satellite receiver and using the Auto Start
Recording feature (see Automatic recording from a satellite tuner on page 42).
• Watch one channel while recording another.
Important
• Do not connect this recorder ‘through’ your VCR, satellite receiver or cable box. Always connect each component
directly to your TV or AV amp/receiver.
1 Connect RF antenna cables as shown.
This enables you to watch and record TV channels.
2 Connect the AUDIO and VIDEO OUTPUT jacks (1
or 2) on this recorder to a set of audio/video inputs
on your TV using a set of A/V cables (as supplied).
This enables you to watch the output from this recorder.
3 Connect the audio/video output of your cable
box/satellite receiver to the INPUT jacks on this
recorder using a set of A/V cables.
This enables you to record scrambled TV channels.
Note
1. The diagram shows standard video connections, but you can alternatively use the S-video or component video connections if they’re available.

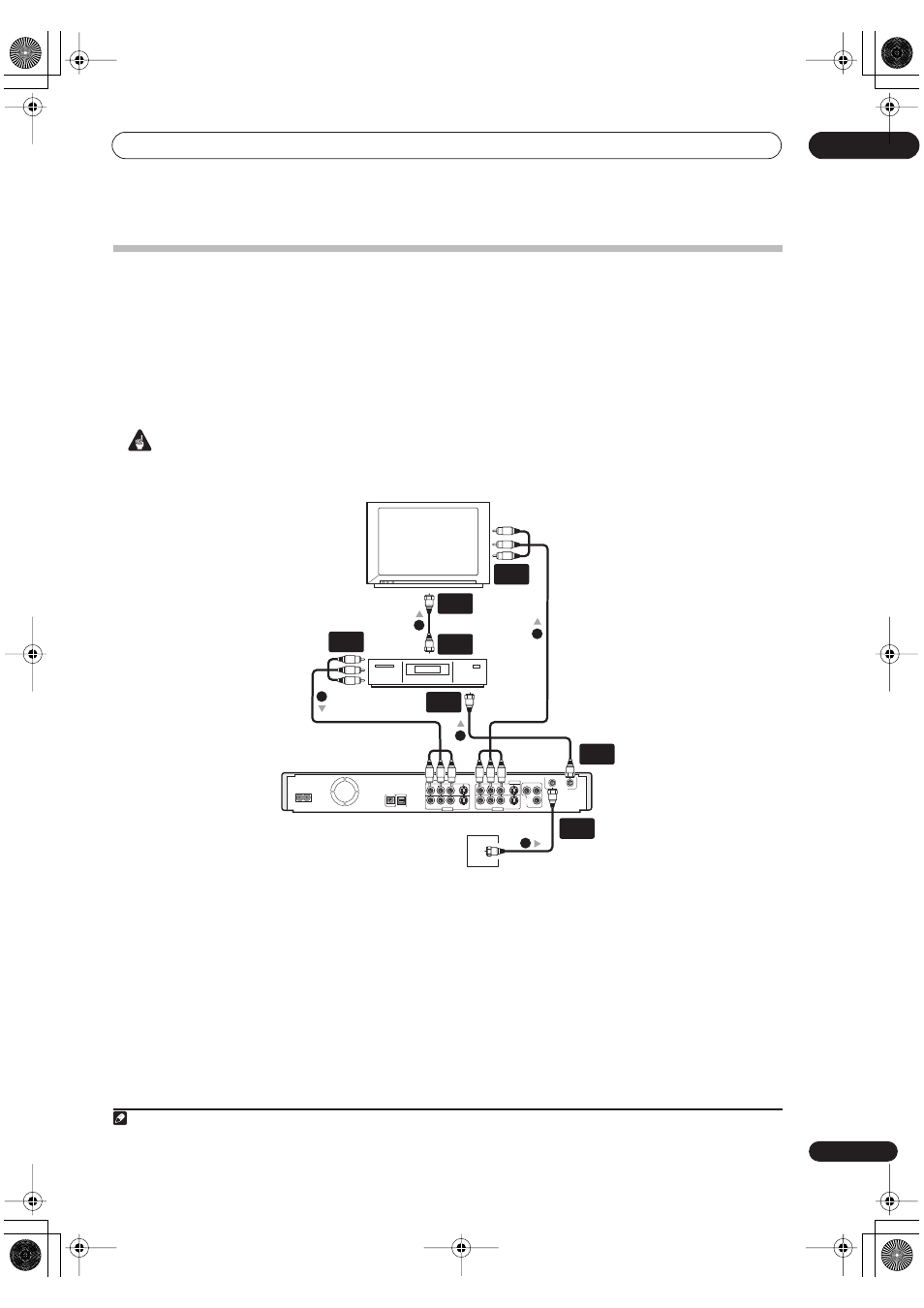

Cable box/
Satellite receiver
ANTENNA
DIGITAL OUT
CONTROL
IN OPTICAL
INPUT 1/AUTO START REC
S-VIDEO VIDEO AUDIO
L R
INPUT 3
OUTPUT 1
OUTPUT 2 S-VIDEO VIDEO AUDIO
L R
COMPONENT VIDEO OUT
Y P B
P R
IN OUT AC IN
Antenna/cable TV
wall outlet
ANTENNA
IN
ANTENNA
OUT
ANTENNA
IN
ANTENNA
OUT
ANTENNA
IN (RF IN)
A/V
OUT
A/V
IN 1
1
1
1
2
3
TV
