Introduction 91
Models 2603, 2621, and 2635 User Manual 8 • DHCP and DNS Configuration

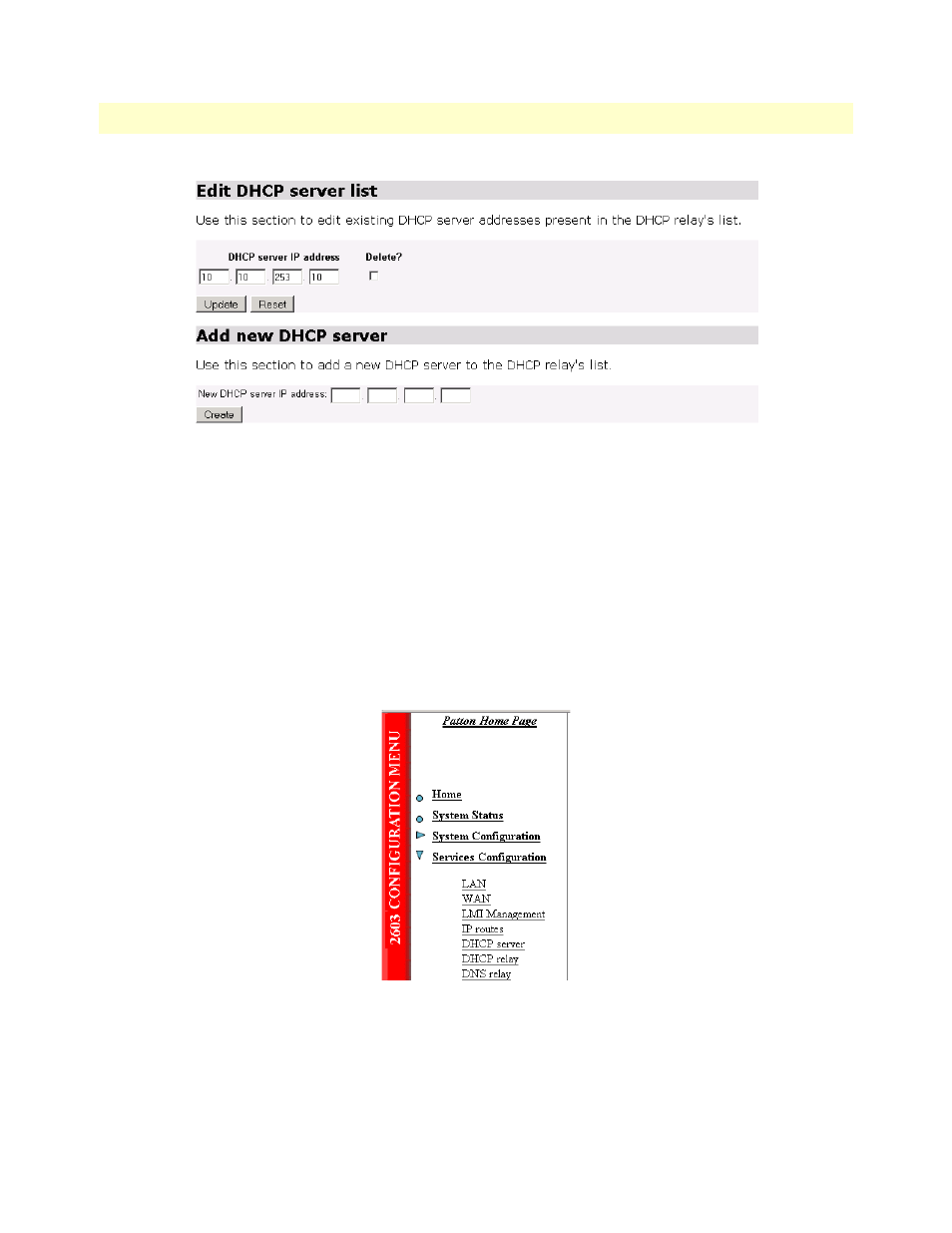

Figure 63. DHCP Relay server list
DNS Relay
The DNS Relay webpage contains a configurable list of DNS server IP addresses. The OnSite’s DNS Relay
forwards DNS queries from a client to a pre-defined DNS server and DNS server responses to the client.
You can configure the DNS Relay for two IP addresses. These are for access to primary and secondary DNS
servers.
Configuring the DNS Relay
Go to the DNS Relay webpage by following the hyperlink path ‘Configuration Menu’ > Services Configura-
tion > DNS Relay. (See
figure 64 .)
Figure 64. Hyperlink path to the DNS Relay webpage
Enter the IP address of the primary DNS server (see figure 65 ) and click on the Create button. Similarly enter
the IP address of the secondary DNS server.
