WAN Service Configuration 53
Models 2603, 2621, and 2635 User Manual 6 • WAN Services

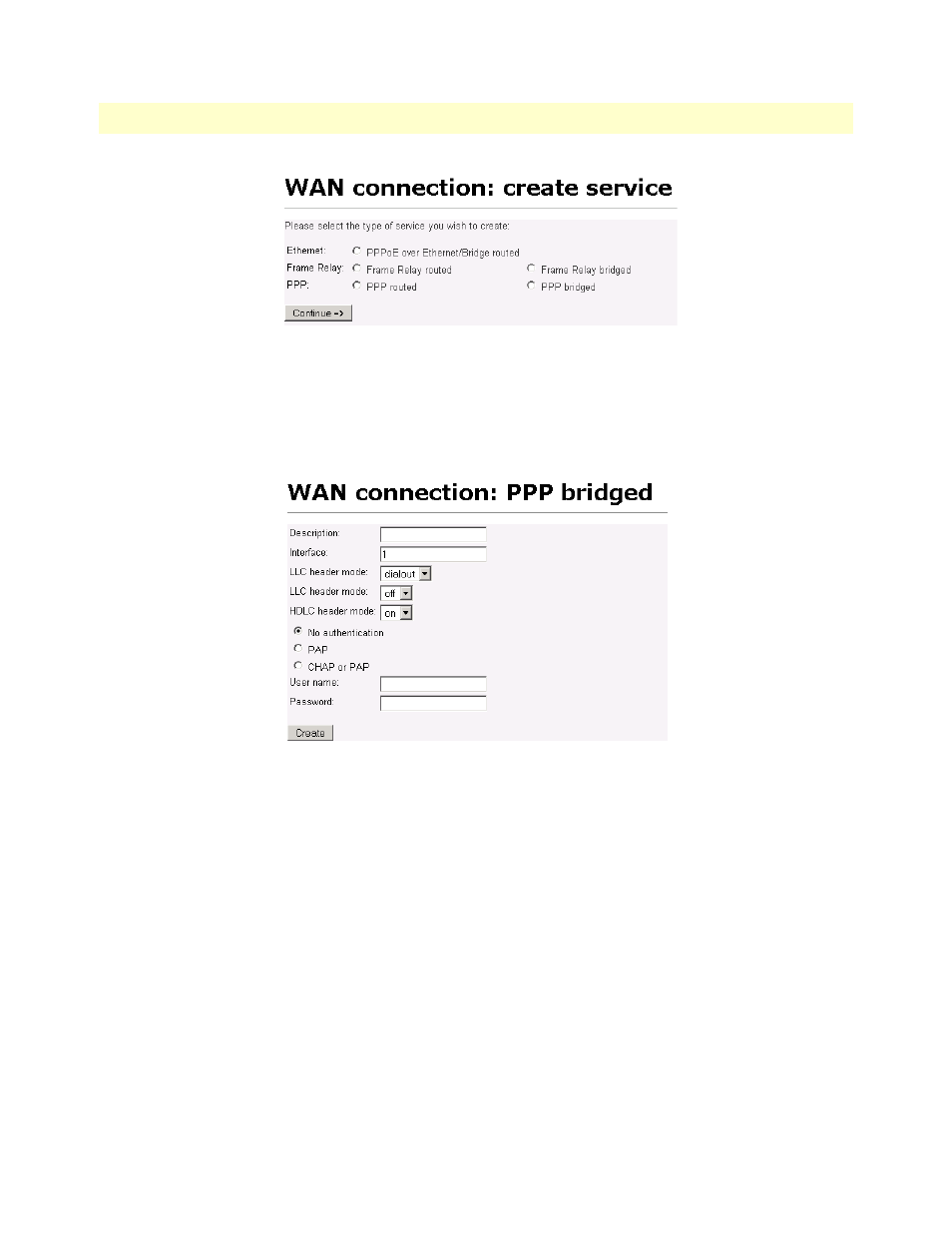

Figure 28. WAN services’ options
4. In the Description field, enter the description you wish. This is a mandatory field. Without a description,
you cannot create the WAN service.
Verify the settings to be:
• Interface = 1
• LLC header mode = dialout
• LLC header mode = off
• HDLC header mode = on
• No authentication
• Leave User name and Password blank.
Click on Create .
Central Site Configuration. If the central site also has an OnSite, you may configure as described in this sec-
tion. Refer to the web page images for the Remote OnSite configuration above.
In this example, the IP address of interface ip1 is changed to 192.168.100.3/24.
