WAN Serial Port Configuration 47
Models 2603, 2621, and 2635 User Manual 5 • Serial Port Configuration

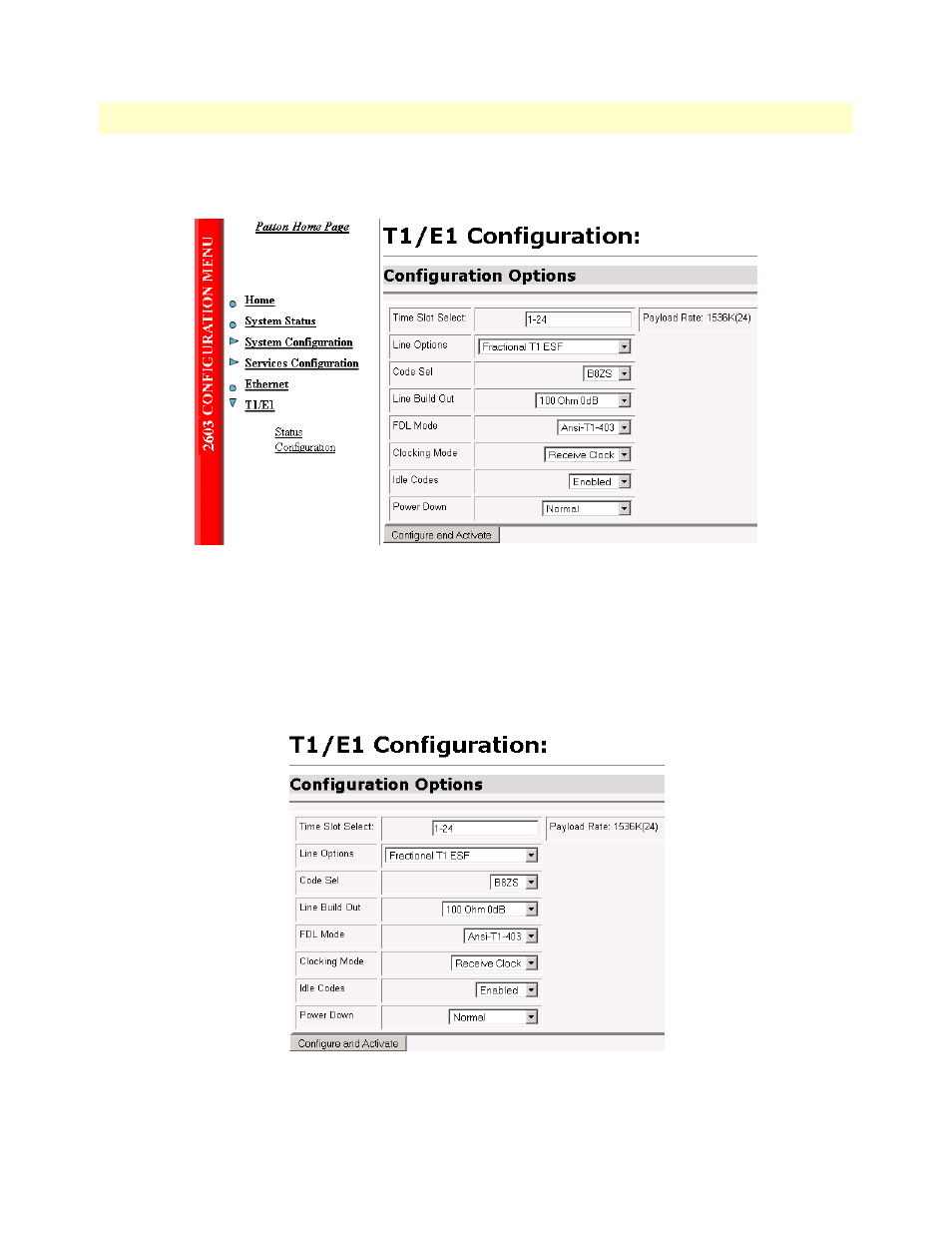

Figure 23. Model 2603 T1/E1 WAN port configuration parameters
Configuring the OnSite Series 2603 for T1 Operation
Web Configuration. Launch Netscape, Internet Explorer or similar web browser, type the IP address of the
2603, enter username
superuser and password superuser . From the main page click on the T1/E1 > Configuration.
(See figure 24 .)
Figure 24. T1 configuration
