Introduction 86
Models 2603, 2621, and 2635 User Manual 8 • DHCP and DNS Configuration

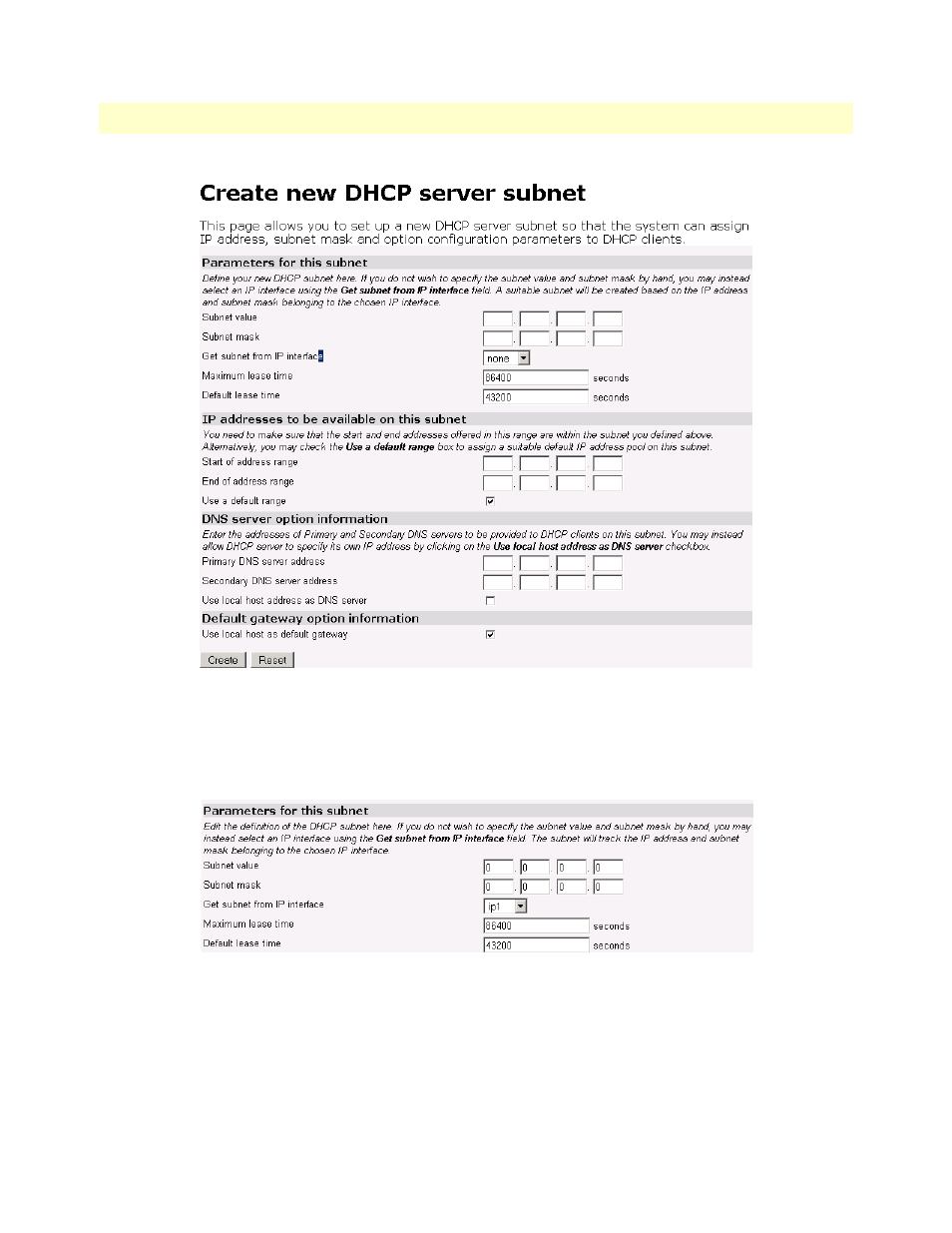

Figure 56. DHCP server configuration web page
Parameters for the DHCP Server subnet
Four parameters are in the section for defining the DHCP subnet. (See
figure 57 .)
Figure 57. DHCP Server subnet parameters
The first two parameters are applicable when you will define the subnet.
• Subnet value: It is necessary to enter the selected value here and the ‘Subnet mask’ if you do not ‘Get subnet
from IP interface.’ See description for the 3rd parameter.
• Subnet mask
