Pico Macom SIRD-FTA - Manual (Page 36)

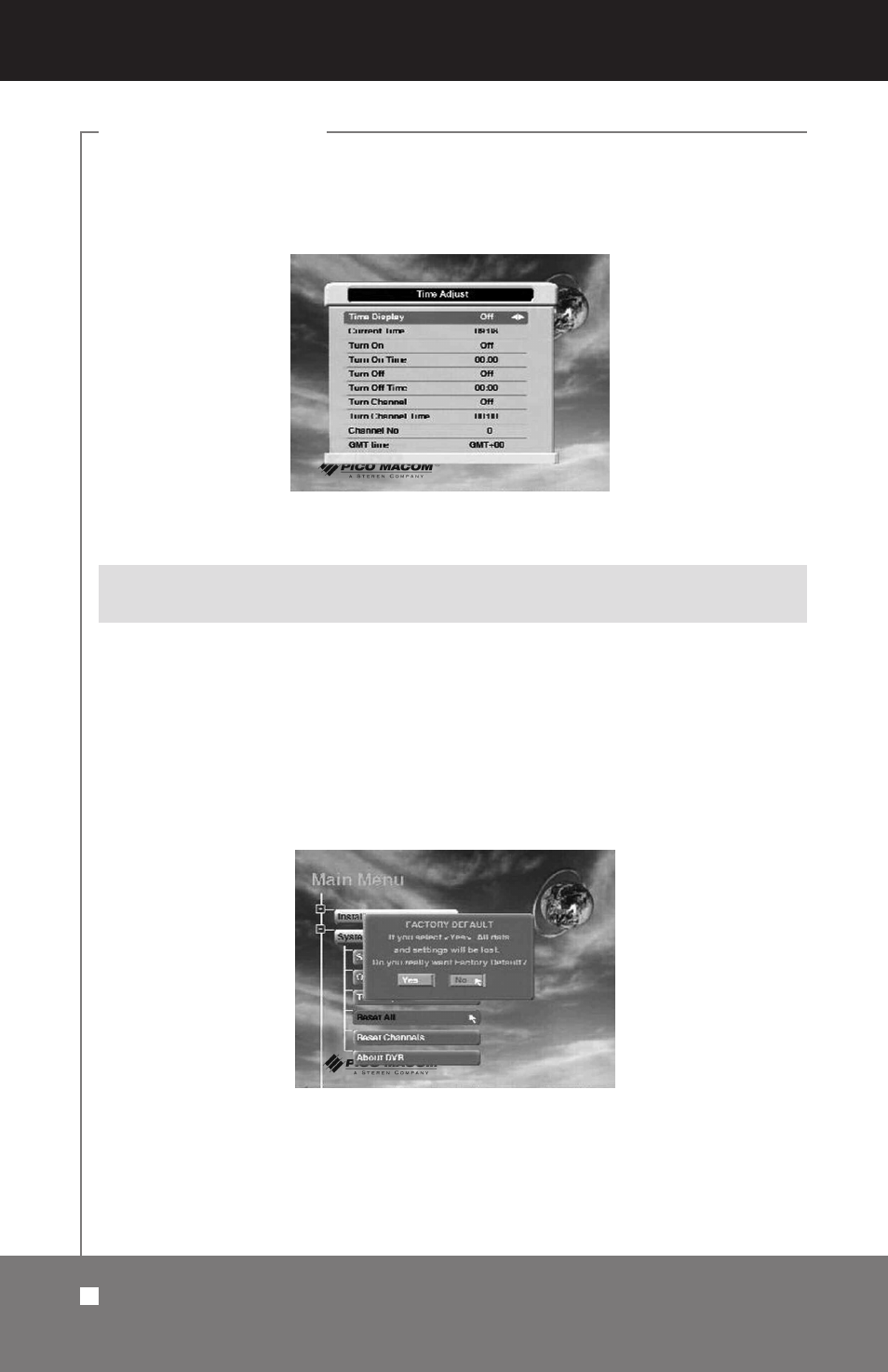

Time Adjust
Select in by using CH+/–. Press OK to view the
sub-menu as shown in the following figure.
A. Set Turn On, Turn Off and Turn Channel ON or OFF by using CH+/– or VOL+/– .
Note: “Time Display”: Set On and the current time will appear on the left top of
the screen.
B. Set Current Time, Turn On Time, Turn Off Time and Turn Channel Time by
using CH+/–, VOL+/– and numeric keys. Press OK to return to the previous menu.
Reset All
Select in by using CH+/–. Press OK to view the sub-
menu as shown in the following figure.
Select by using VOL+/–. Press OK, and all data and settings will be
reset to factory default.
36
4.4 System Settings
MAIN MENU
