D. 22kHz
If you are using two antennas connected to a 22kHz tone switch box, you can
either supply 22kHz by setting “ON” or select antenna by setting “OFF.”
If the LNB frequency is set to universal, the 22kHz will operate automatically.
E. 0/12V
If you are using two antennas connected to an antenna switch box. you
can either pick up 12V by setting “ON” or select antenna by setting “OFF.”
F. DiSEqC
If the DiSEqC box is DiSEqC 1.0, the positioner should be set at Disable, then
select antenna input LNB1-LNB4, Burst A or Burst B. If the DiSEqC box is
DiSEqC1.2, the positioner should be set at Enable, then select Moto to
set data.
G. Positioner
Disable:
using DiSEqC 1.0
Enable: using DiSEqC 1.2
a. Select by using CH+/–.
b. Select by using VOL+/–. Press OK to view the sub-menu as
shown in the following figure.

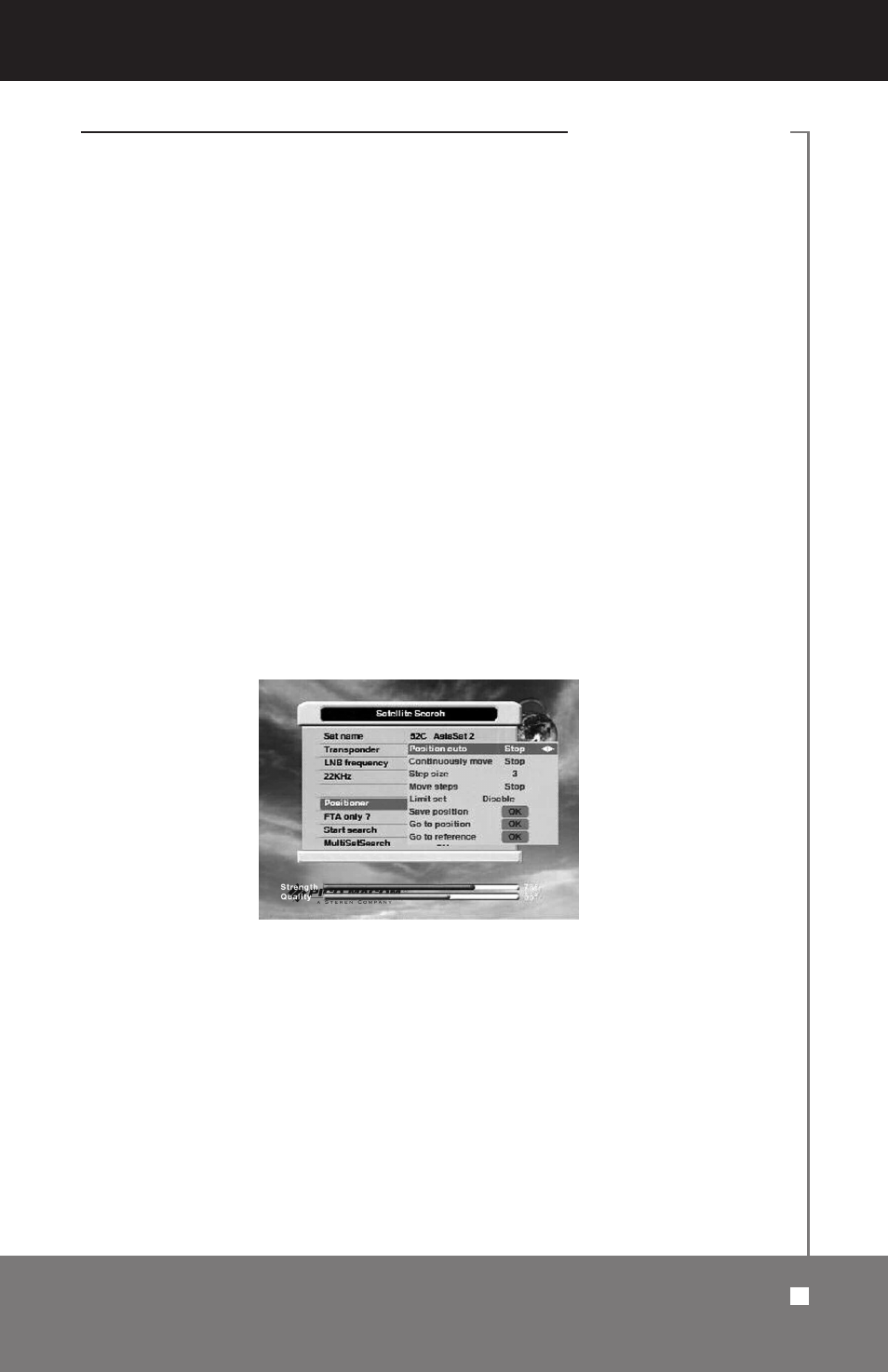

Positioner Settings
1. Position Auto
a. Select . Then select the direction by using VOL+/–.
b. During moving, press any key if you want to stop.
c. When you find the signal, it will stop automatically.
d. After finding the signal, use to find the best position.
e. When you have the best position of the dish, select to save.
