Quickdraw, Boiler water heater – PVI Industries QUICKDRAW PV500-26 User Manual
Page 5
QUICKDRAW
Boiler Water Heater
5
PV500-26 06/12

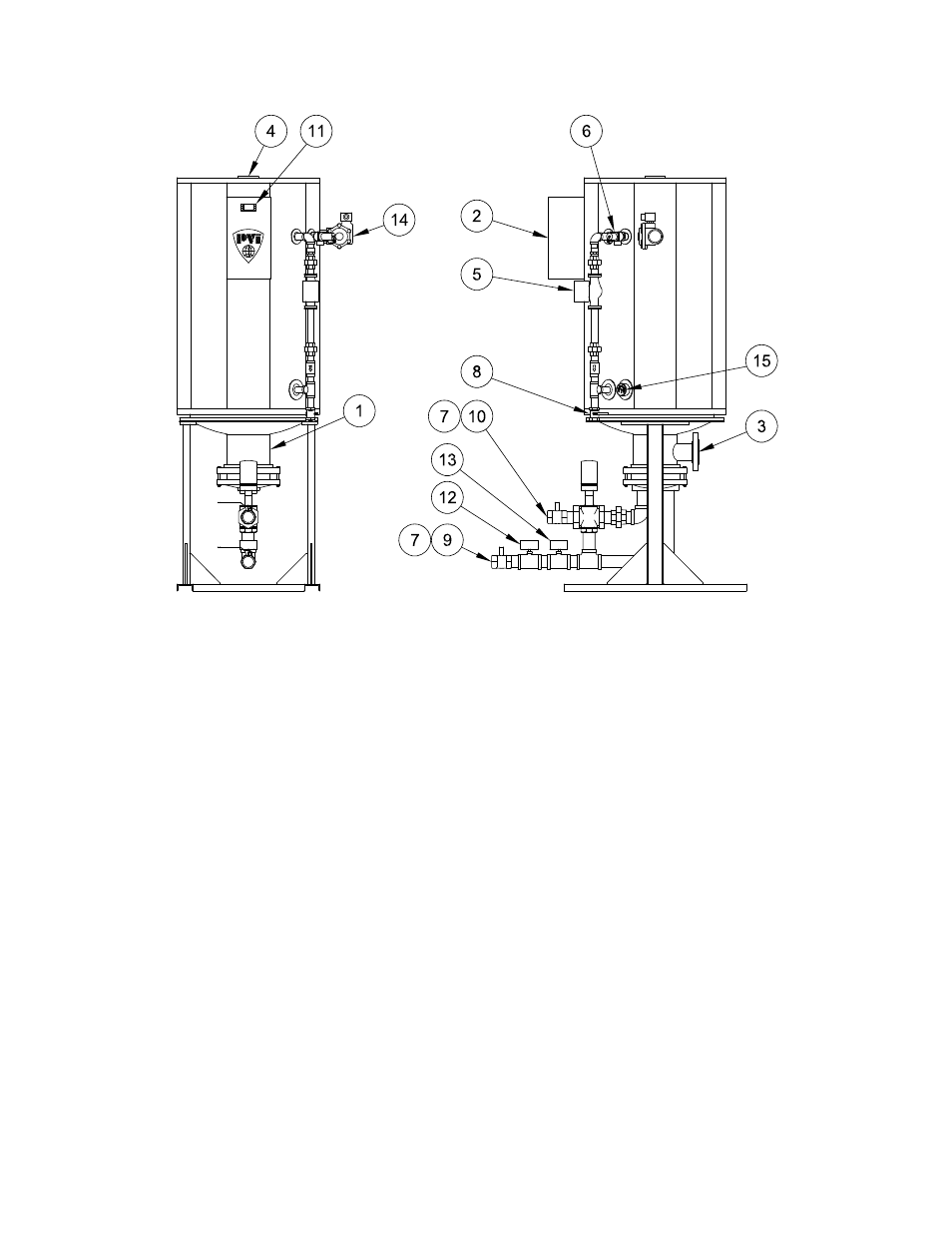

Typical QuickDraw
®
Instantaneous Construction
1. U-tube Heat Exchanger
10. Boiler Water Outlet
2. Control Enclosure
11. Electronic Operating Control *
3. Potable Water Inlet
12. Boiler Water Temperature Gauge *
4. Potable Water Outlet
13. Boiler Water Pressure Gauge *
5. Intra-tank Circulator *
14. Tank Purge Valve *
6. Relief Valve (CSA *)
15. Tank Pressure Gauge *
7. Isolation Shutoff Valve *
8. Tank Drain Valve
* Optional
9. Boiler Water Inlet
** Supplied by Others
(shown with dashed lines)
Note: Components, controls and connection locations may vary.
