Quickdraw, Boiler water heater – PVI Industries QUICKDRAW PV500-26 User Manual
Page 4
QUICKDRAW
Boiler Water Heater
4
PV500-26 06/12
2
PRODUCT
DESCRIPTIONS

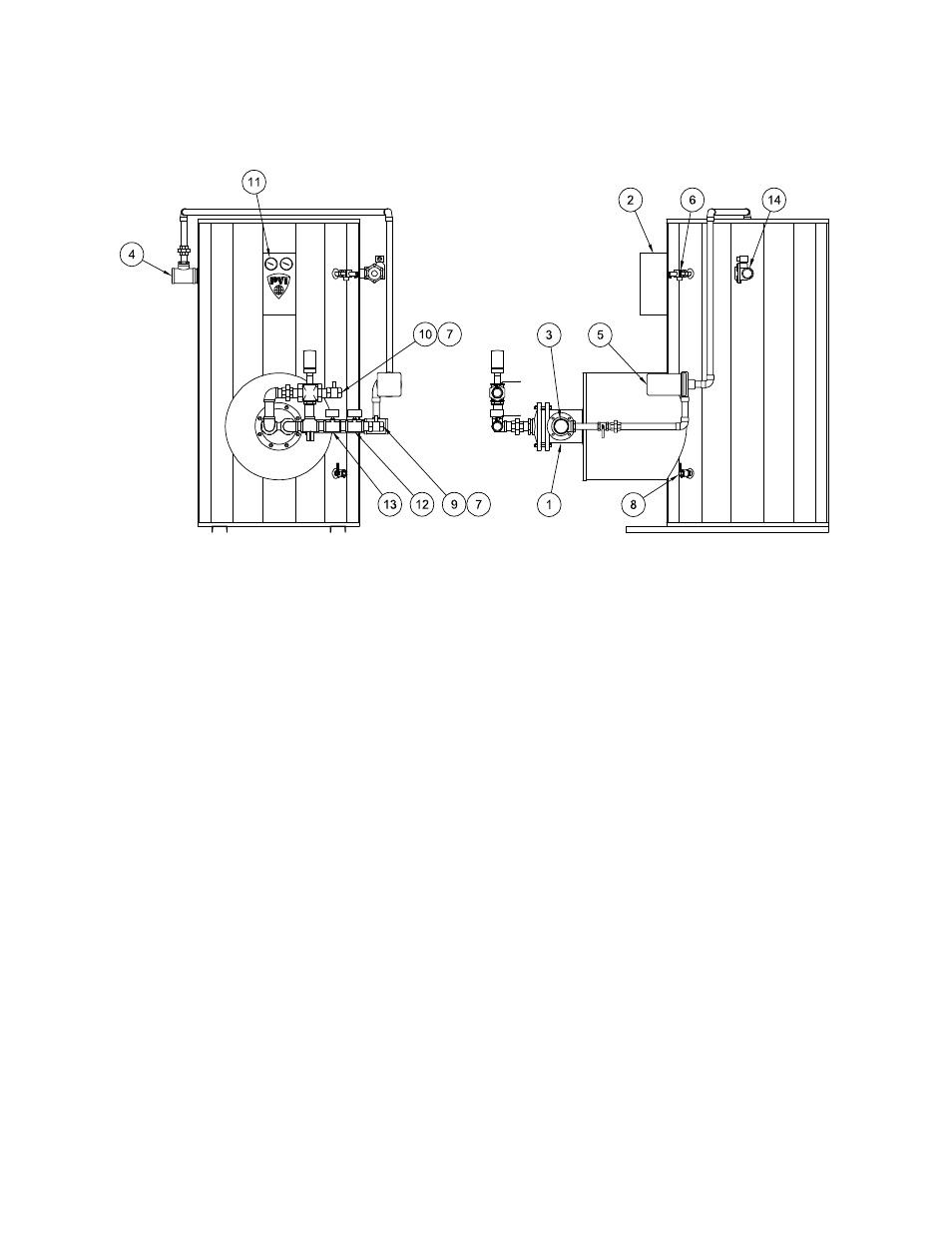

Typical QuickDraw
®
Storage Construction
1. U-tube Heat Exchanger
10. Boiler Water Outlet
2. Control Enclosure
11. Tank Temperature and Pressure Gauges *
3. Potable Water Inlet
12. Boiler Water Temperature Gauge *
4. Potable Water Outlet
13. Boiler Water Pressure Gauge *
5. Intra-tank Circulator *
14. Tank Purge Valve *
6. Relief Valve (CSA *)
7. Isolation Shutoff Valve *
* Optional
8. Tank Drain Valve
** Supplied by Others
9. Boiler Water Inlet
(shown with dashed lines)
Note: Components, controls and connection locations may vary.
