4. When replacing the heat exchanger head, use a torque wrench to tighten the bolts/studs and nuts. Use the
following chart as a guide. All torque values apply to well-lubricated nut bearing surfaces.
TIGHTENING TORQUES
COMPRESSED FIBER GASKETS
Bolt
Dia.
Recommended
Torque
ft-lbs
Torque
Increment
Max.
Torque
1/2" 40
5
60
5/8" 80
5 120
SPIRAL WOUND GASKETS
Bolt/Stud
Dia.
Recommended
Torque
ft-lbs
Torque
Increment
Max.
Torque
1/2" 40
5
60
5/8" 80
5 120
3/4" 120
5
200
7/8" 200
10 320
1" 300 10 490
1 1/8"
450
10
710
1 1/4"
600
10
1000

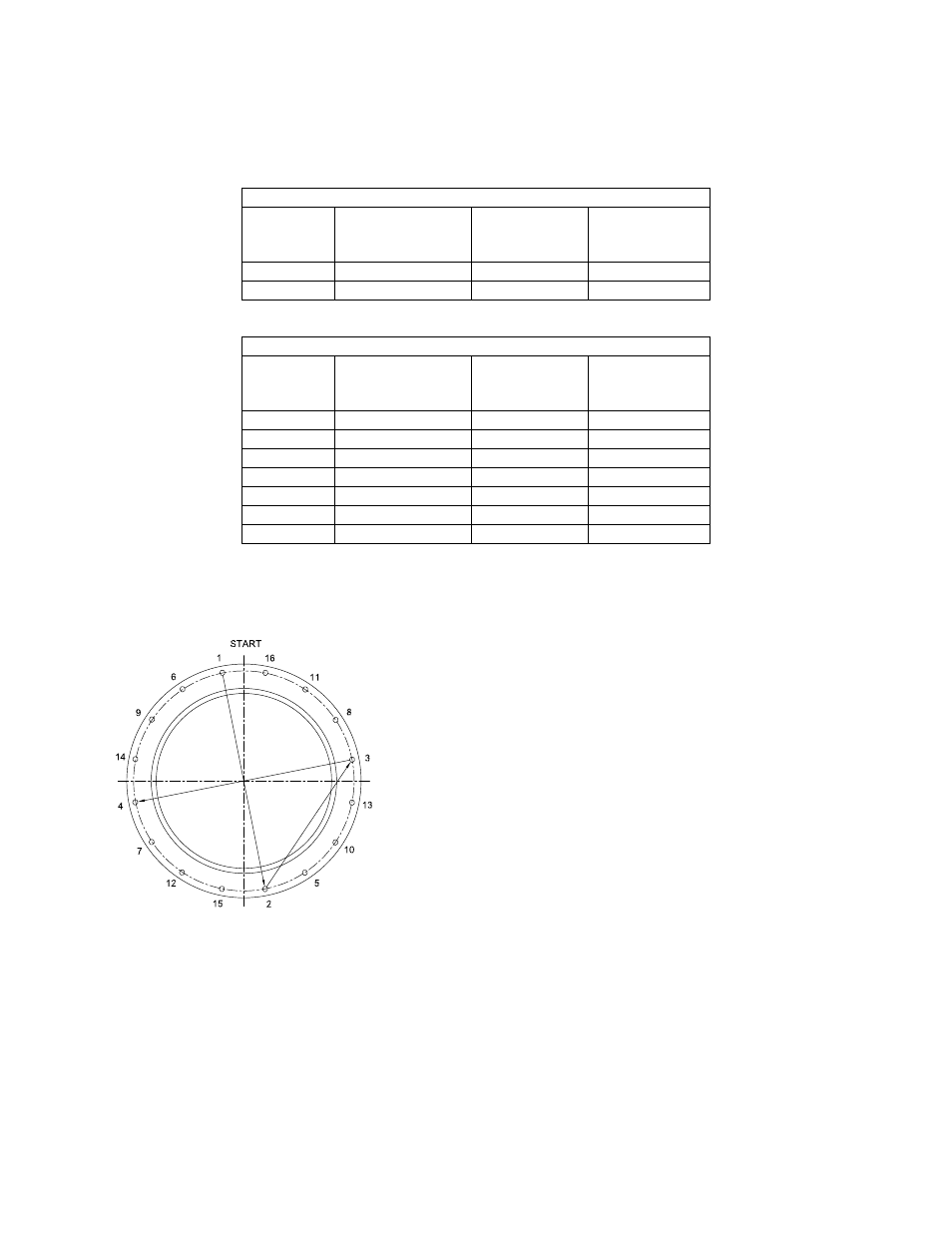

5. Tighten uniformly and in a diametrically staggered pattern as illustrated below:
WARNING: Follow the proper tightening sequence,
torque increments and maximum torque values.
Failure to follow these requirements can cause non-
repairable damage to gaskets or heat exchangers
and can result in leaking, property damage,
personal injury or loss of life
.
