CTM-MS4

Page - 8 -

Installation Manual

Mounting Bracket Installation

NOTE: Proper installation procedure by qualified personnel as outlined in the installation instructions must be

adhered to. Failure to do so could result in serious personal injury and possible damage to the flat
panel.

WARNING: INVERT THE FLAT PANEL PLACE IT ON A SOFT, FLAT SUFRACE TO PREVENT

DAMAGE TO THE FLAT PANEL. USE A BLANKET, FOAM, ETC. FAILURE TO DO SO
WILL RESULT IN DAMAGING THE FLAT PANEL. DO NOT LAY THE FLAT PANEL ON
THE FLOOR WITHOUT ANY PROTECTION TO THE GLASS. THE FLAT PANEL IS
HEAVY AND FRAGILE. AT LEAST TWO QUALIFIED PERSONNEL ARE STRONGLY
RECOMMENDED FOR INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO
COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT
PANEL.

1.

Once the flat panel is inverted, use a measuring tape to find the center of your flat panel measuring from
outside to outside of the flat panel (Figure 4).

2.

Using a pencil lightly mark the center of your flat panel (Figure 5).



CL

L

C

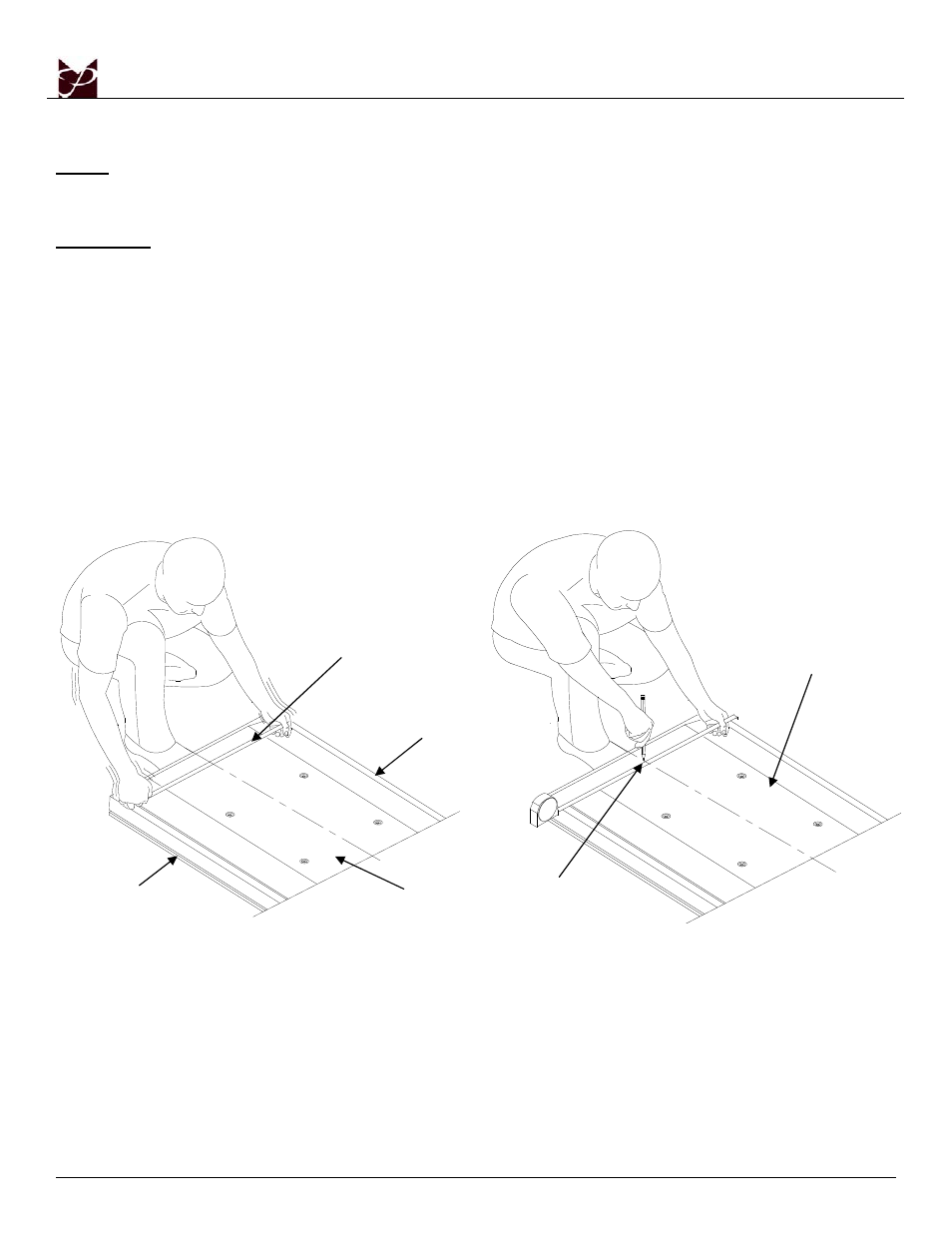

Figure 4

Figure 5


Top of flat panel

Measuring tape

Inverted flat panel

Bottom of flat panel

Inverted flat panel

Mark the center
of the flat panel
