CTM-MS4
Installation Manual Page - 11 -
CTM-MS4 Installation
1. Using a (commercially available) wood stud finder, locate the 16" or 24" stud centers behind the wall
(Figure 12).
2. Once found, make a pencil marking on the center of the wood studs (Figure 13).
3. Place the wall plate to the reference line and mark the lag bolt mounting points through the wall plate slots
on the wall (see NOTE below).
16"
16"

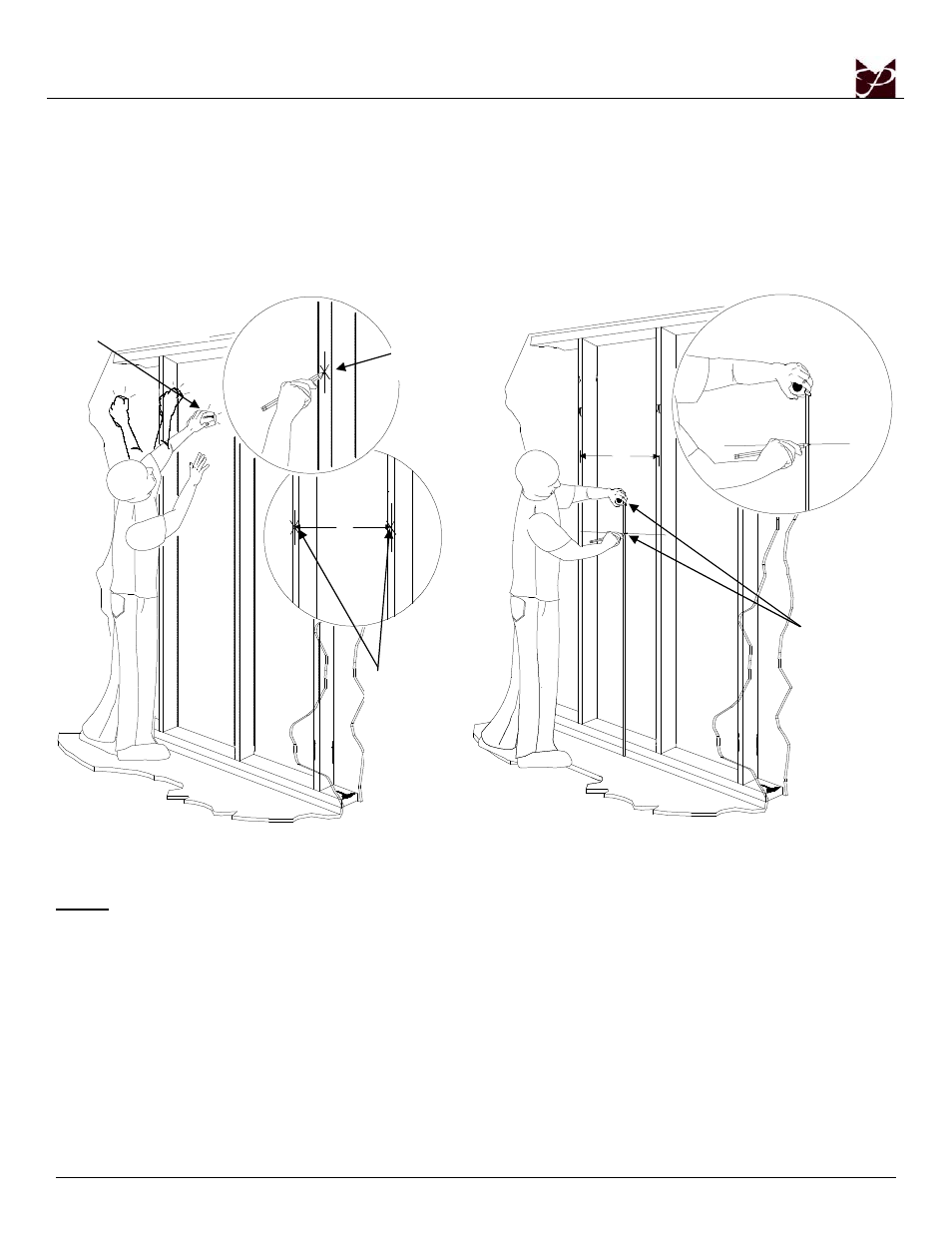

Figure 12 Figure 13
NOTE: Three studs that are 24” apart will need nine (9) lag bolts. Four studs that are 16” apart will need
twelve (12) lag bolts.
Wood studs
behind the
wall
structure.
Wood Stud Finder
(Commercially available)
Measure and
mark the
viewing height
desired on the
wall.
Mark the wall
and the center
of the wood
studs.
