CTM-MS4

Page - 10 -

Installation Manual

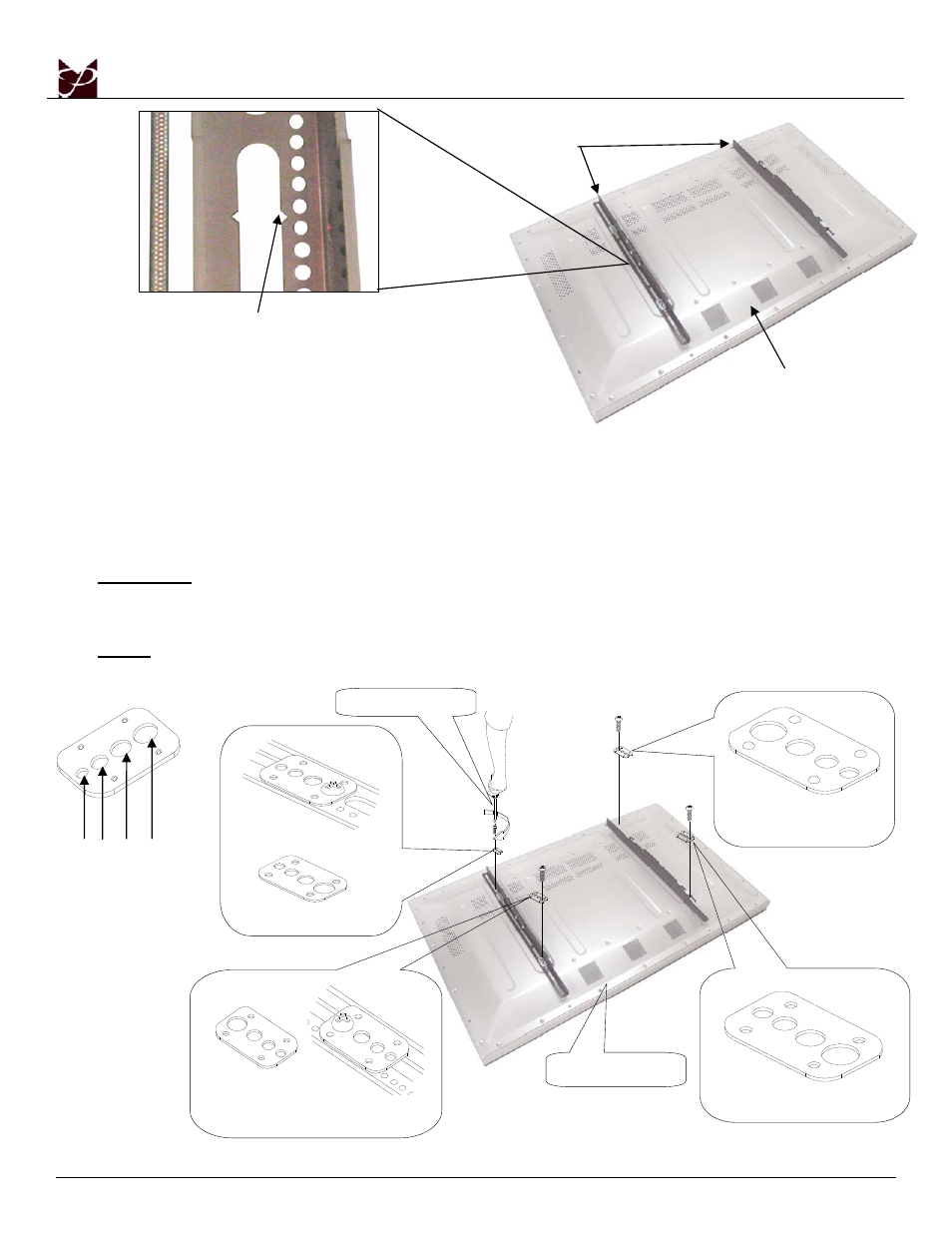

7.

The Griplate™ has M4, M5 M6 and M8 hole patterns to fit the hardware that your flat panel requires.

EXAMPLE: If your plasma uses M8 x 20 Phillip screws, use the M8 mounting points (Figure 10).
8.

Once the mounting brackets are aligned, secure the Griplate™ to the flat panel. Use (1) Griplate™ per
mounting point (Figure 11).

NOTE: The dimples of the top Griplate™ have to be facing up and the bottom Griplate™ dimples must

be facing down.

Dimples Facing Up

Dimples Facing Down

Inverted Flat Panel

Dimples Facing Down

Dimples Facing Up

Phillips Screw Driver

Figure 11

Figure 10

M4 M5 M6 M8

Bottom of the
Flat Panel

Mounting Bracket

Notched Cut Out

Figure 8

Figure 9
