CTM-MS4

Installation Manual

Page - 7 -

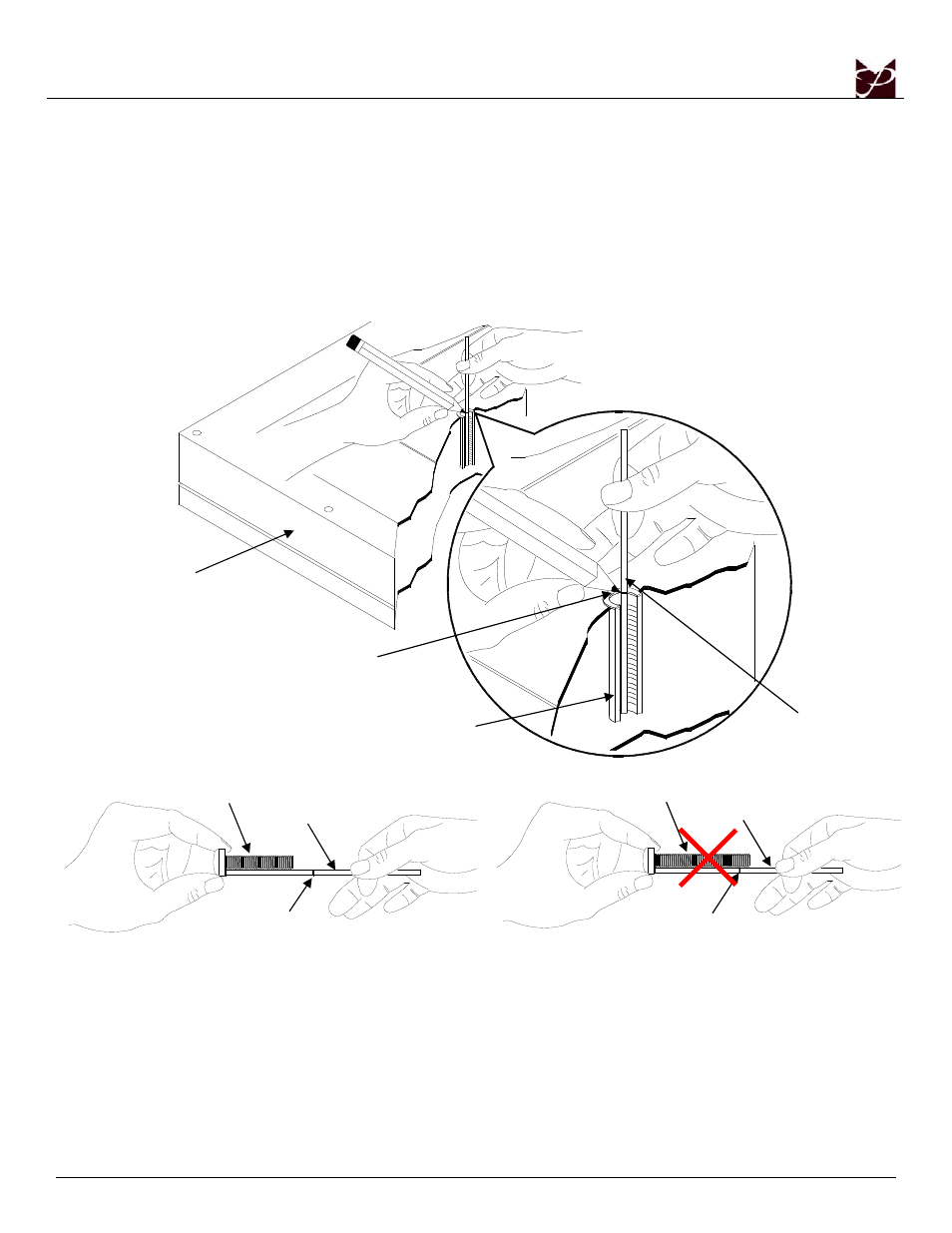

Thread Depth Indicator

1.

Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat panel to
make sure the inserts measure the same full depth and mark it (Figure 1).

2.

Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied).

3.

If your selected screw is longer than the marking on the thread depth indicator, DO NOT USE this screw.

4.

The screw length must not bypass the marking. Select another screw size (Figure 2 and 3), until you find
one that comes closest to your mark without going past the mark on the Thread Depth Indicator.

Figure 1

Figure 2

Figure 3

Marking the depth

Thread depth

indicator

Thread insert

Inverted flat panel
display

Screw

Marking

Thread depth
indicator

Screw

Thread depth
indicator

Marking
