Disassembling the Liebert DS for Transport
66

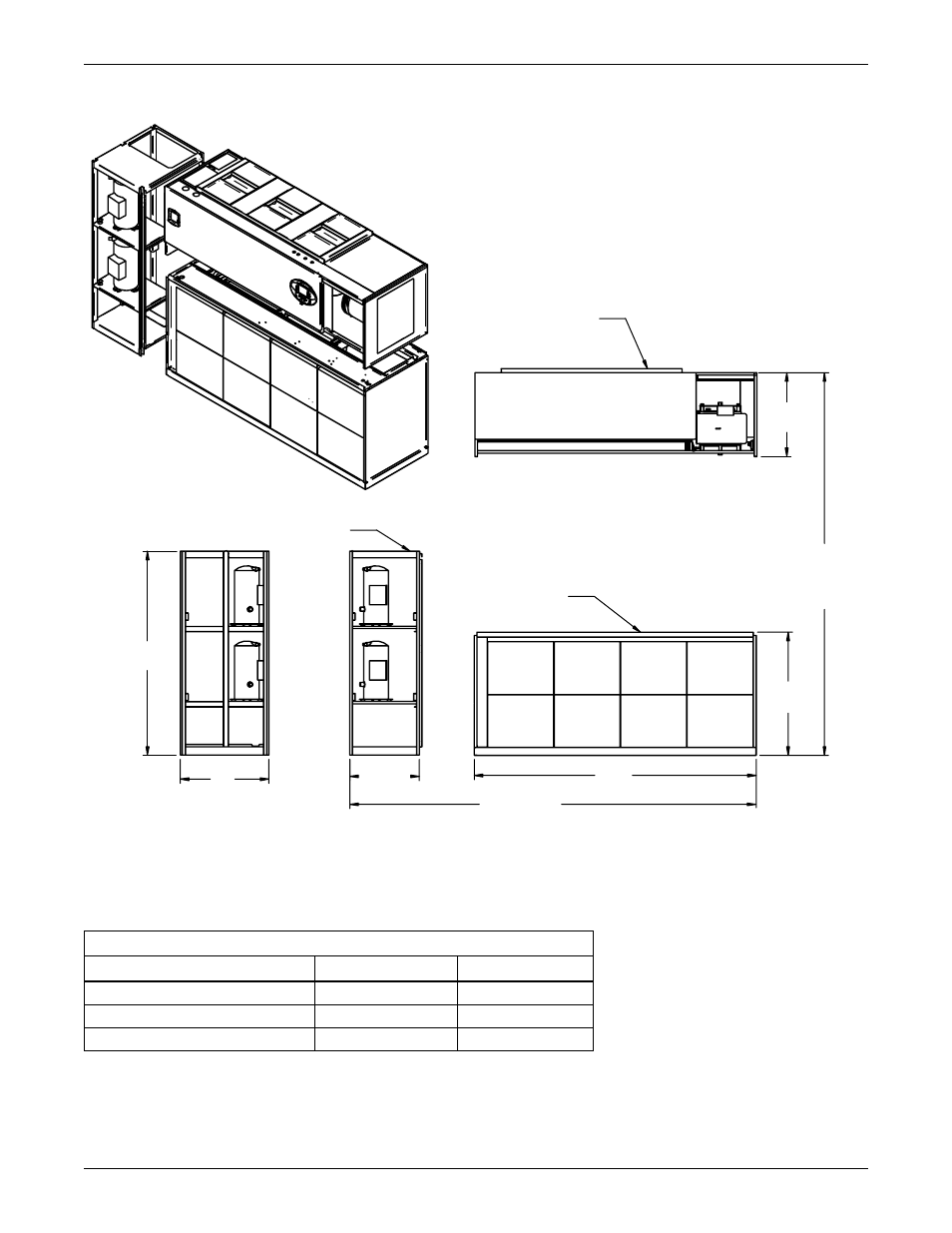

Figure 53 Component dimensions—upflow, air-cooled, 105kW (30 ton), scroll/digital scroll compressor
models
Table 43 Component weights—upflow, air-cooled, 105kW (30 ton), scroll/digital scroll compressor
models
Dry Weight, Approximate, Including Panels, lb (kg)
Component Air-Cooled Dual-Cool
Compressor Assembly 830 (376) 830 (376)
Blower & Electric Box Assembly 1080 (490) 1080 (490)
Filter & Coil Assembly 970 (440) 1300 (590)
DPN001255
REV 0
31-1/4"
(794mm)
33"
(838mm)
76"
(1930mm)
26"
(660mm)
Filter & Coil Assembly
Compressor
Assembly
Blower & Electric
Box Assembly
NOTE: Drawing views are simplified with panels removed to show overall dimensions.
See disassembly and handling instructions in installation manual.
105"
(2667mm)
131" (3327mm
Assembled Length
45-13/16"
(1164mm)
76"
(1930mm)
Assembled
Height
