Liebert DS Components and Nomenclature
3
1.0 L
IEBERT
DS C
OMPONENTS AND
N
OMENCLATURE

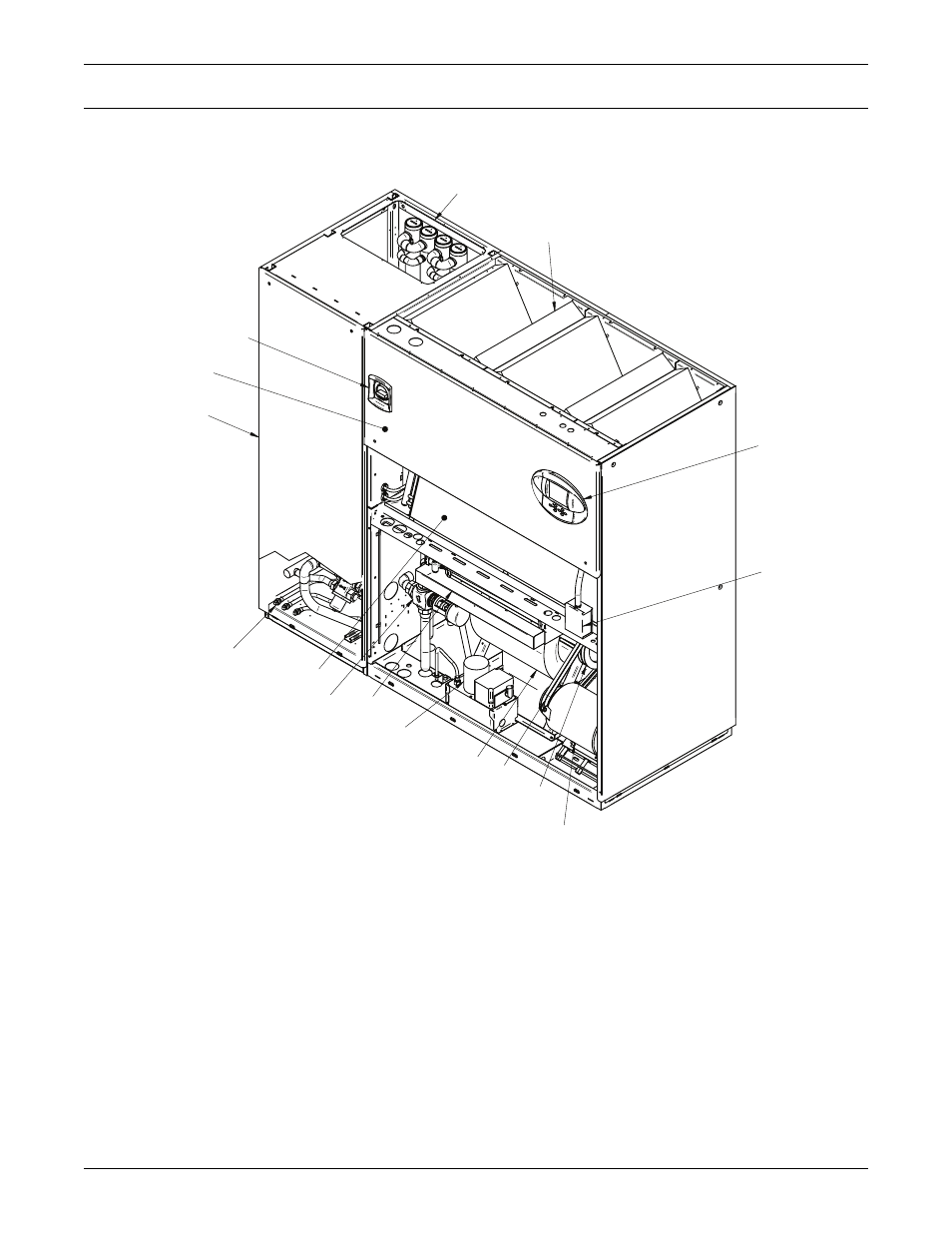

Figure 1 Downflow model component locations
11
9
2
4
16 10
12
6
8
7
13
1
3
14
5
15
10. Infrared Humidifier, optional
11. Disconnect, optional
12. Condensate Pump, optional
13. Smoke Sensor, optional
14. Condenser Cleanout Plugs,
fluid-cooled units only
15.Condenser Drain Plugs,
fluid-cooled units only
16. Econ-O-Coil Valve, GLYCOOL/Dual Cooling 1. iCOM Control Display
2. Electric Box
3. Filters
4. Evaporator Coil
5. Motor
6. Blower
7. Fan Pulley
8. Motor Sheave and Belts
9. Compressor Section
DPN000958
Rev. 1
