Liebert OpenComms Web Card - Manual

Liebert Intellislot ® Web Card

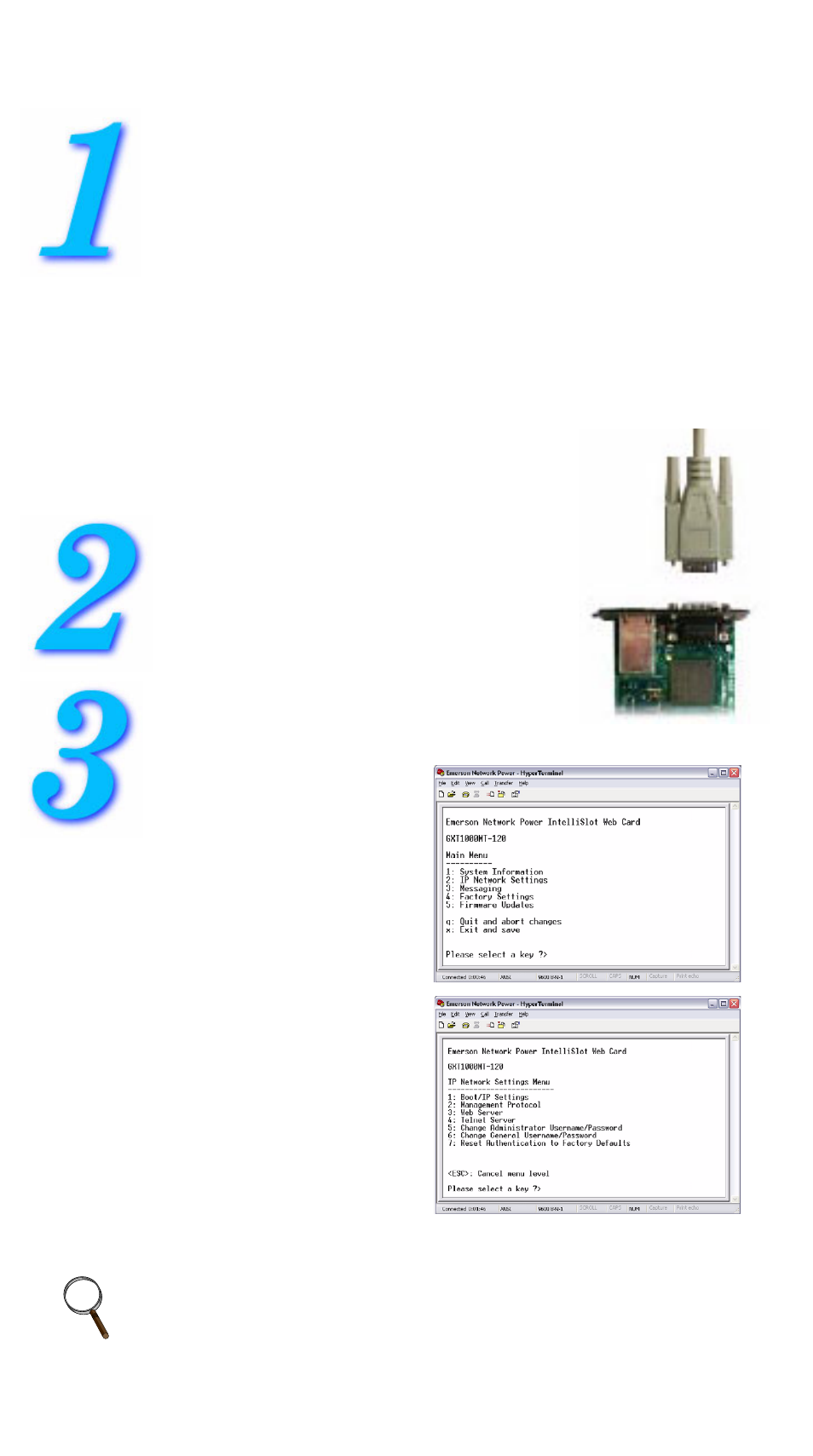

Quick Start Guide
I
NSTALL
• Locate the Intellislot option bay on your Liebert equipment—You
might need to remove a plastic cover.
• Insert the IntelliSlot Web Card into the Intellislot bay.
• Secure the card with the supplied screws.
• Connect an Ethernet cable.
DHCP: The card ships with DHCP service enabled. The MAC
address is printed on a sticker affixed to the top of the card.
OR
Static IP: To assign a static IP address, use the
Service Terminal to configure the card. Proceed
to Steps 2 & 3.
C
ONNECT THE
C
ABLE
• Locate the blue serial configuration cable (null
modem) that shipped with the card.
• Connect the configuration cable to the DB-9 port
on the card and to a COM port on your PC.
C
ONFIGURE THE
C
ARD
• Use terminal emulation software,
such as HyperTerminal
™
, to open a
direct connection to the card.
• Press Enter for the Main Menu,
above right.
• Select option 2 and follow the
instructions to enter an IP
ADDRESS, NETMASK and GATE-
WAY.
• Press Esc to return to the Main
Menu.
• Enter X and press Enter to exit
HyperTerminal and save your changes.
Baud Rate: 9600
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control: None
NOTE
When installing the card in a Liebert NX
™
, configure the
communication port of NX to 2400 baud. Refer to the NX user
manual for instructions.
