Liebert DS Dimensions and Weights
22

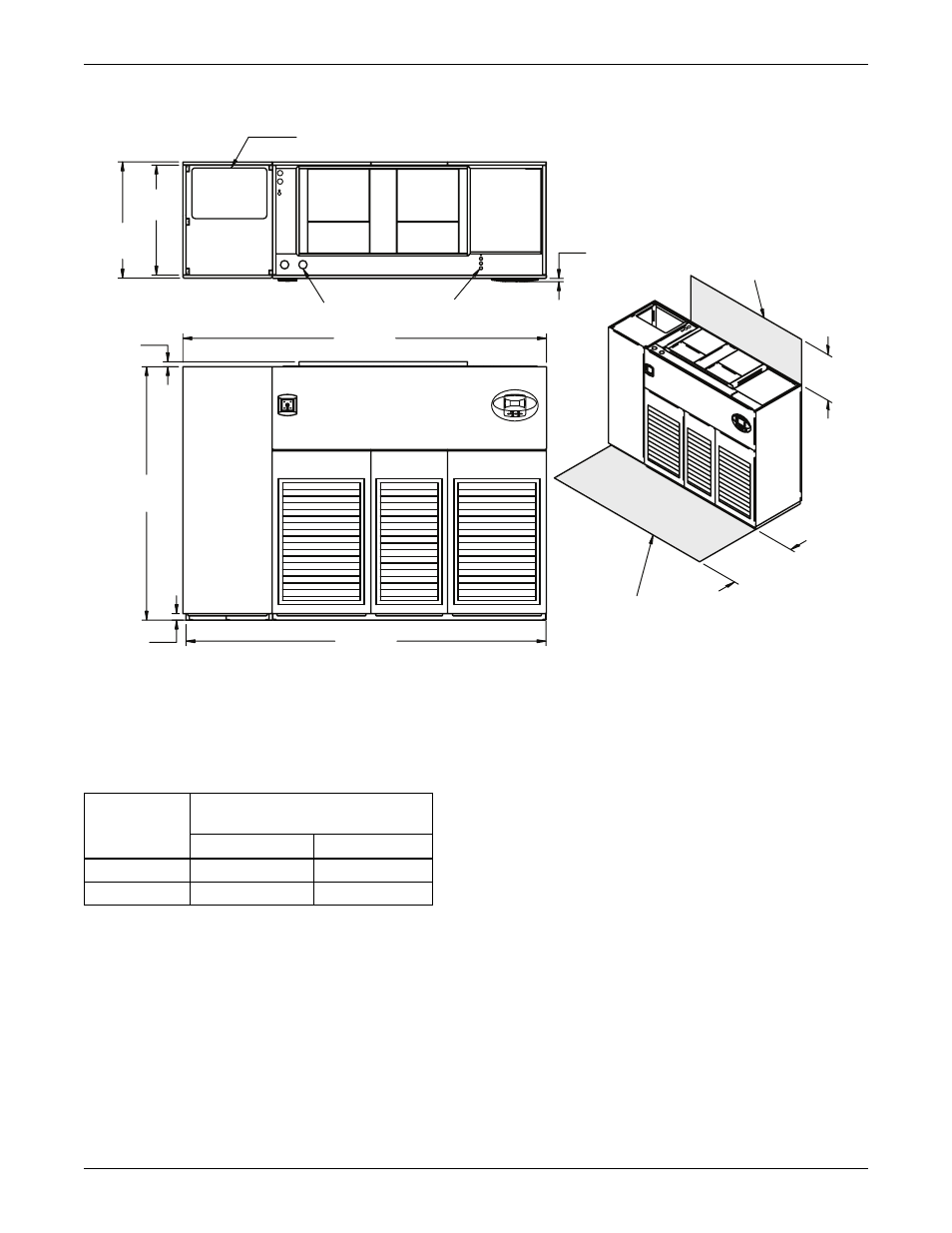

Figure 17 Cabinet and floor planning dimensions—upflow, air-cooled, 53-77kW (15-22 ton), semi-hermetic
compressor models
Table 14 Weights for upflow, air-cooled, 53-77kW (15-22 ton), semi-hermetic compressor models
Model
Dry Weight, lb (kg)
approximate
053 070, 077
Air -Cool ed 2350 (1069) 2500 (1134)
Dual -Cool 2530 (1150) 2680 (1216)
DPN001165
Rev. 1
Top View
Front View
High Volt Connection(s)
Alternate Refrigerant
Piping Entrance
Low Volt Connection(s)
Shaded area indicates a
recommended minimum
clearance for component
access.
3/4"
(19mm)
Bezels
35"
(889mm)
33"
(838mm)
76"
(1930mm)
2"
(51mm)
109"
(2769mm)
108"
(2743mm)
1-1/2"
(38mm)
24"
(610mm)
34"
(864mm)
Minimum required
for blower replacement
Note: Front air return unit shown. For rear return unit,
in addition to front service area shown, also include
25" (635mm) on one side of unit for access to rear return
filter box. See DPN001196, Figure 28.
