Life Fitness G3 User Manual
Page 26
25
S
TEP
18:

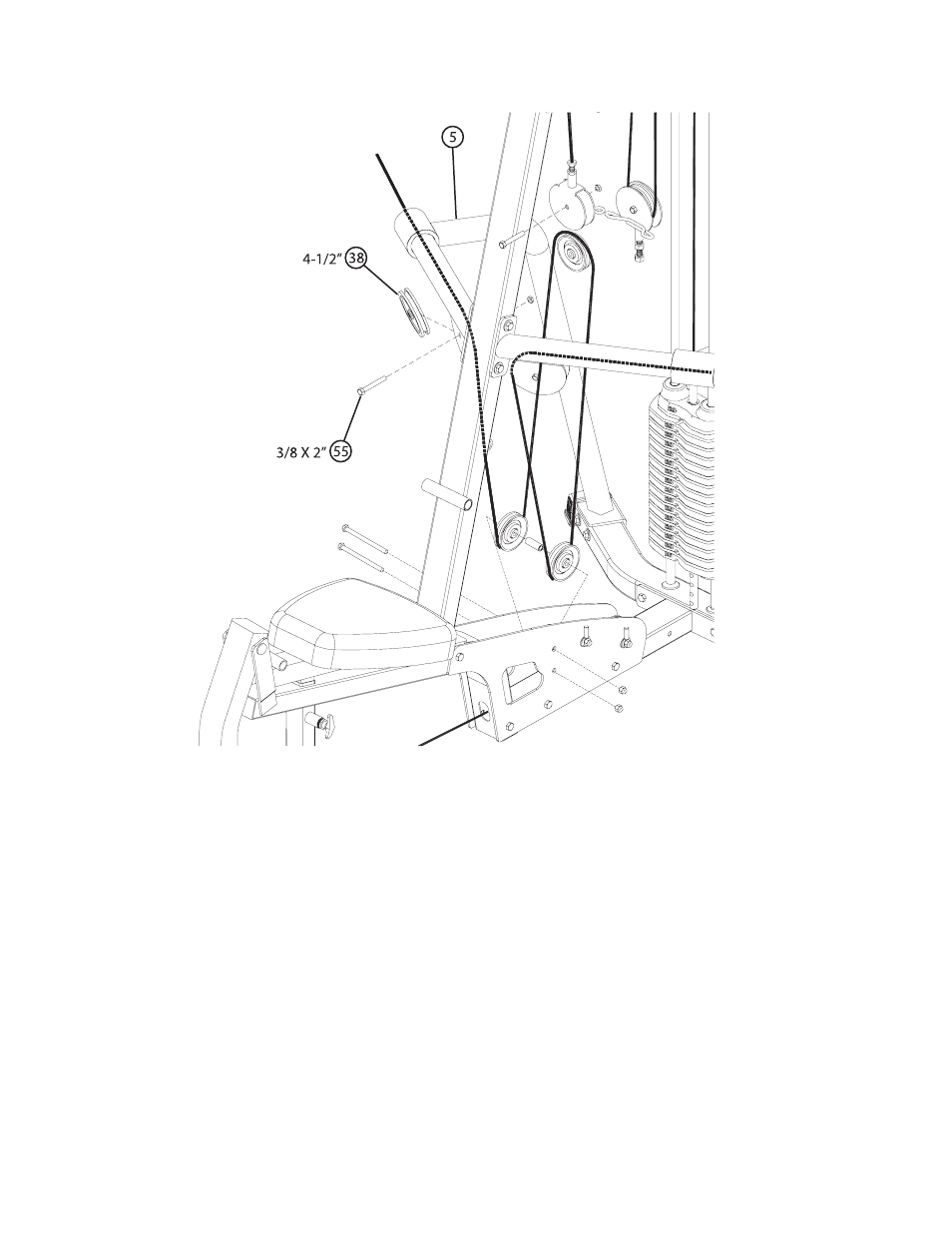

• Route the ARM CABLE (31) through the RIGHT ARM (5) as shown in Figure 18.
• Loop the ARM CABLE (31) around one 4-1/2" PULLEY (38).
• Securely assemble the 4-1/2" PULLEY (38) with the ARM CABLE (31) around it to the RIGHT
ARM (5), using one 3/8 x 2" BOLT (55) and one 3/8" SILVER LOCK NUT (63).
F
IGURE
18
