24
S
TEP
17:

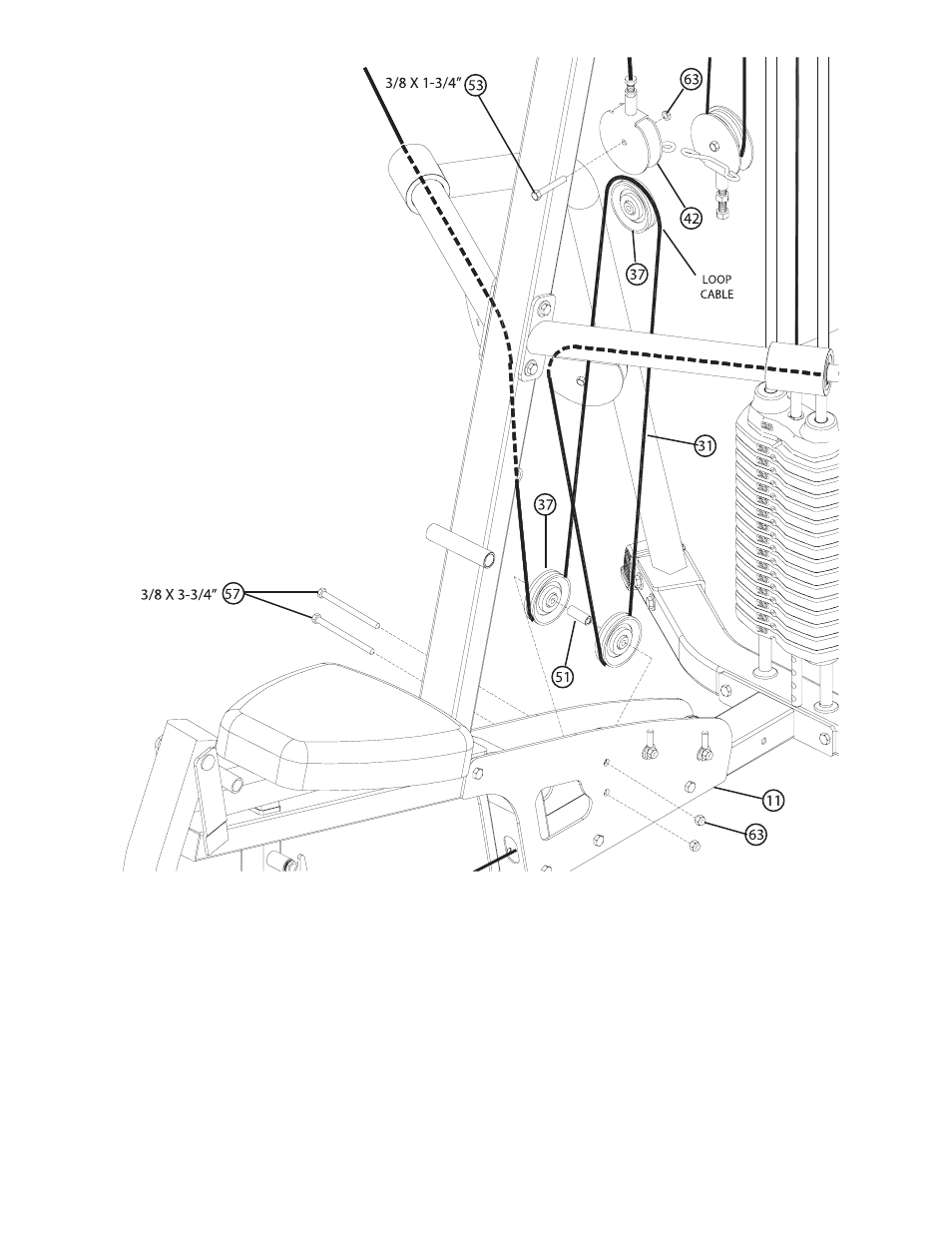

• Securely assemble two 3-1/2" PULLEYS (37) to the BASE PLATES (11), using two 3/8 x 3-3/4"
BOLTS (57), one 3/8 x 1" SPACER (51) and two 3/8" SILVER LOCK NUTS (63).
• Loop the ARM CABLE (31) between the two PULLEYS (37) around one 3-1/2" PULLEY (37) as
shown in Figure 17.
• Securely assemble the 3-1/2" PULLEY (37) with the Arm Cable (31) around it to the GUIDE
BRACKET (42), using one 3/8 x 1-3/4" BOLT (53) and one 3/8" SILVER LOCK NUT (63).
F
IGURE
17
